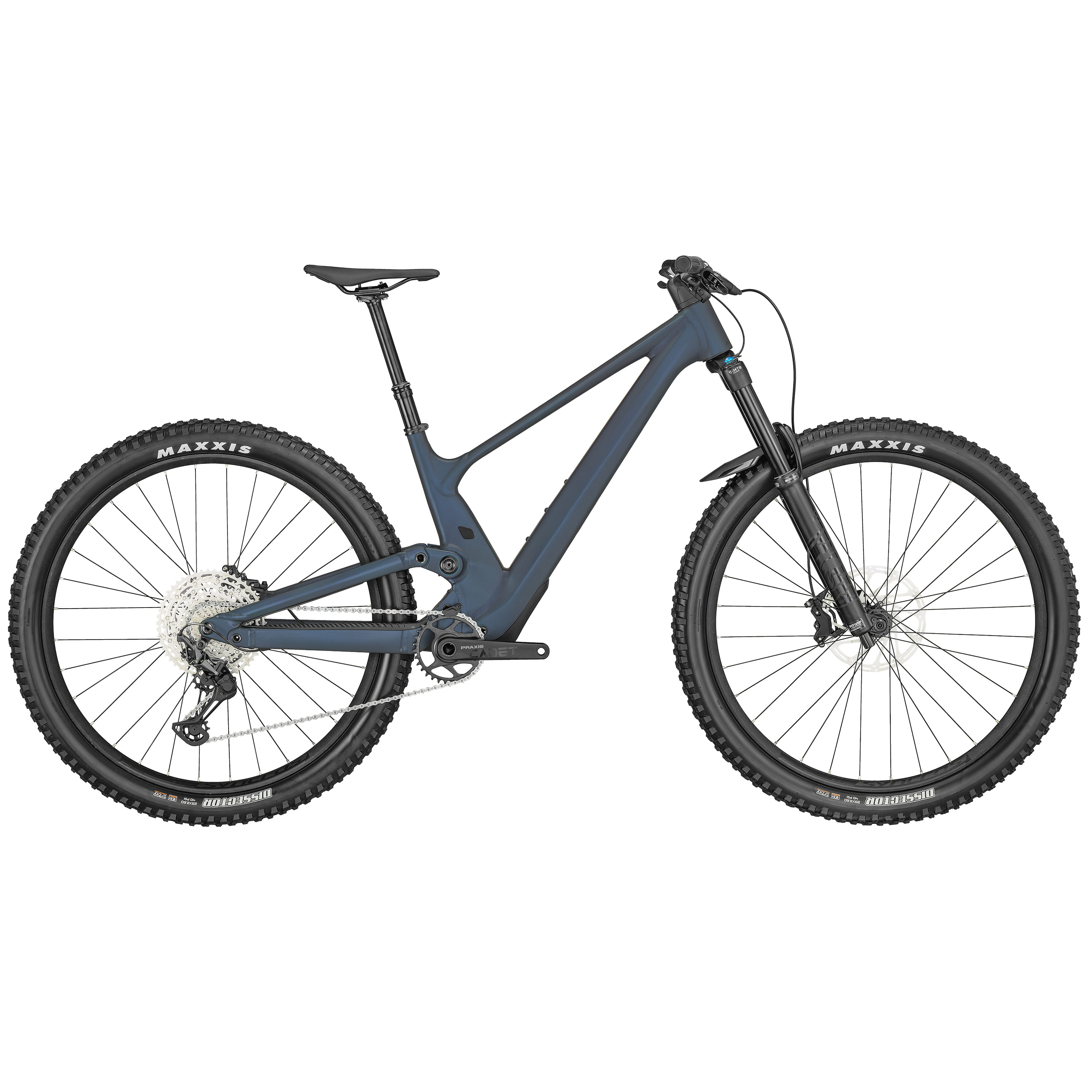

Genius 930 Bike - 2024

Tech Specs

• Frameset
  • Frame
    Genius Alloy 6061, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline
• Suspension
  • Rear Shock
    FOX Float Custom EVOL Performace Trunnion, 3 modes / Lockout-Trail-Descend DPS / Reb. Adj., Travel 150mm / T185X55mm
  • Fork
    FOX 36 Float Rhythm Air Grip, 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 160mm travel
• Brakes
  • Brakes
    SRAM DB8 4 Piston Disc
  • Rotor
    SRAM Centerline CL Rotors 200/F and 180/R
• Drivetrain
  • Shifters
    Shimano Deore SL-M6100-R / Rapidfire Plus
  • Rear Derailleur
    Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed
  • Cassette
    Shimano Deore CS-M6100-12 / 10-51 T
  • Chain
    Shimano Deore CN-M6100
  • Crankset
    Praxis Cadet M24HD, 55mm CL / 32T
  • Bottom Bracket
    Praxis M24 BB92 / shell 41x92mm
• Wheels & Tires
  • Hub Front
    Formula CL-811 / 15x110mm
  • Hub Rear
    Formula CL-148M / 12x148mm
  • Rims
    Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready
  • Tires
    Maxxis Dissector / 60TPI Foldable Tubeless Ready / EXO
  • Spokes
    Stainless Black 15G / 1.8mm
• Cockpit
  • Remote System
    SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
  • Stem
    Syncros AM 2.0, Syncros Cable Integration System, 4 degree rise / 6061 Alloy / 31.8mm / 1 1/8"
  • Handlebar
    Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 8° / 780mm, Syncros Endurance lock-on grips
  • Seatpost
    Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size, 150mm / L & XL size 170mm
  • Headset
    Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
• Other
  • Chainguide
    SCOTT Custom
  • Seat
    Syncros Tofino 2.5 Regular
  • Extras
    Syncros Fork Fender
