Marlin 7 Gen 3 Bike - 2026

Tech Specs

• Frameset
  • Frame
    (Size XS) Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Frame
    (Size S , M , ML , L , XL , XXL) Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
• Suspension
  • Fork
    (Size XS, S) RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Fork
    (Size M , ML , L , XL , XXL) RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
• Brakes
  • Brake Set
    Shimano MT200 hydraulic disc
  • Brake Rotor
    (Size XS , S , M , ML , L , XL , XXL) Shimano RT26, 6-bolt, 160mm
  • Brake Rotor
    (Size M , ML , L , XL , XXL) Shimano RT26, 6-bolt, 180mm
  • Brake
    Shimano MT200 hydraulic disc

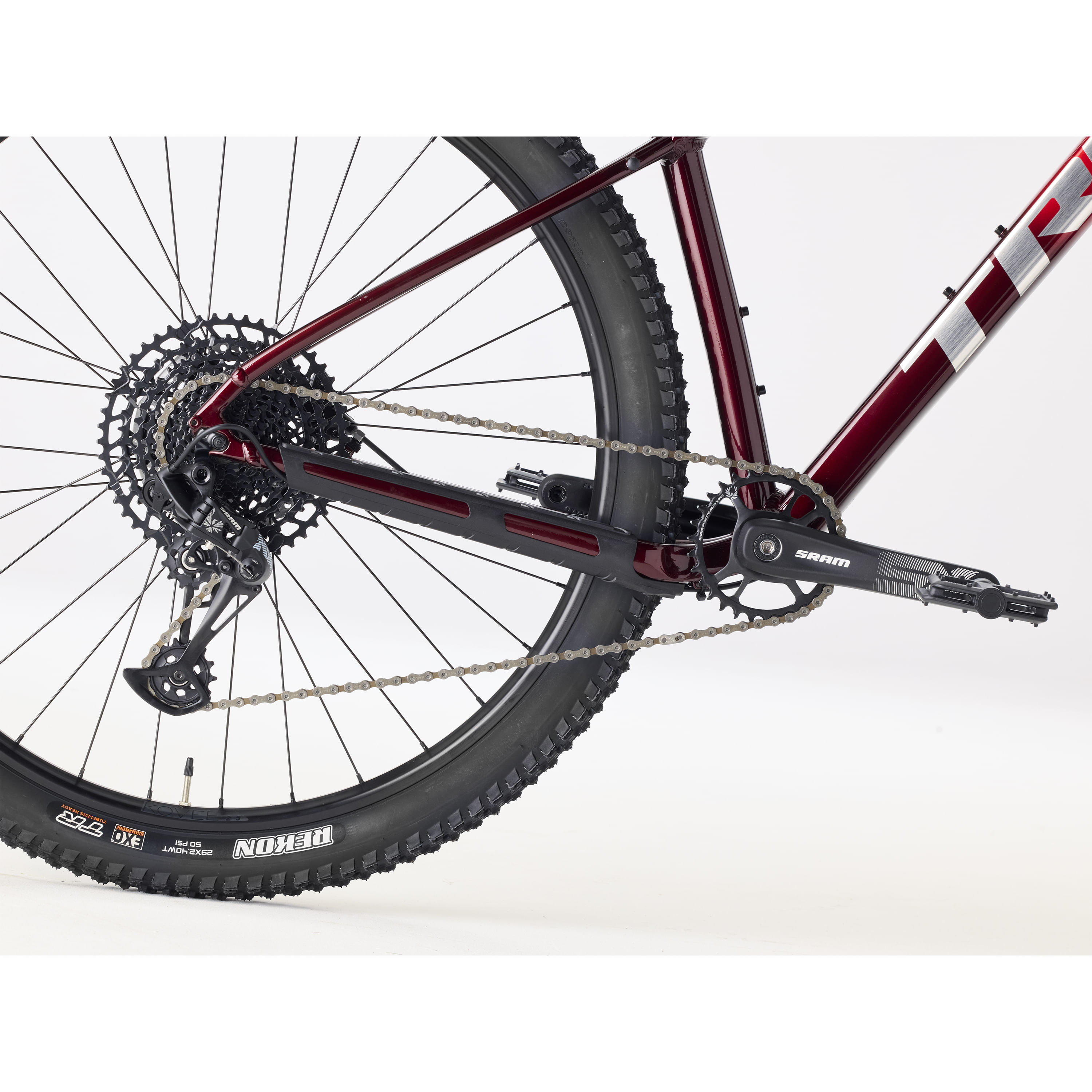

• Drivetrain
  • Rear Derailleur
    SRAM NX Eagle, 12 speed
  • Cassette
    SRAM PG-1210 Eagle, 11-50, 12 speed
  • Chain
    SRAM SX Eagle, 12 speed
  • Pedal
    VP-536 nylon platform
  • Shifter
    SRAM SX Eagle, 12 speed
  • Crank
    (Size XS, S, M) SRAM SX Eagle, 30T steel ring, 49mm chainline, 170mm length
  • Crank
    (Size ML , L , XL , XXL) SRAM SX Eagle, 30T steel ring, 49mm chainline, 175mm length
  • Bottom Bracket
    Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
• Wheels & Tires
  • Hub Front
    Formula DC-20 LW, alloy, 6-bolt, 100x5mm
  • Hub Rear
    Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
  • Skewer Rear
    173x5mm QR
  • Rim Strip
    Bontrager TLR
  • Tire
    (Size XS, S) Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''
  • Tire
    (Size M , ML , L , XL , XXL) Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''
  • Rim
    (Size XS , S , M , ML , L , XL , XXL) Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
  • Rim
    (Size M , ML , L , XL , XXL) Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
• Cockpit
  • Stem
    (Size XS, S) Bontrager Comp, 31.8mm, 7 degree, 35mm length
  • Stem
    (Size M , ML , L) Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Stem
    (Size XL) Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • Stem
    (Size XXL) Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • Handlebar
    (Size XS) Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Handlebar
    (Size S) Bontrager alloy, 31.8mm, 15mm rise, 720mm width
  • Handlebar
    (Size M , ML , L , XL , XXL) Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost
    (Size XS, S) TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
  • Seatpost
    (Size M) TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
  • Seatpost
    (Size ML, L) TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
  • Seatpost
    (Size XL , XXL) TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
  • Headset
    Semi-integrated, 1-1/8"
• Weight
  • Weight
    31.2 lbs
