Trek

Trek Rail 5 Gen 2 E-Bike - 2022

ID:

899694

$4,099.99
Color:
  • Wheel Size
  • Frame Size

Trek Rail 5 Gen 2 E-Bike - 2022

Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as the analog trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.

Features

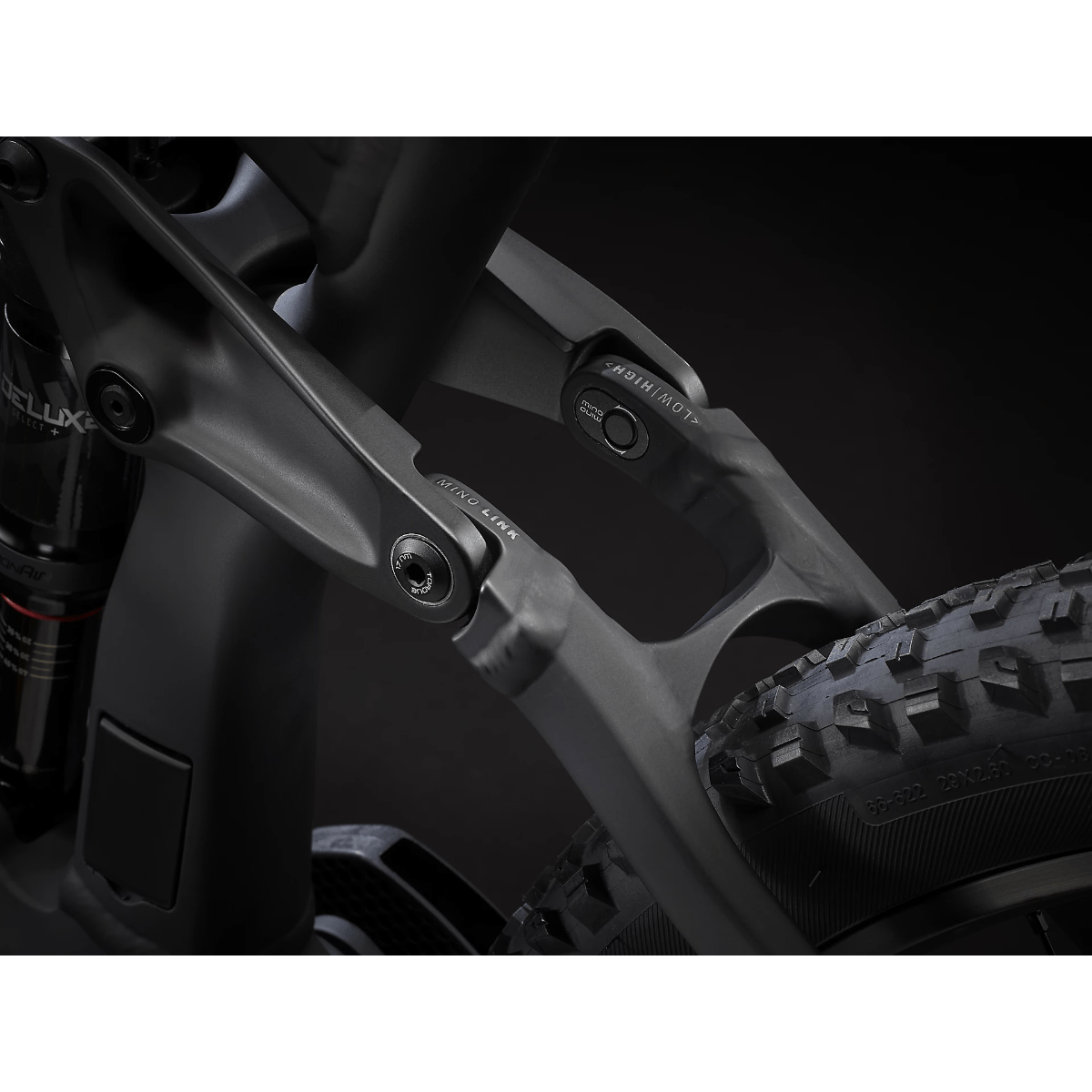

  • Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness, and Active Braking Pivot (ABP)
  • Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

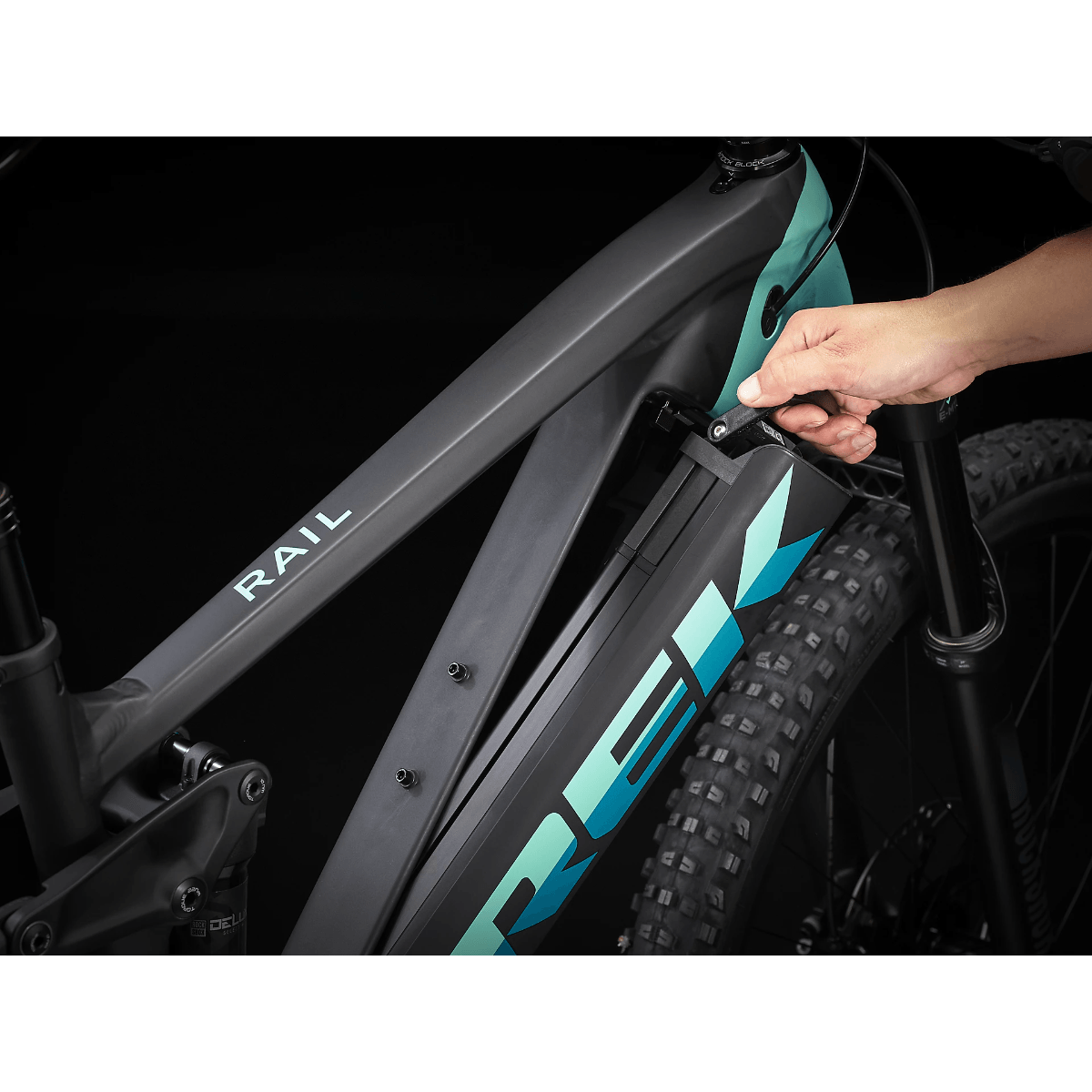

  • Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
  • The dropper post lets you lower your saddle on the fly so it's out of the way on descents

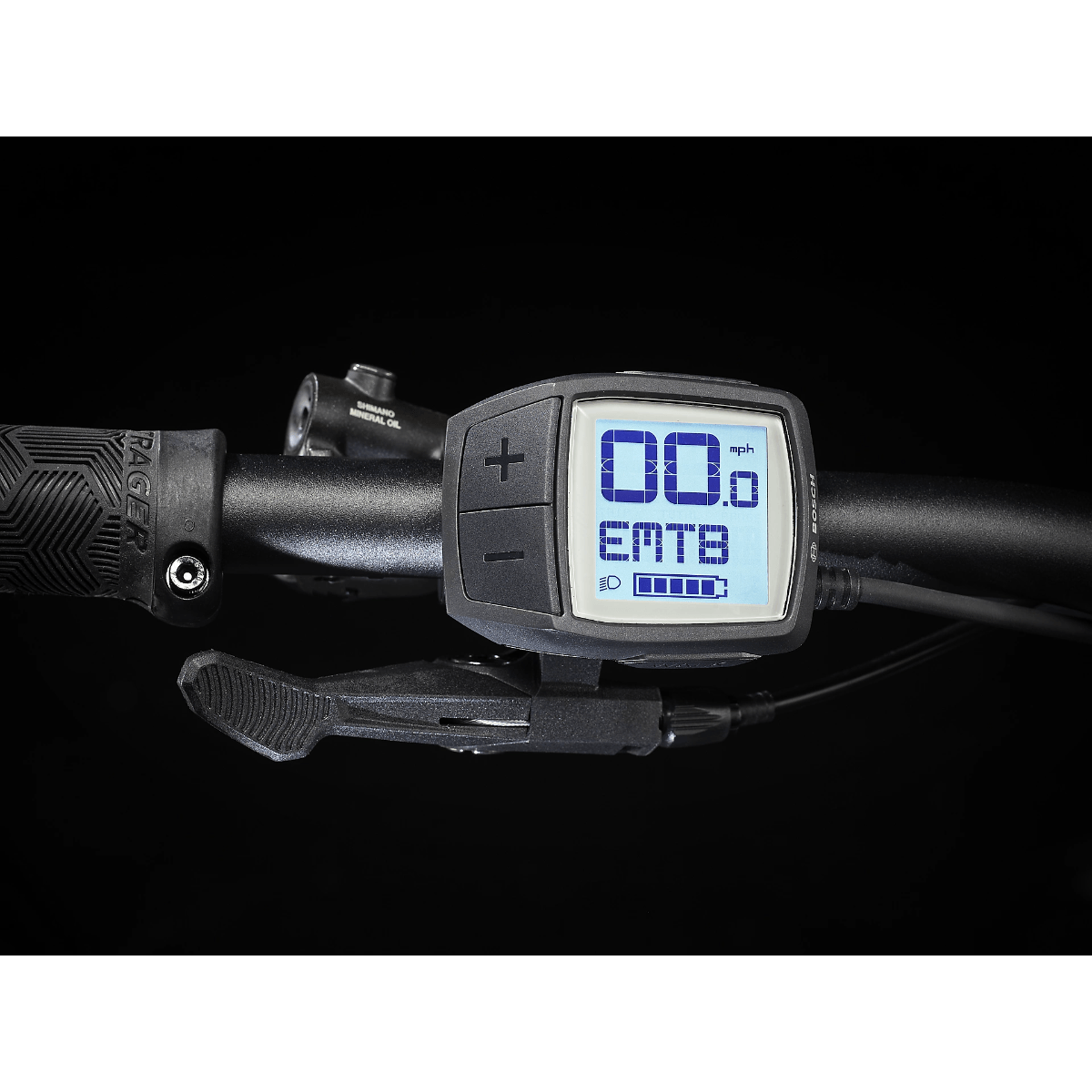

  • The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
  • A burly alloy frame with 150mm of rear travel that fully encases a 500Wh battery, and an e-MTB optimized 160mm RockShox 35 Gold RL fork
  • 1x12 drivetrain with a wide gear range so you can always find the ideal cadence for the motor
  • Weight (Size M) - 23.88 kg / 52.65 lbs

Details

  • Brake rotor: Shimano RT76, 6-bolt, 203mm
  • Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
  • Cassette: Shimano Deore M6100, 10-51, 12 speed
  • Chain: Shimano Deore M6100, 12 speed
  • Charger: Bosch compact 2A (100-240V) charger
  • Controller: Bosch Purion
  • Crank arm: E*thirteen E*spec Plus, 34T, 165mm length
  • Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Grips: Bontrager XR Trail Comp, nylon lock-on
  • Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Headset: Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
  • Hub rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle

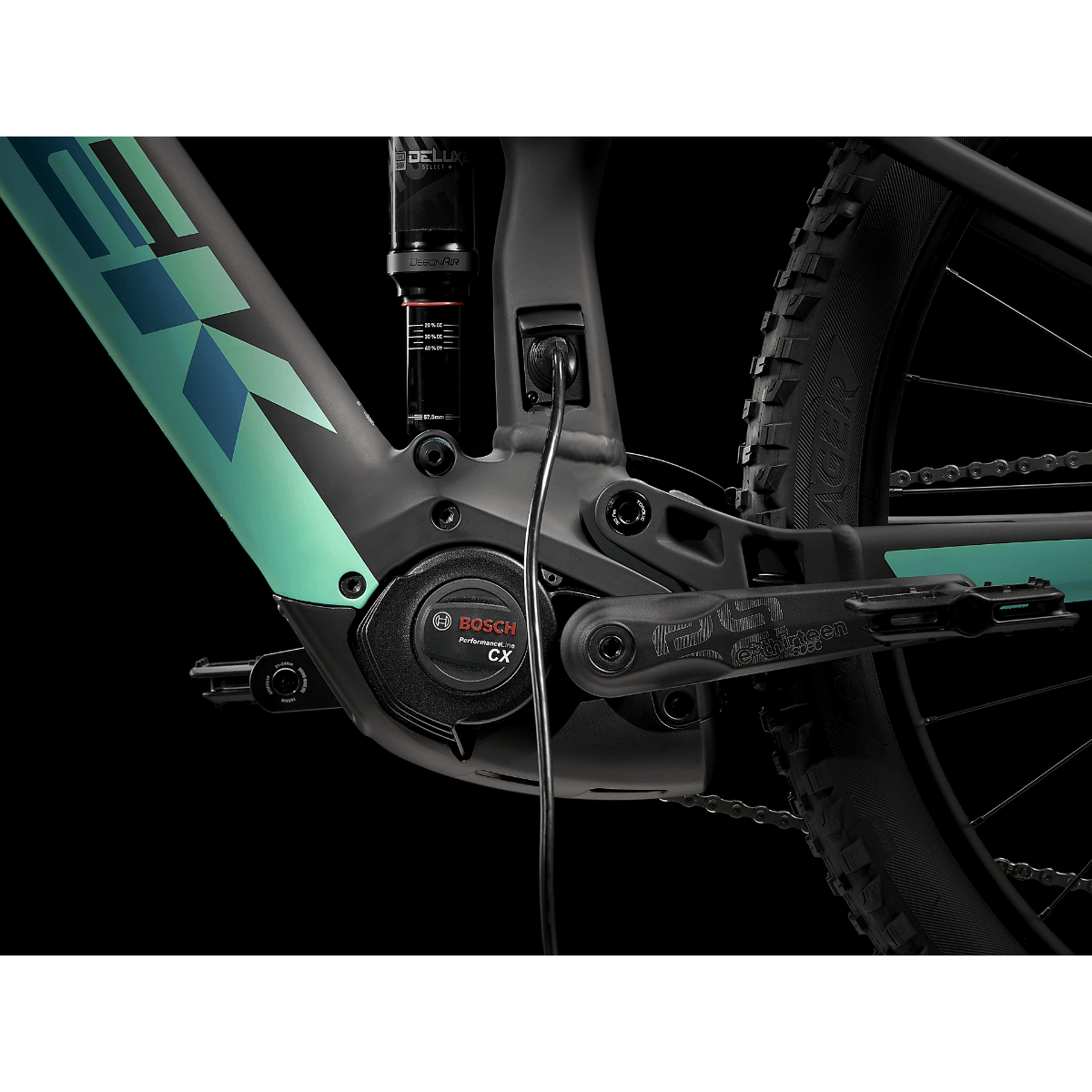

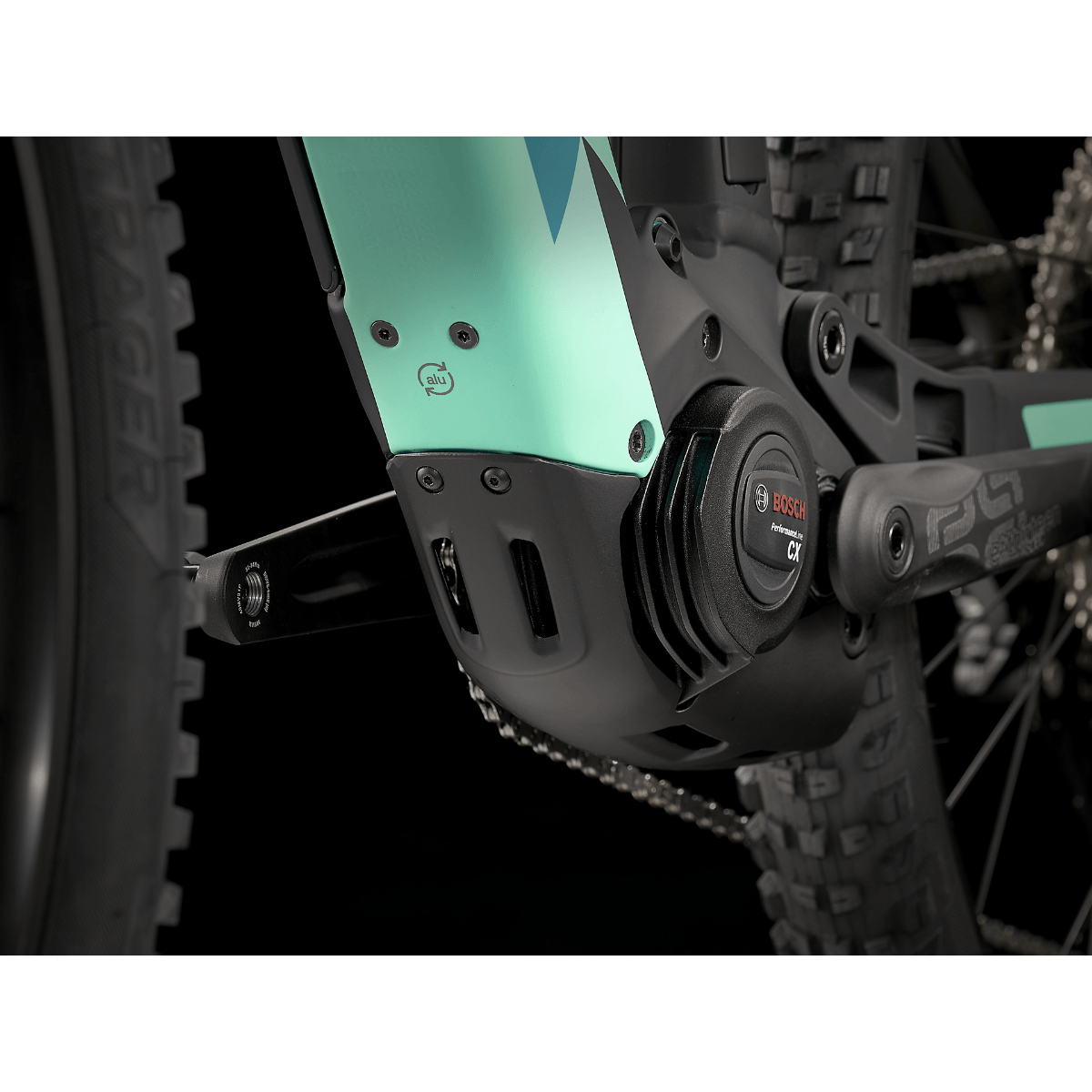

  • Motor: Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
  • Pedal: VP-536 nylon platform

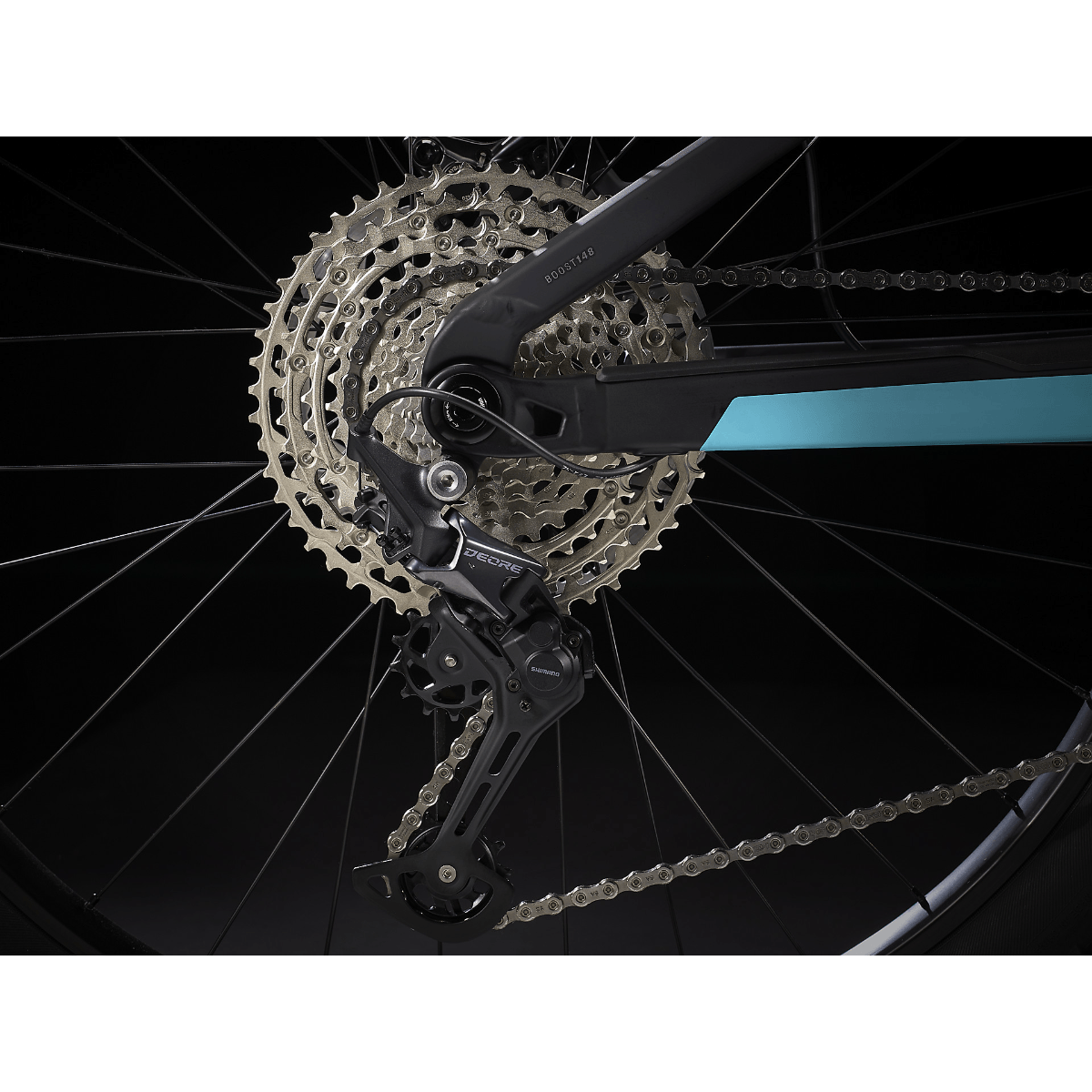

  • Rear derailleur: Shimano Deore M6100, long cage
  • Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
  • Saddle: Bontrager Arvada, steel rails, 138mm width
  • Seatpost:Size: S - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm lengthSize: M, L, XL - TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
  • Shifter: Shimano Deore M6100, 12 speed
  • Shock: RockShox Deluxe Select+, 230x57.5mm
  • Size: M, L, XL - TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
  • Size: S - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
  • Skewer rear: Bontrager Switch thru axle, removable lever
  • Spokes: 14g stainless steel
  • Stem: Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
  • Seatpost:Size: S - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

Components

  • Frame - Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Fork - RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock - RockShox Deluxe Select+, 230mm x 57.5mm
  • Hub front - Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
  • Hub rear - Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
  • Skewer rear - Bontrager Switch thru axle, removable lever
  • Rim - Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
  • Spokes - 14g stainless steel, black

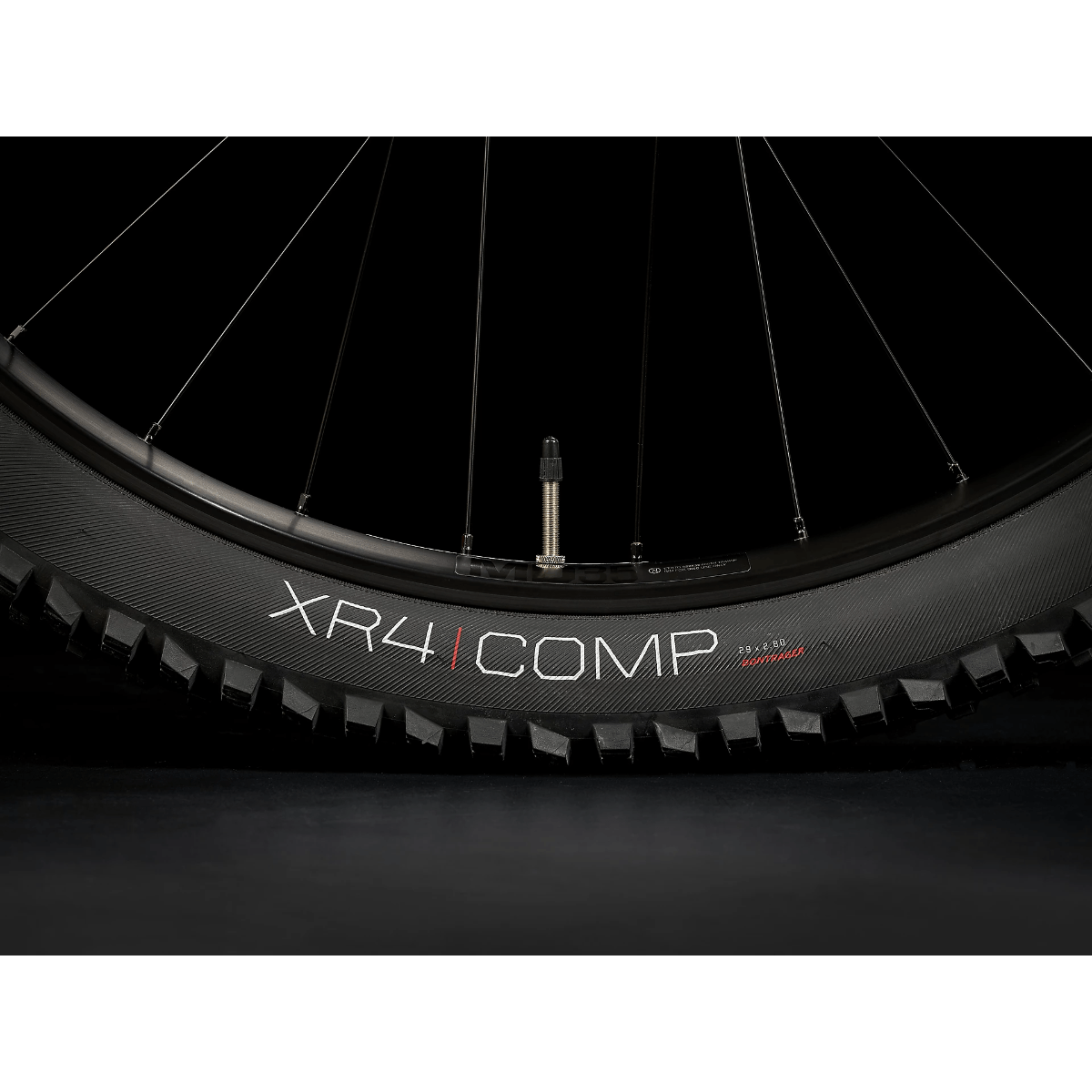

  • Tire - Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Battery - Bosch PowerTube 500Wh
  • Charger - Bosch compact 2A, 100-240V
  • Computer - Bosch Purion
  • Motor - Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
  • Shifter - Shimano Deore M6100, 12 speed
  • Rear derailleur - Shimano Deore M6100, long cage
  • Crank - E*thirteen E*spec Plus, 165mm length
  • Chainring - E*thirteen, 34T, steel
  • Cassette - Shimano Deore M6100, 10-51, 12 speed
  • Chain - Shimano Deore M6100, 12 speed
  • Saddle - Bontrager Arvada, steel rails, 138mm width
  • Seatpost (S) - TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
  • Seatpost (M, L) - TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
  • Handlebar - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Grips - Bontrager XR Trail Comp, nylon lock-on
  • Stem - Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
  • Headset - Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake - Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
  • Brake rotor - Shimano RT76, 6-bolt, 203mm
