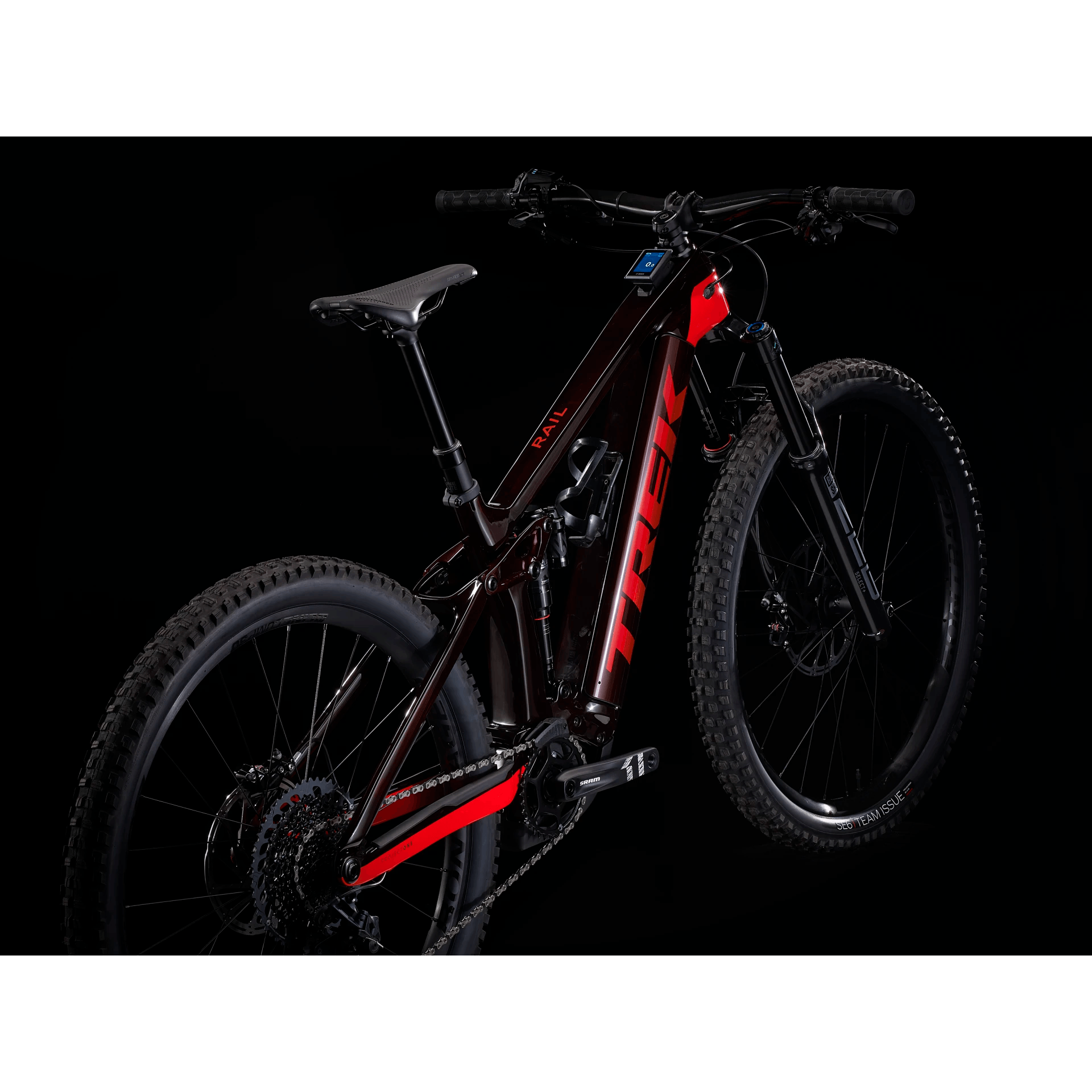

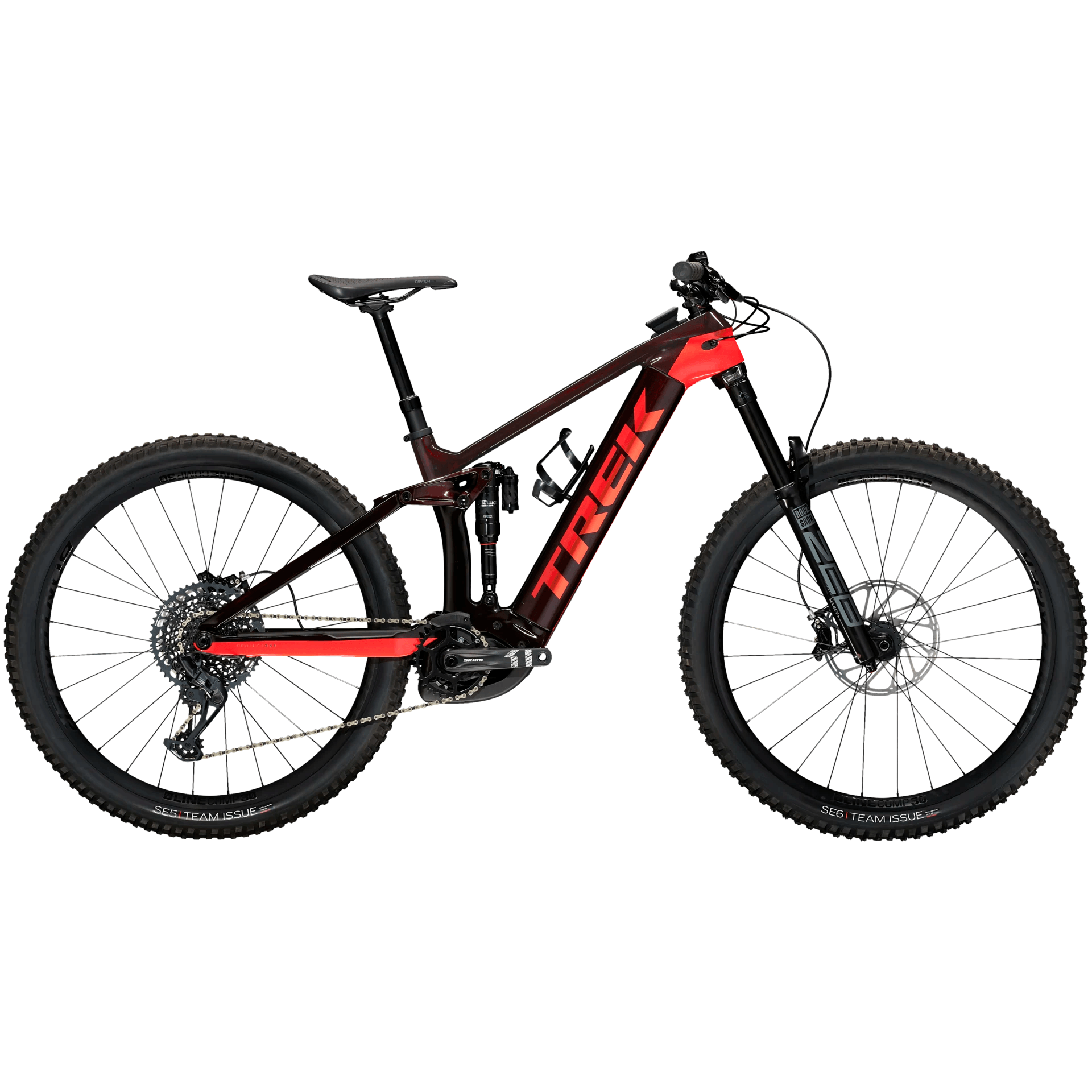

Trek Rail 9.8 Gx Gen 3 E-Bike - 2022

The Trek Rail 9.8 is a long-travel electric full suspension mountain bike that gets you to the fun stuff faster. It features an upgraded fork, drivetrain and dropper seat post for exceptional performance on the gnarliest runs. This e-MTB feels and rides just like Trek's rowdiest trail bikes, and it's built with the same trail-specific tech. The difference is that the powerful new Bosch drive system helps you fly up the climbs, so you can enjoy more time on the descents.It's built around a light and durable OCLV Mountain Carbon main frame with carbon stays that fully encases a 625Wh battery for sleek looks and protection on the trail. This gets a 160mm RockShox Zeb Select Plus fork with Charger 2 RC damper, 150mm of rear travel with a RockShox Deluxe RT3 shock with Thru Shaft damper, and a powerful new Bosch Performance Line CX motor with Purion controller. A 1x12 SRAM GX Eagle drivetrain, Bontrager Line Elite dropper post, SRAM Code R 4-piston brakes, a carbon handlebar and Bontrager Line Comp 30 29er wheels with Bontrager SE5 Team Issue tyres finish off the kit.This bike features across-the-board upgrades that make it a seriously capable high-performance ripper. It's built for hammering gnarly descents, then flying right back up again thanks to the powerful Bosch drive system.

Features

  • Bosch's new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customization at your fingertips
  • The full-color Kiox display shows ride info, connects with your Bluetooth enabled devices, and has a built-in theft prevention feature
  • RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
  • The new frame is extra stout with a 34.9mm seat tube to accommodate more robust dropper posts, and an oversized head tube that works with burly eMTB-optimized forks for less flex and more precise steering

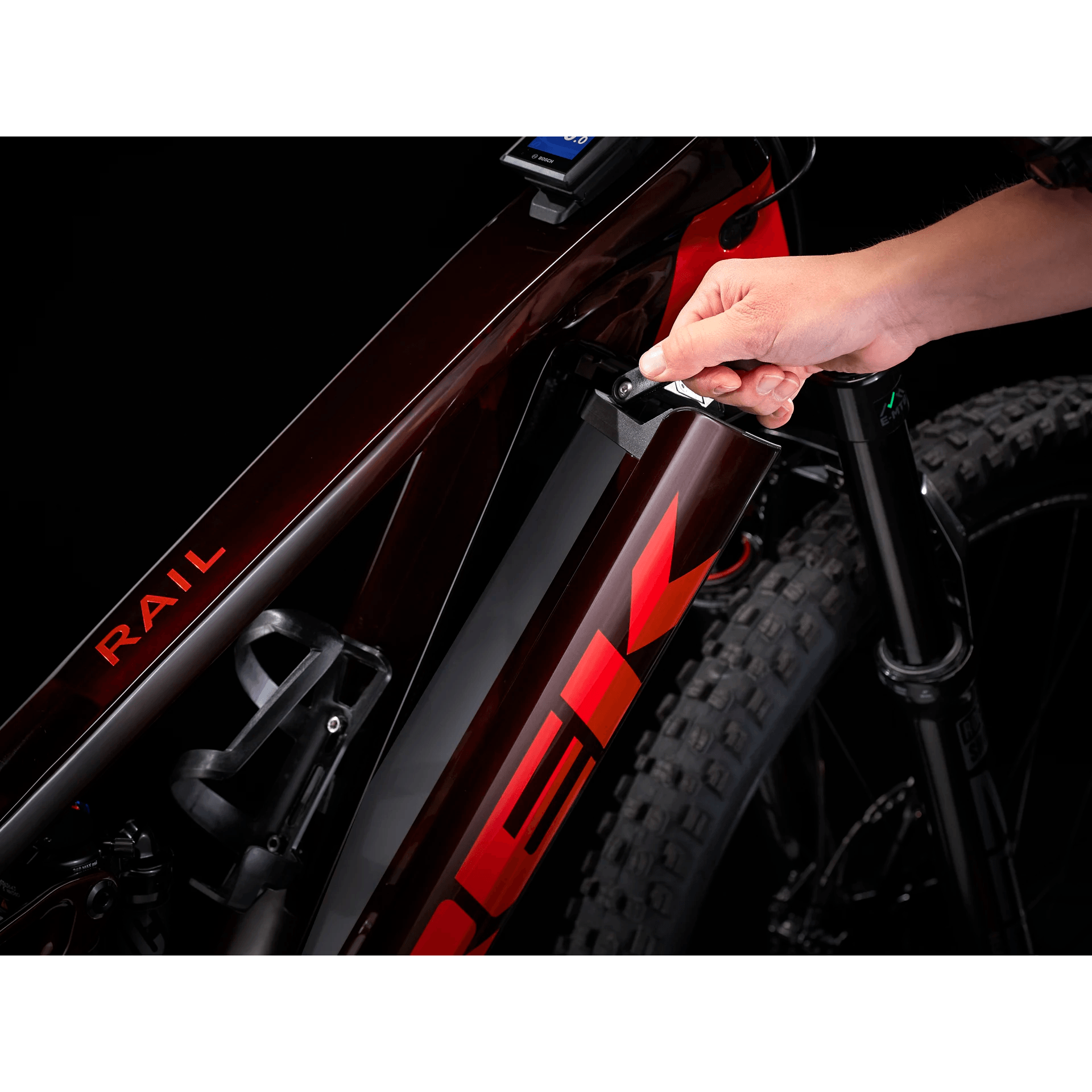

  • Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
  • Weight (Size M) - 23.45 kg / 51.7 lbs (with TLR sealant, no tubes)

Components

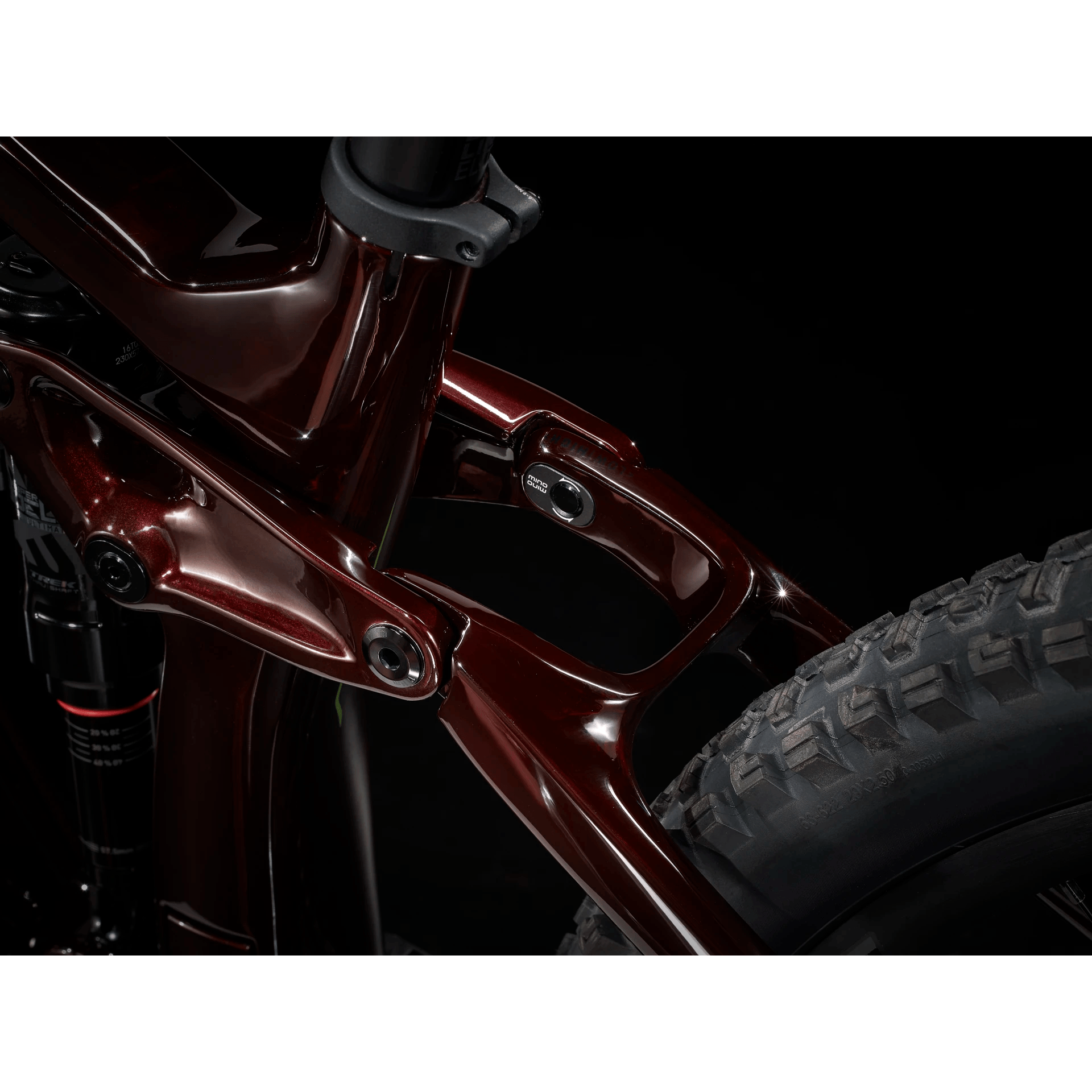

  • Frame - NEW OCLV Mountain Carbon main frame, 1.8" lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Fork - RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

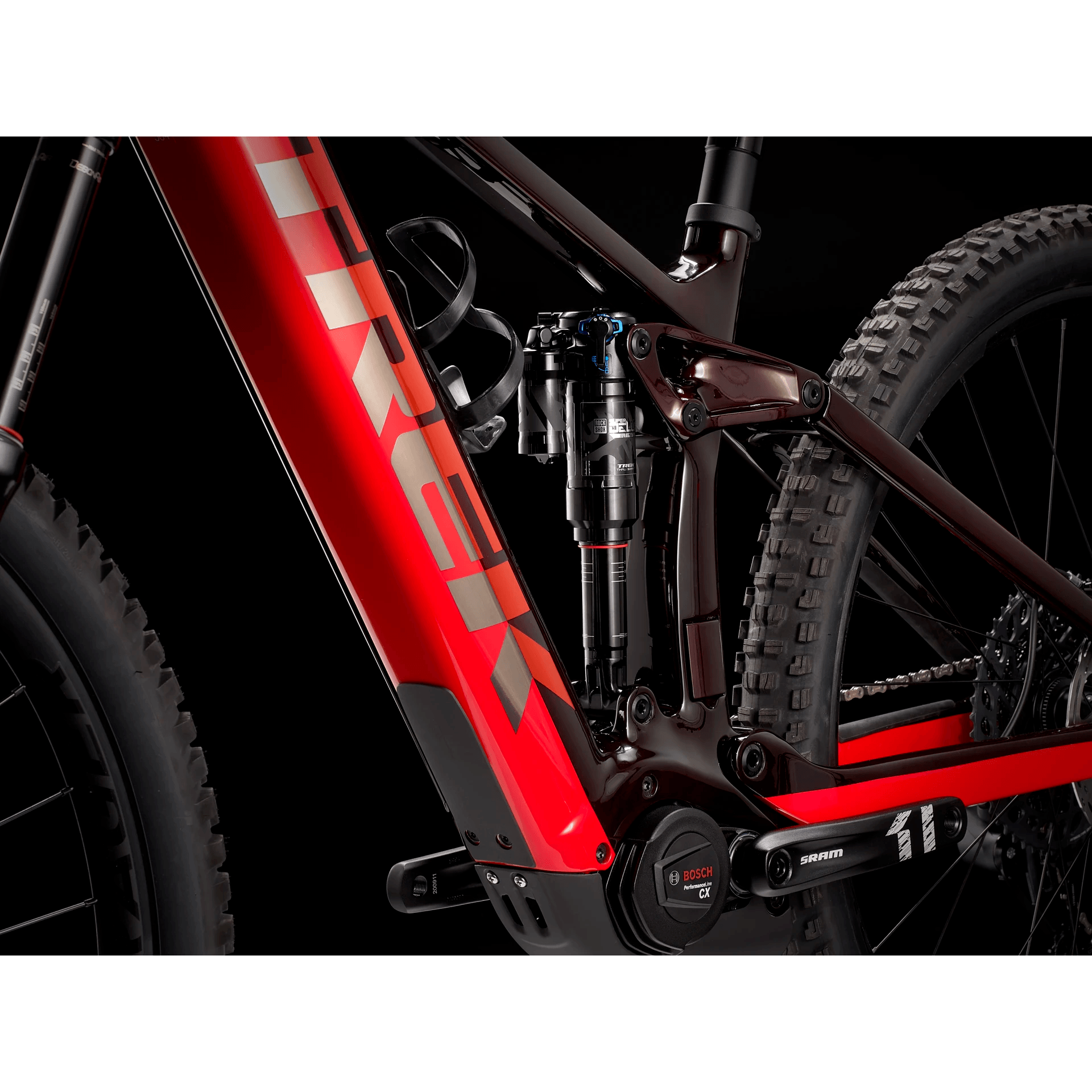

  • Shock - RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
  • Wheel front - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
  • Wheel rear - Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"
  • Skewer rear - Bontrager Switch thru axle, removable lever

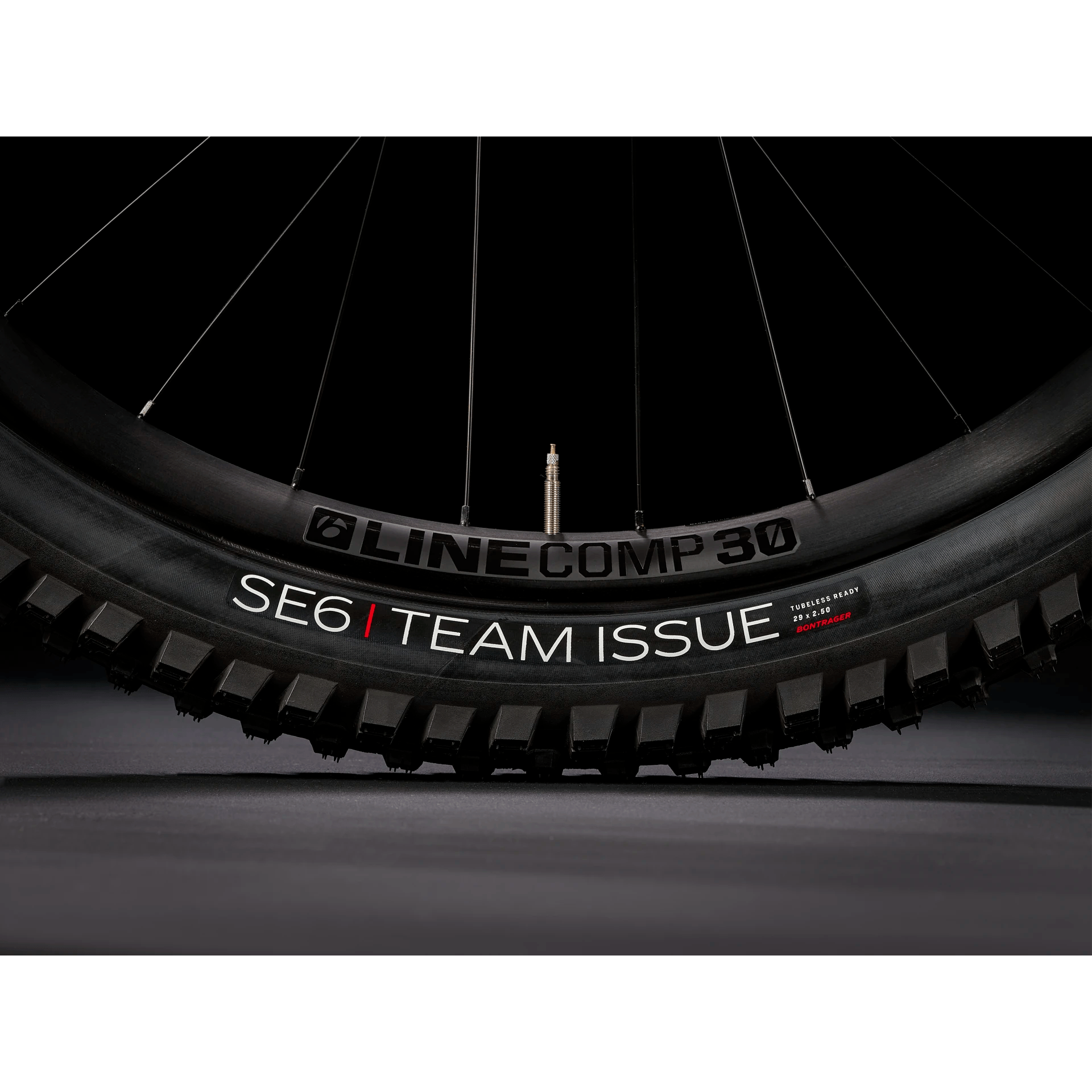

  • Tire - Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Battery - Bosch PowerTube 750Wh, smart system
  • Charger - Bosch standard 4A, 110V, smart system
  • Computer - Bosch Kiox 300, smart system

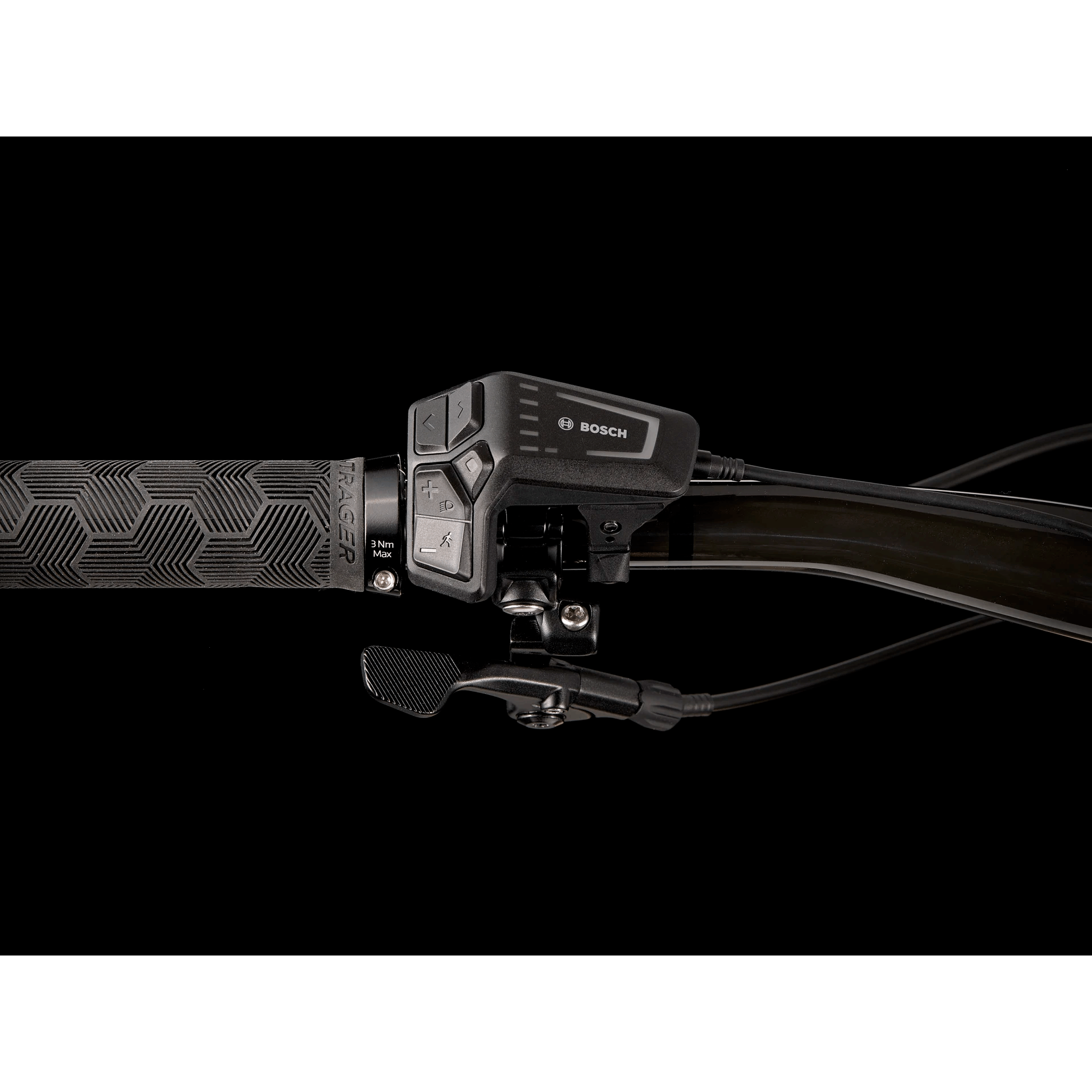

  • Computer - Bosch LED remote, smart system

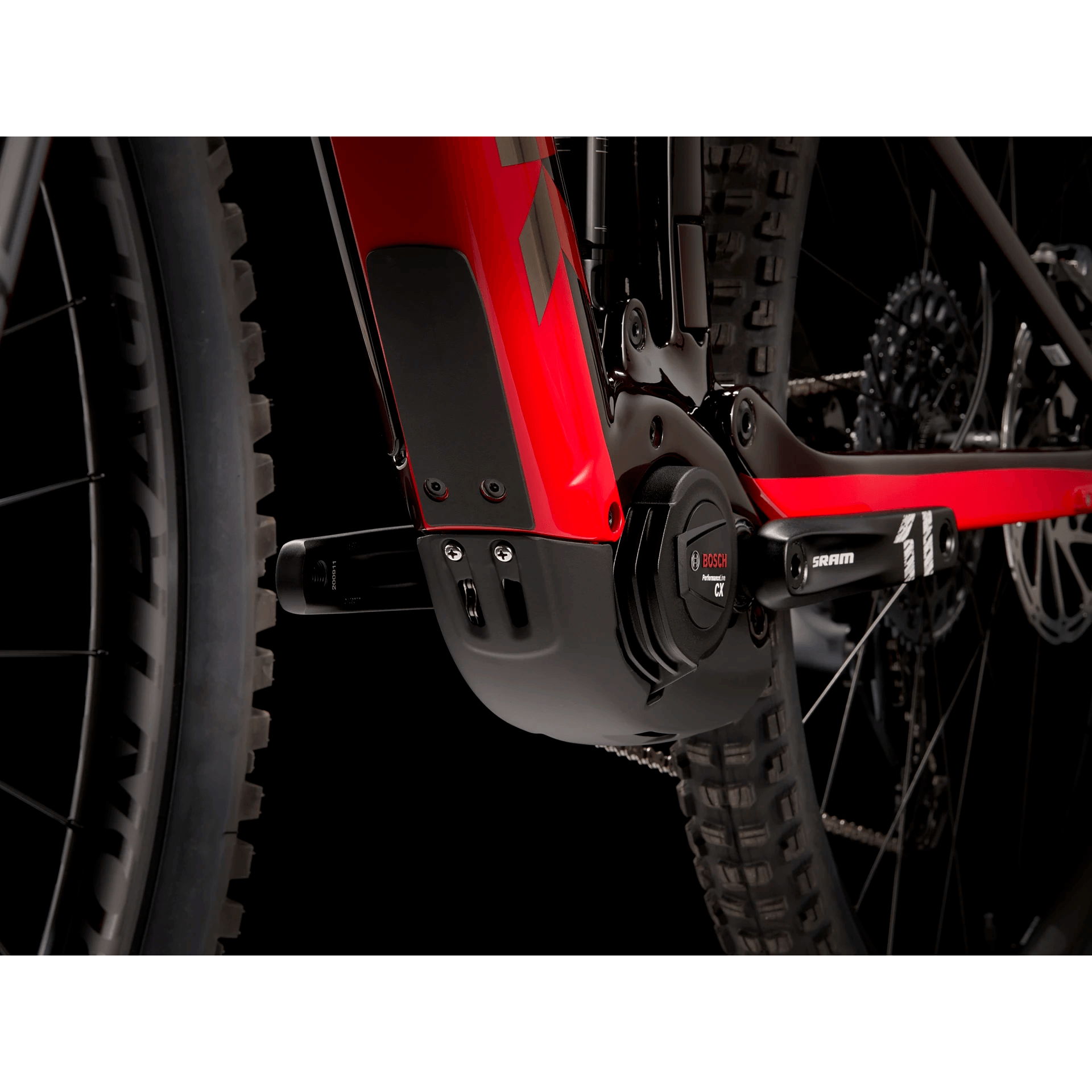

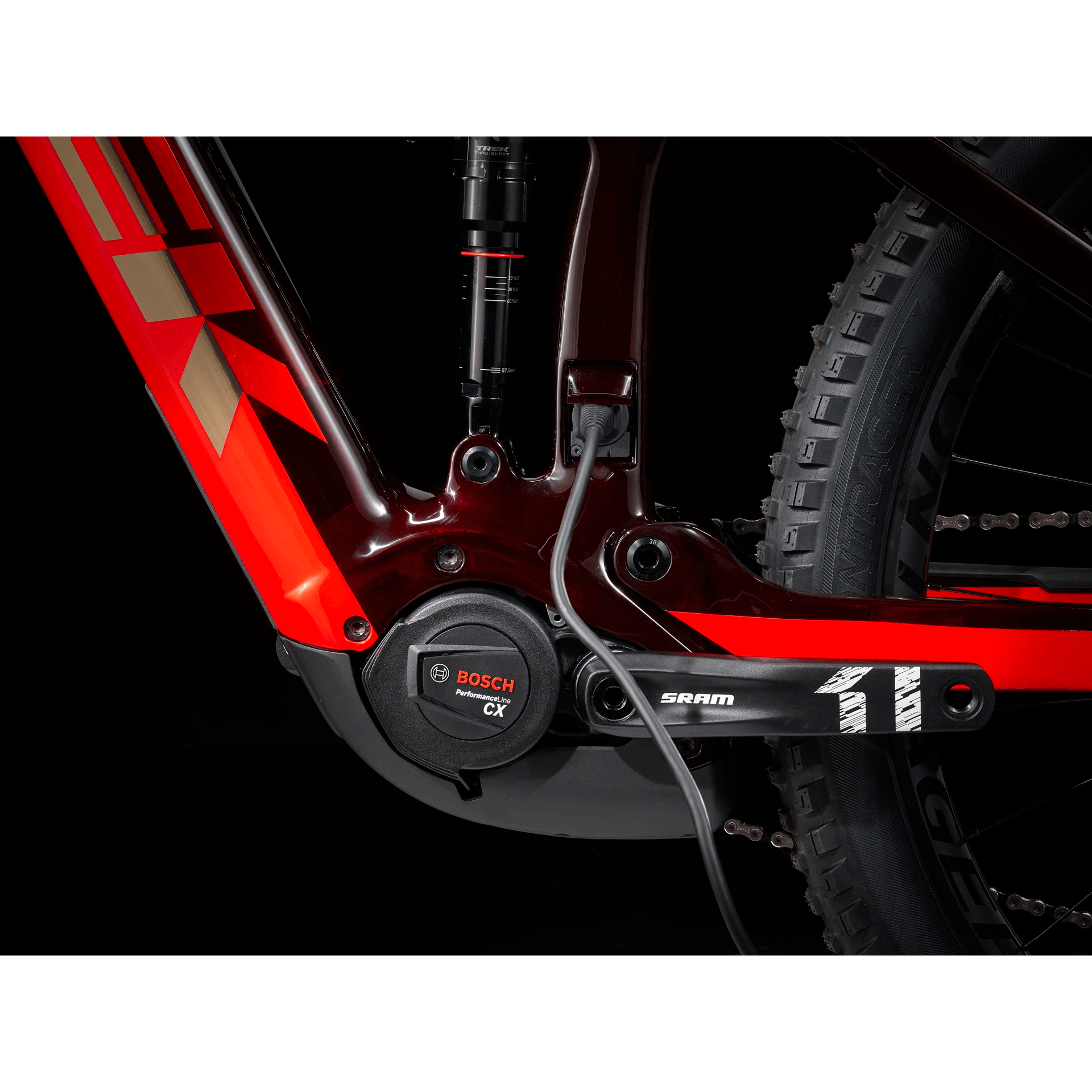

  • Motor - Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Shifter - SRAM GX Eagle, 12 speed

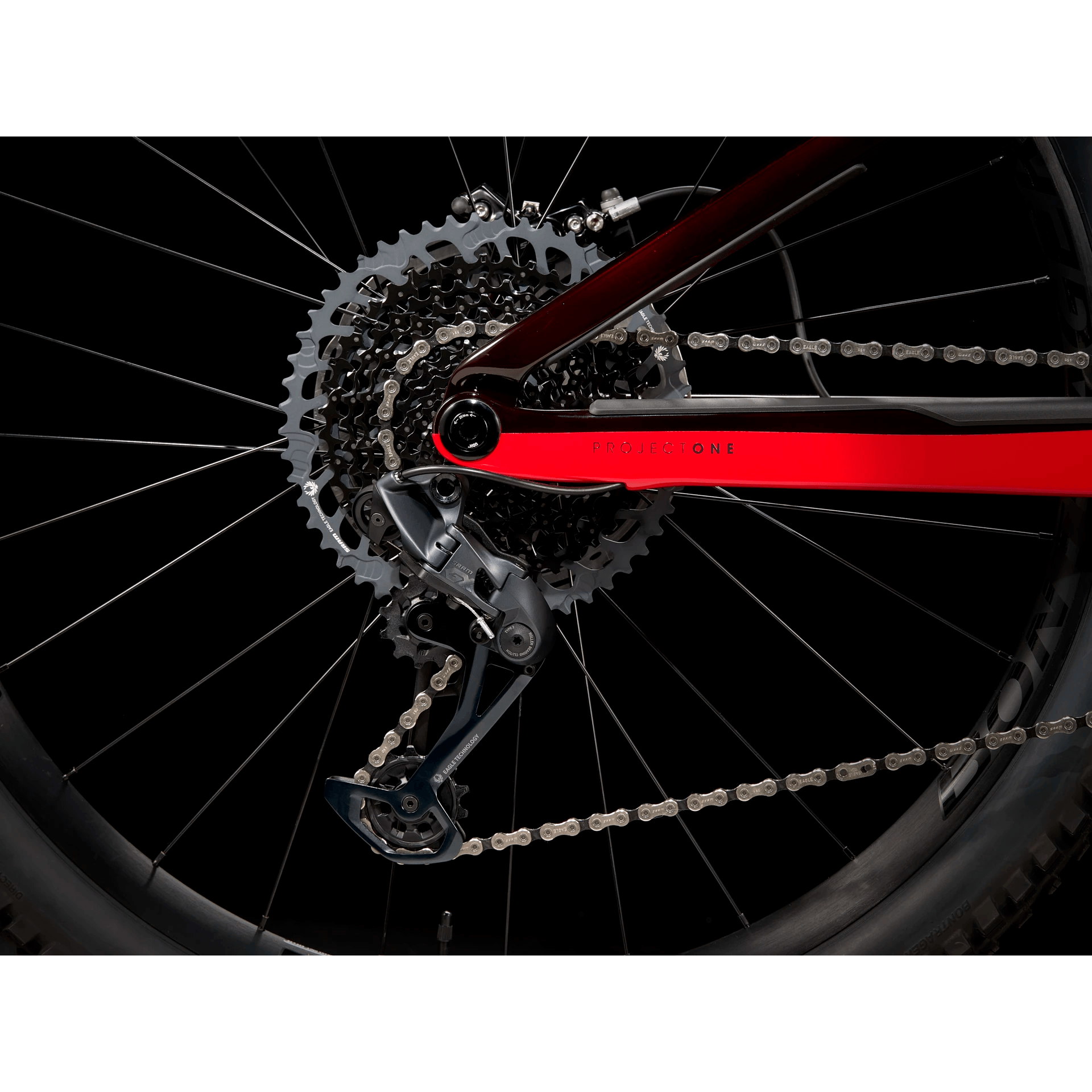

  • Rear derailleur - SRAM GX Eagle
  • Crank - SRAM X1 1000, 34T, 165mm length
  • Chainring - SRAM X-SYNC 2, 34T, alloy
  • Cassette - SRAM Eagle XG-1275, 10-52, 12 speed
  • Chain - SRAM GX Eagle, 12 speed
  • Saddle - Bontrager Arvada, austenite rails, 138mm width
  • Seatpost - Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
  • Handlebar - Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
  • Grips - Bontrager XR Trail Elite, nylon lock-on
  • Stem - Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
  • Headset - Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.8" bottom
  • Brake - SRAM Code R 4-piston hydraulic disc
  • Brake rotor - SRAM CenterLine, 6-bolt, round edge, 220mm
  • Brake rotor - SRAM CenterLine, 6-bolt, round edge, 200mm
