Athlon Optics

Helos Btr 1-4.5x24x30mm Rifle Scope

0.0|0 Reviews
ID:

1106967

$469.99$469.990% off
Color:Black* Requires selection
  • Size* Requires selection
  • Reticle* Requires selection

Description

The Helos BTRrifle scope family is specially designed for service rifle matches and AR platforms with short and mid range applications in mind. The scope is loaded with robust turrets that have 23 MOA travel-per-rotation, true zero stop and revolution locking feature, and fully multi-coated lenses. The revolution locking feature limits the Up Adjustment of your elevation turret within one revolution from your zero position, while still providing total 23 MOA adjustment that is more than enough for your target at 600 yard. This feature eliminates any second-guessing you might have on which turn you are at on your elevation turret. The ATSR3 reticle is specially designed for the service rifle matches with the center circle at right size that fits most of your targets and the center dot for precision and horizontal line for wind hold over.

Weight

Weight

22.9oz

Focal Plane

Focal Plane

Determines how the reticle behaves as you zoom.


  • First Focal Plane (FFP): Reticle grows/shrinks with zoom; holdovers stay accurate at all magnifications.

  • Second Focal Plane (SFP): Reticle size never changes; holdovers only accurate at one magnification.


First (FFP)
Second (SFP)
Max Windage Adjustment

Max Windage Adjustment

Maximum horizontal adjustment range for the reticle (left/right)

80 MOA

Max Elevation Adjustment

Max Elevation Adjustment

Maximum vertical adjustment range for the reticle (up/down).

80 MOA

  • Advanced fully multi coated lenses enhance light transmission to deliver brighter images with improved contrast and accurate color reproduction
  • Precision zero stop system provides a consistent return point to the original zero setting for reliable and repeatable elevation adjustments
  • Revolution locking turret system limits elevation adjustment within a single rotation from zero to prevent tracking errors and improve shot consistency
  • Waterproof sealing protects internal components from moisture intrusion to ensure reliable performance in heavy rain and wet conditions
  • Fog proof engineering prevents internal condensation buildup to maintain a clear sight picture during rapid temperature changes
  • Shockproof construction absorbs recoil and impact forces to preserve zero retention and long term durability under repeated use
  • Second focal plane reticle design maintains a constant reticle size across magnification for consistent aiming reference
  • Illuminated reticle enhances target visibility in low light environments by increasing contrast against darker backgrounds

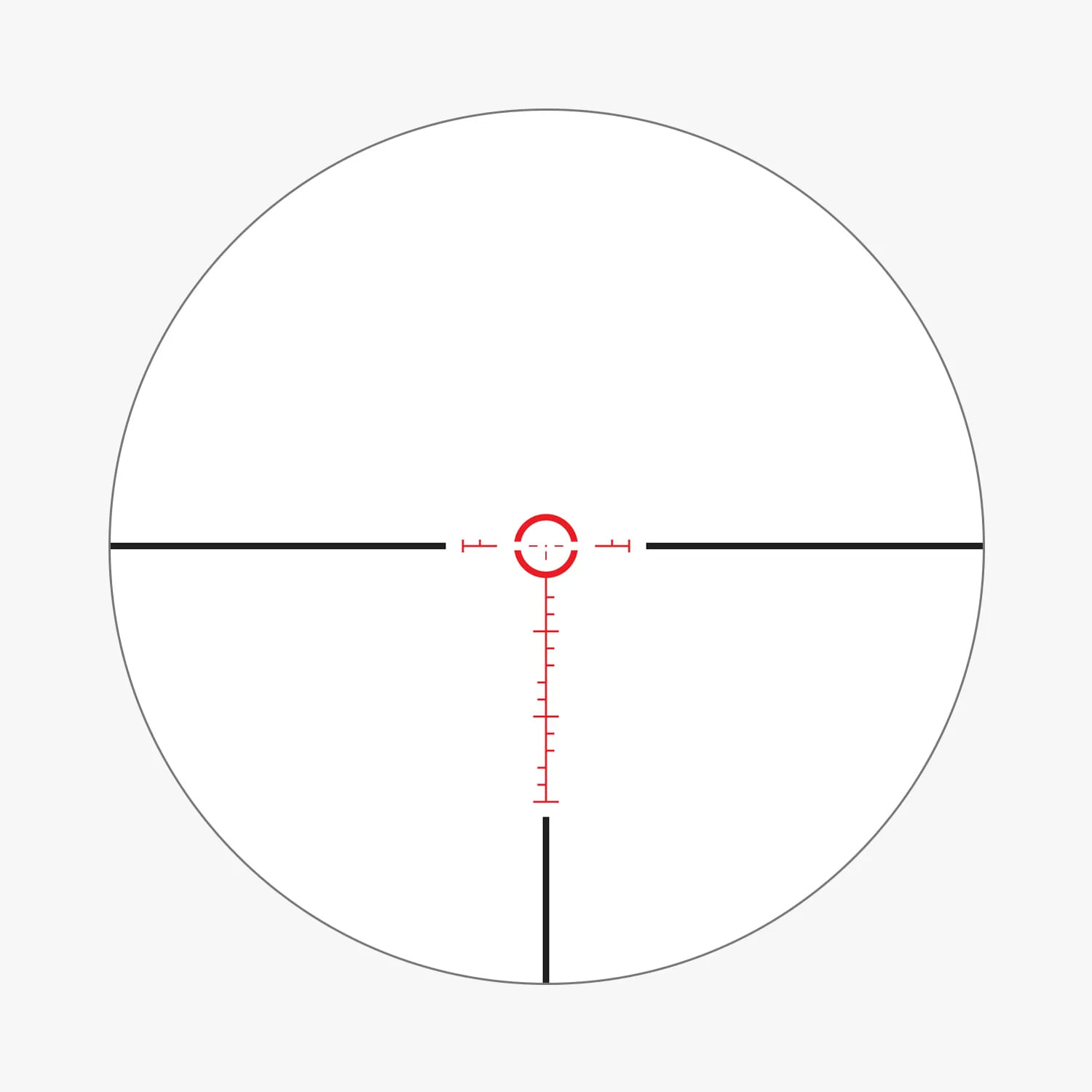

  • Service rifle optimized reticle design supports fast target acquisition with a center circle and precision aiming point for competition use
  • Wind hold reference markings assist shooters in compensating for lateral wind drift during mid range and long range engagements
  • High precision erector system ensures accurate tracking and repeatable adjustments during frequent dialing and shooting cycles
  • Aircraft grade aluminum tube construction enhances structural strength while maintaining alignment under recoil and stress
  • One piece tube design improves durability by eliminating weak points and ensuring long term optical stability
  • Side parallax adjustment enables precise focus correction for improved clarity and accuracy at varying shooting distances
  • Compact AR platform compatible design supports fast handling and effective performance in short to mid range applications

Tech Specs

  • Adjustment Graduation
    0.25 MOA
  • Eye Relief
    3.2"
  • Features
    Waterproof, Fogproof, Shockproof, Zero Stop
  • Focal Plane
    Second
  • Length
    9.5"
  • Magnification
    1-4.5x
  • Manufacturer Warranty
    Limited Lifetime
  • Max Elevation Adjustment
    80 MOA
  • Max Windage Adjustment
    80 MOA
  • Objective Lens Diameter
    24mm
  • Parallax Setting
    10yds-Infinity
  • Travel Per Rotation
    23 MOA
  • Tube Diameter
    30 mm
  • Weight
    22.9 oz
