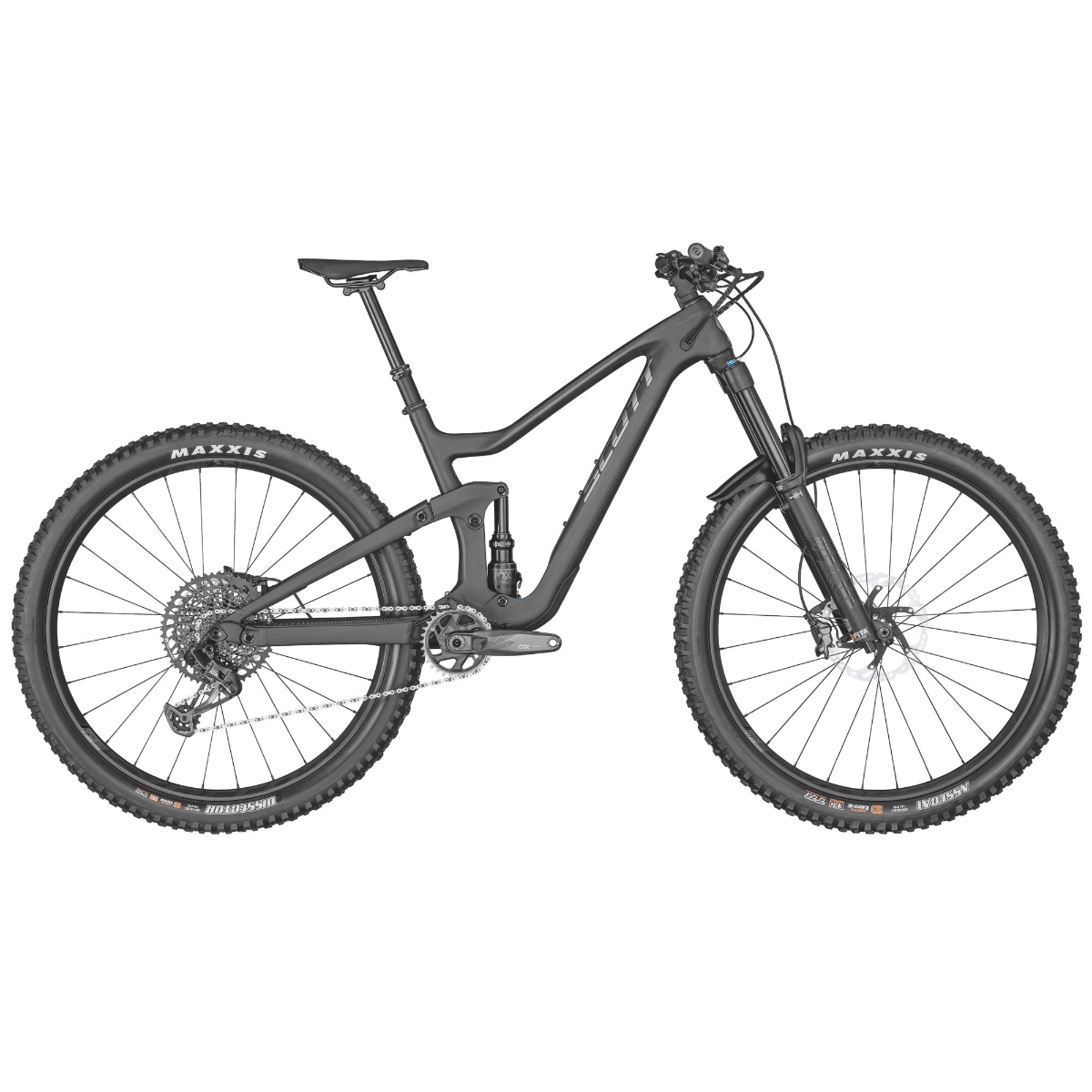

Ransom 910 Bike - 2023

Tech Specs

• Frameset
  • Frame
    Ransom Carbon / IMP Technology / HMX Main Frame BB92 / Alloy SL 6011 swingarm VLK Virtual 4 Link kinematic 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj. SW dropouts for Boost 12x148mm TBC Trunnion box construction
• Suspension
  • Rear Shock
    FOX NUDE TR EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom Ramp Adjust with linear and progressive setting DPS / Reb. Adj. Travel 170-120-Lockout / 205X65mm
  • Fork
    FOX 38 Float Performance Elite Grip 2 Air HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 170mm travel
• Brakes
  • Brakes
    Shimano XT M8120 4 Piston Disc
  • Rotors
    Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
• Drivetrain
  • Shifters
    SRAM GX Eagle Trigger
  • Rear Derailleur
    SRAM GX Eagle 12 Speed
  • Cassette
    SRAM GX / XG1275 / 10-52 T
  • Chain
    SRAM CN GX Eagle
  • Crankset
    SRAM GX Eagle DUB Boost 32T
  • Bottom Bracket
    SRAM DUB PF integrated / shell 41x92mm
• Wheels & Tires
  • Front Tire
    Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp
  • Rear Tire
    Maxxis Dissector / 2.4" / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra
• Cockpit
  • Handlebars
    Syncros Hixon 1.5 Rise / Alloy 20140D.B. 20mm rise / 8 degree / 780mm Syncros Pro lock-on grips
  • Stem
    Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0 degree / 1 1/8"
  • Saddle
    Syncros Kaslo 1.5 Titanium Rails
  • Seatpost
    FOX Transfer Performance Elite Dropper Post 31.6mm / S 125mm / M 150mm / L & XL 175mm
  • Headset
    Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
• Other
  • Wheels
    Syncros Revelstoke 2.0 6 Bolt F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool
  • Accessories
    TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes, Syncros Trail Fender 2 36/38
