Trek Powerfly 4 E-Bike - 2022

TREK POWERFLY 4 E-BIKE - 2022

Powerfly 4 is our most affordable electric mountain bike. It's built with parts that hold up, like a smooth-shifting Shimano drivetrain, and a powerful Bosch motor. Plus, it features our user-friendly Removable Integrated Battery (RIB) system that's fully encased in the frame yet doesn't require tools for removal. This bike expands your boundaries and lets you travel to destinations you never thought you'd reach on a mountain bike.

It's right for you if... You're sold on the e-bike revolution and want the capability and versatility of a mountain bike at a price that doesn't resemble the car you're trying to use less. You want bigger, better off-road adventures, and know an e-MTB with the latest user-friendly tech is the best way to get them.

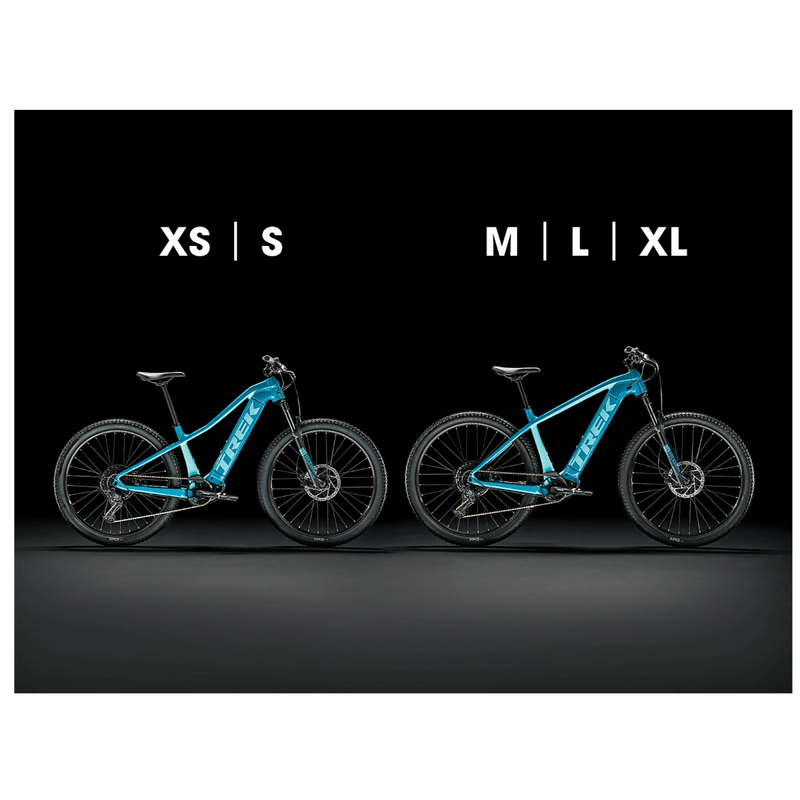

The tech you get A tough yet refined aluminum frame that fully encases a long-range 500Wh battery for sleek looks, a Bosch Performance CX (250W, 75Nm) motor that assists up to 20 mph or 32 km/h, a Bosch Purion controller, a 1x10 Shimano drivetrain, an 80mm SR Suntour fork with lockout, and hydraulic disc brakes. Plus, Smart Wheel Sizing means riders of every size get a great fit—29" wheels on larger frames, 27.5" wheels on smaller frames.

The final word Our most affordable electric mountain bike comes with the same powerful Bosch motor and intuitive controller as our most expensive e-bikes, with a smaller battery and parts chosen to give you great value.

FEATURES

• Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
• This bike expands boundaries: the top-notch Bosch system is equally suited to commuting, recreation, and a ridiculously fun time on the trails
• The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
• It's equipped with an external charging port for easy charging on or off the bike
• You can boost your Powerfly’s utility by adding a rack and fenders, plus built-in wiring lets you easily install lights powered by the motor

TECH SPECS

• Motor: Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm
• Battery: Bosch PowerTube 500
• Display: Bosch Purion Controller
• Max Assisted Speed: 20mph or 32km/h max assist
• Charger: Bosch compact 2A (100-240V) charger
• Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
• Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset
• Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
• Axles: Front: 12mm thru axle
• Rear: 15mm thru axle
• Rims/Wheels: Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve
• Hubs: Front: Formula DC-511, 6-bolt, Boost110
• Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148
• Spokes: 14g, stainless steel, black
• Tires: Size XS, S: Bontrager XR3 Comp, wire bead, 30tpi, 27.5" x 2.35
• Size M, L, XL: Bontrager XR3 Comp, wire bead, 30tpi, 29" x 2.30
• Crankset: FSA Bosch CK-220, 165mm length
• Chainrings: 36T
• Chain: KMC X10, 10 speed
• Rear Derailleur: Shimano Deore M5120, long cage
• Cassette/Rear Cogs: Shimano Deore M4100, 11-46, 10 speed
• Shifters: Shimano Deore M4100, 10 speed
• Handlebars: Bontrager alloy, 31.8mm, 15mm rise
• Tape/Grips: Bontrager XR Endurance Comp, lock-on
• Stem: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
• Brakes: Tektro HD-M275 hydraulic disc w/Tektro, 203mm, 6-bolt rotors
• Pedals: VP-536 nylon platform
• Saddle: Bontrager Commuter Comp
• Seat Post: Bontrager alloy, 31.6mm, 12mm offset
