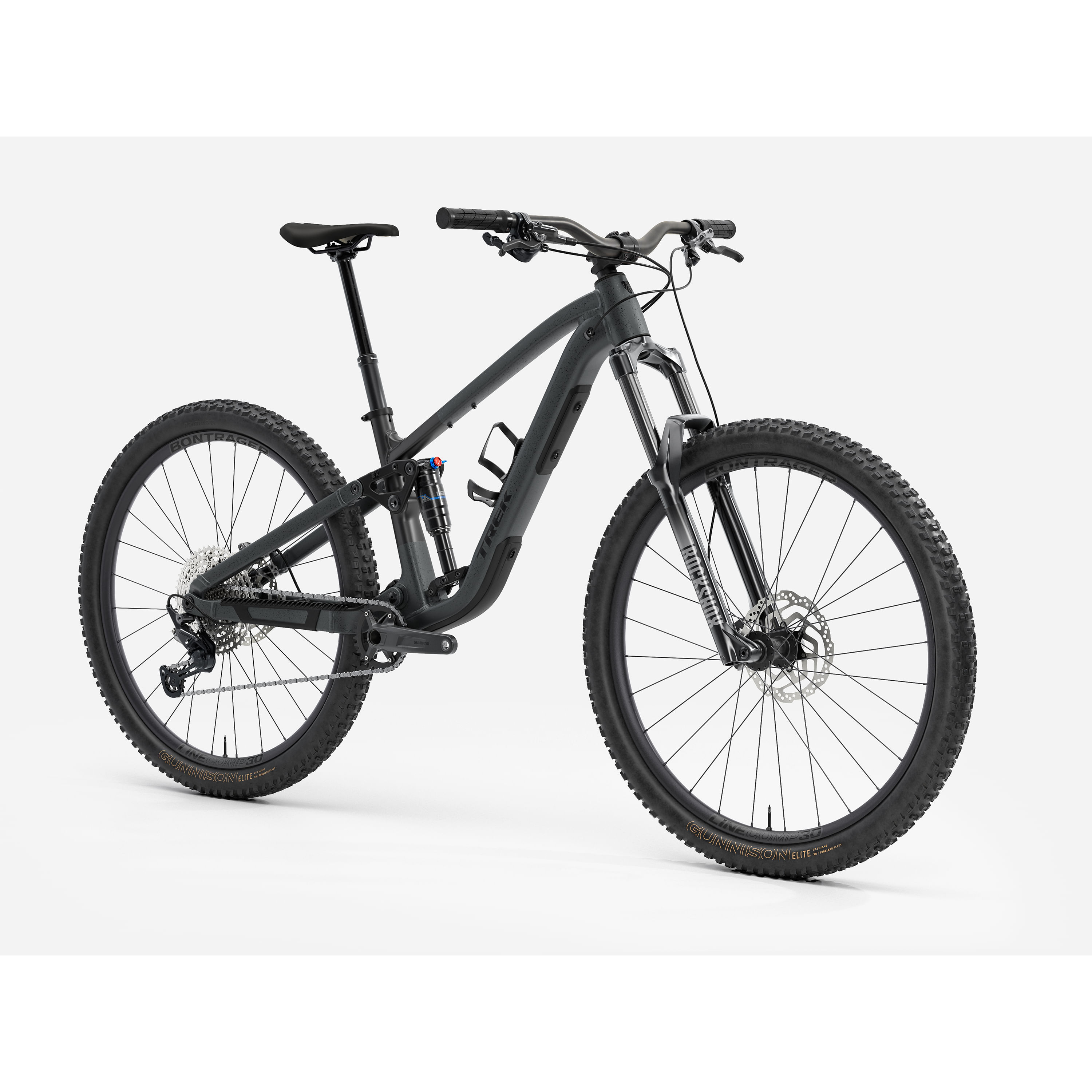

Fuel EX 5 Gen 7 Bike - 2026

Tech Specs

• Frameset
  • Frame

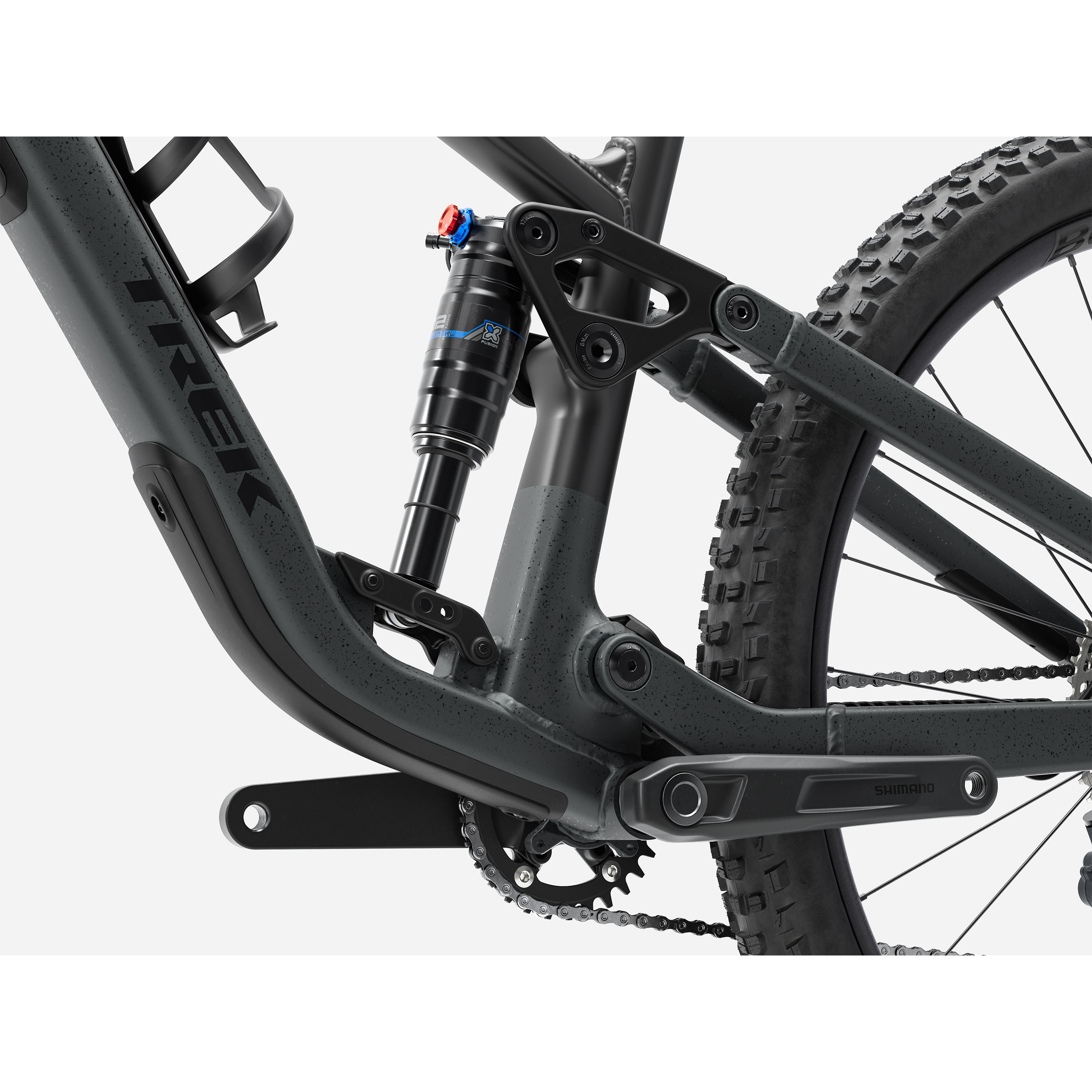

    Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
• Suspension
  • Fork
    Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel
  • Shock
    X-Fusion Pro 2, 2-position damper, 205mm x 60mm
• Brakes
  • Brake Rotor
    Shimano RT10, centerlock, 180mm
  • Brake
    Shimano hydraulic disc, MT201 lever, MT200 caliper
• Drivetrain
  • Rear Derailleur
    Shimano Deore M6100, long cage
  • Cassette
    Shimano Deore M6100, 10-51, 12 speed
  • Chain
    Shimano Deore M6100, 12 speed
  • Shifter
    Shimano Deore M6100, 12 speed
  • Crank
    Shimano MT512, 30T ring, 55mm chainline, 170mm length
  • Bottom Bracket
    Shimano BB-MT501 BSA
• Wheels & Tires
  • Hub Front
    Shimano TC500 alloy, centerlock, 110x15mm thru axle
  • Hub Rear
    Shimano TC500 alloy, centerlock, 148x12mm thru axle
  • Skewer Rear
    Bontrager Switch thru axle, removable lever
  • Tire
    Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
  • Rim
    Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
  • Rim
    Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
• Cockpit
  • Stem
    Bontrager Comp, 31.8mm, 7 degree, 35mm length
  • Handlebar
    Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Saddle
    Bontrager Verse Short, stainless steel rails
  • Seatpost
    (Size S) TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
  • Seatpost
    (Size M. L, XL) TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
  • Headset
    FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
• Weight
  • Weight
    37.53 lbs
