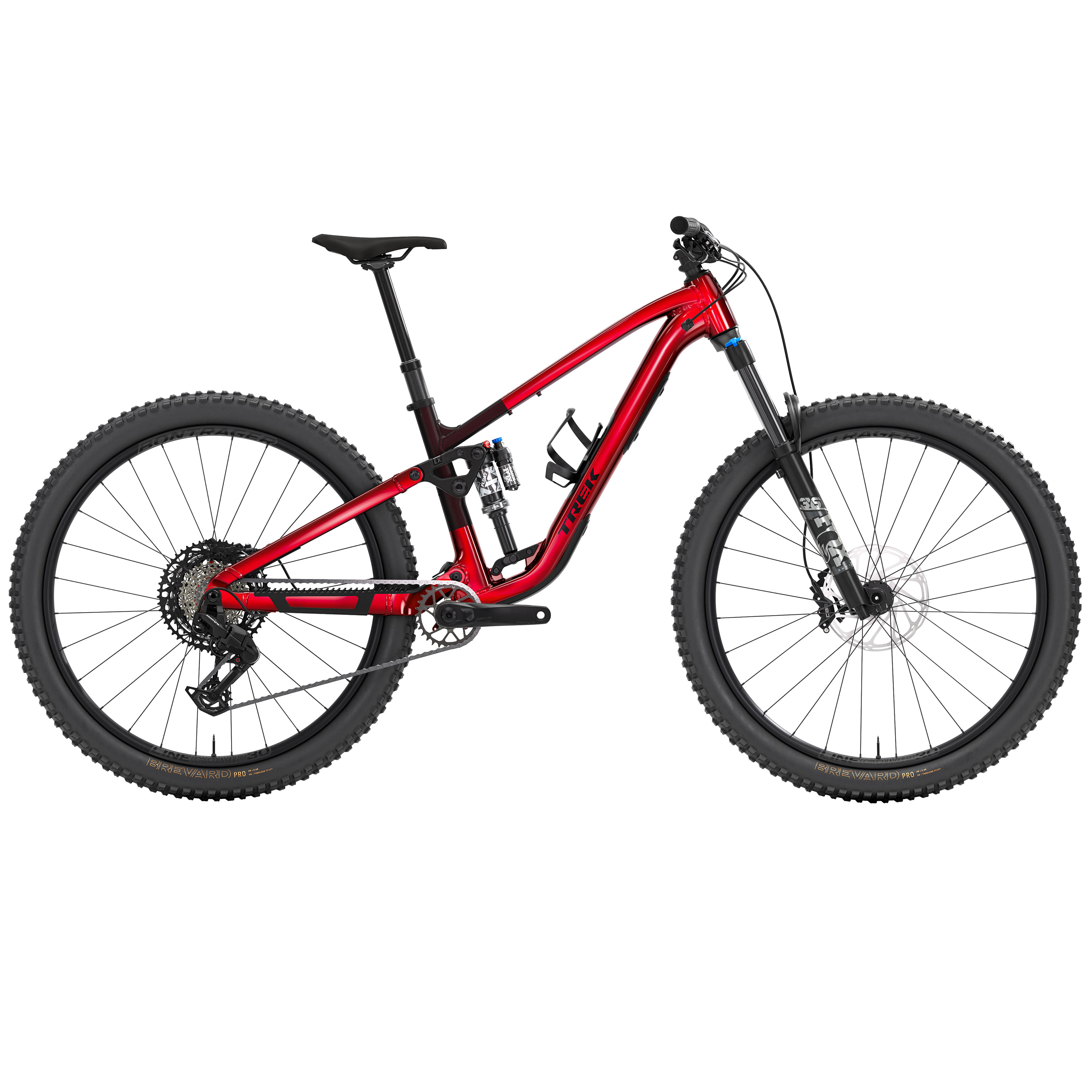

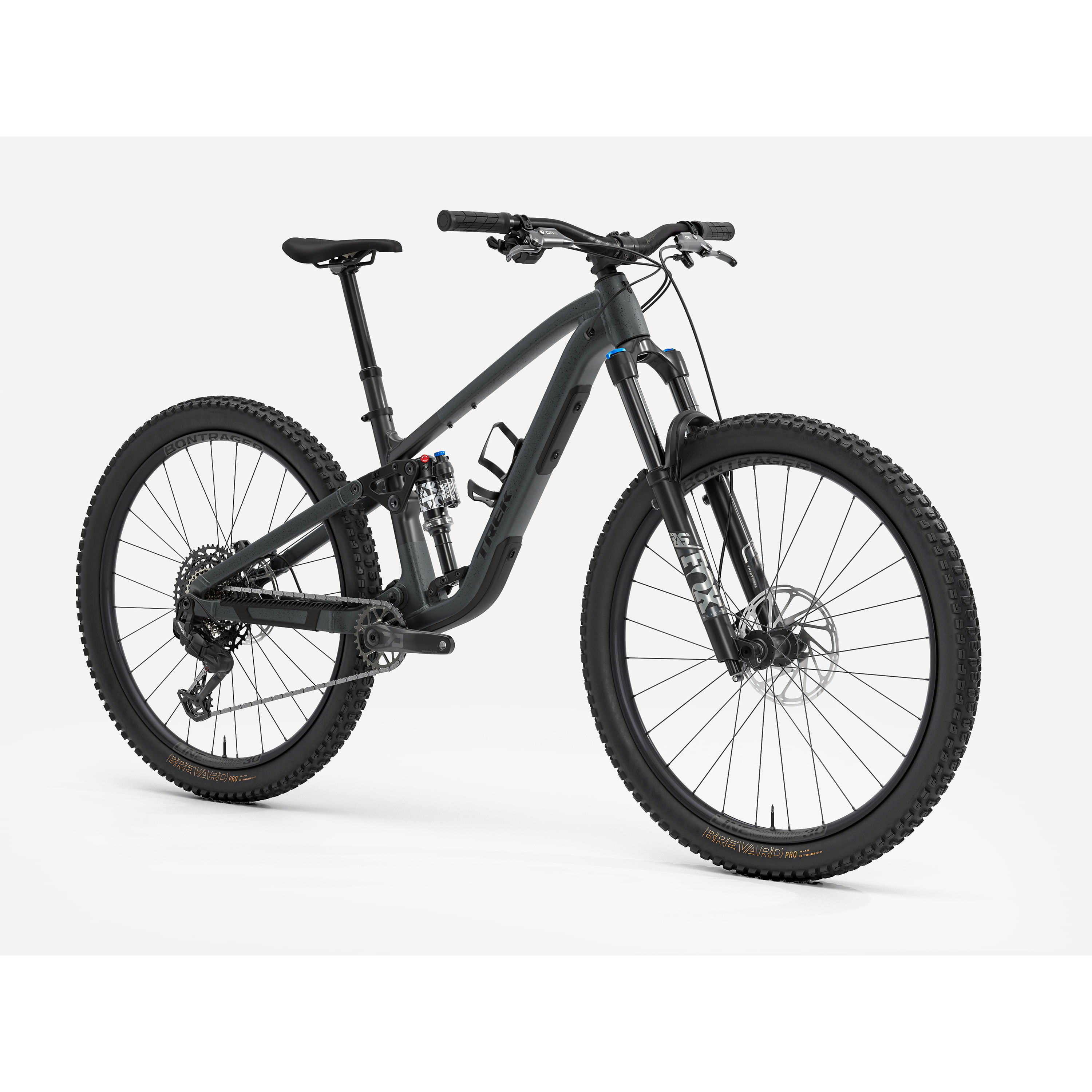

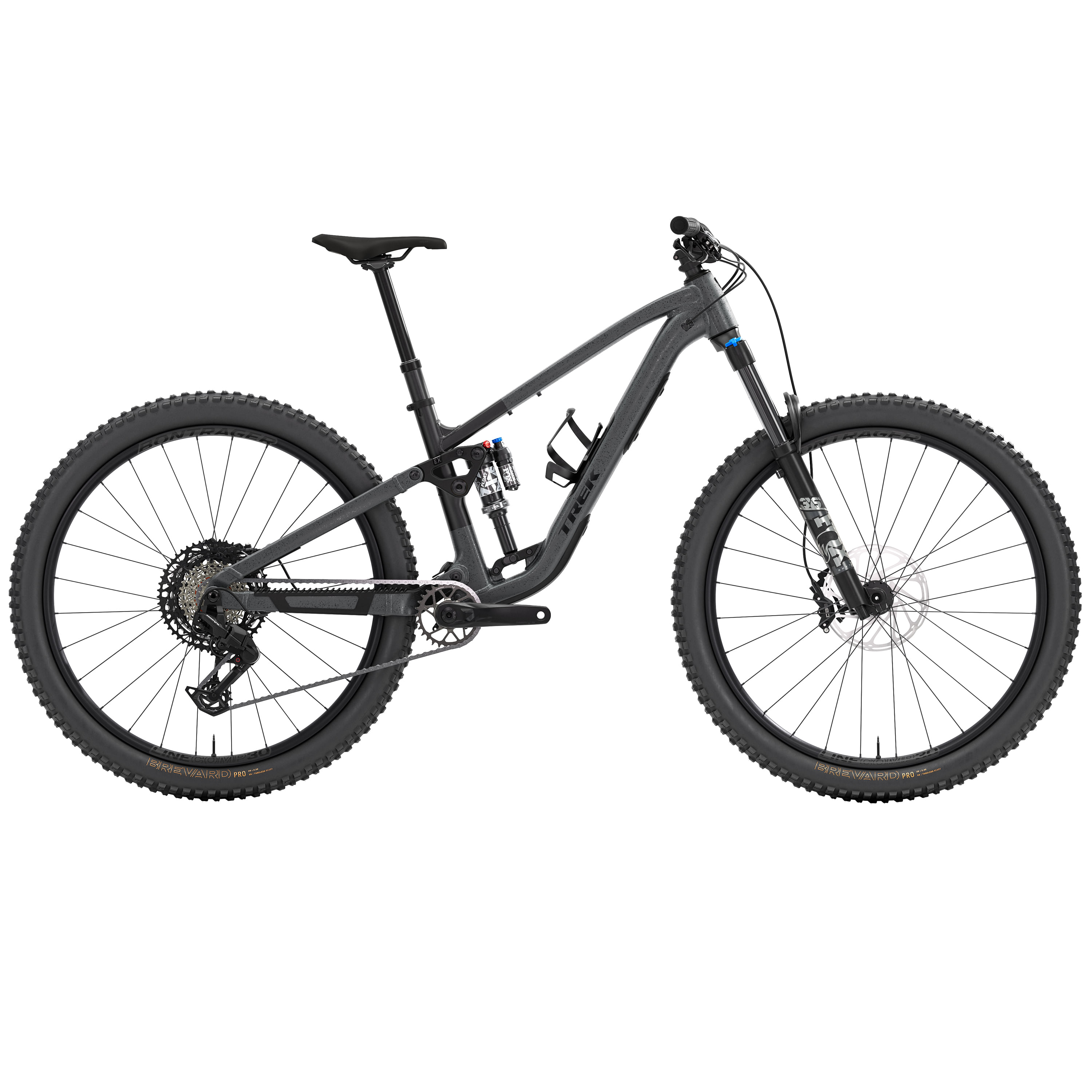

Fuel EX 8 Gen 7 Bike - 2026

Tech Specs

• Frameset
  • Frame
    Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
• Suspension
  • Fork
    Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
  • Shock

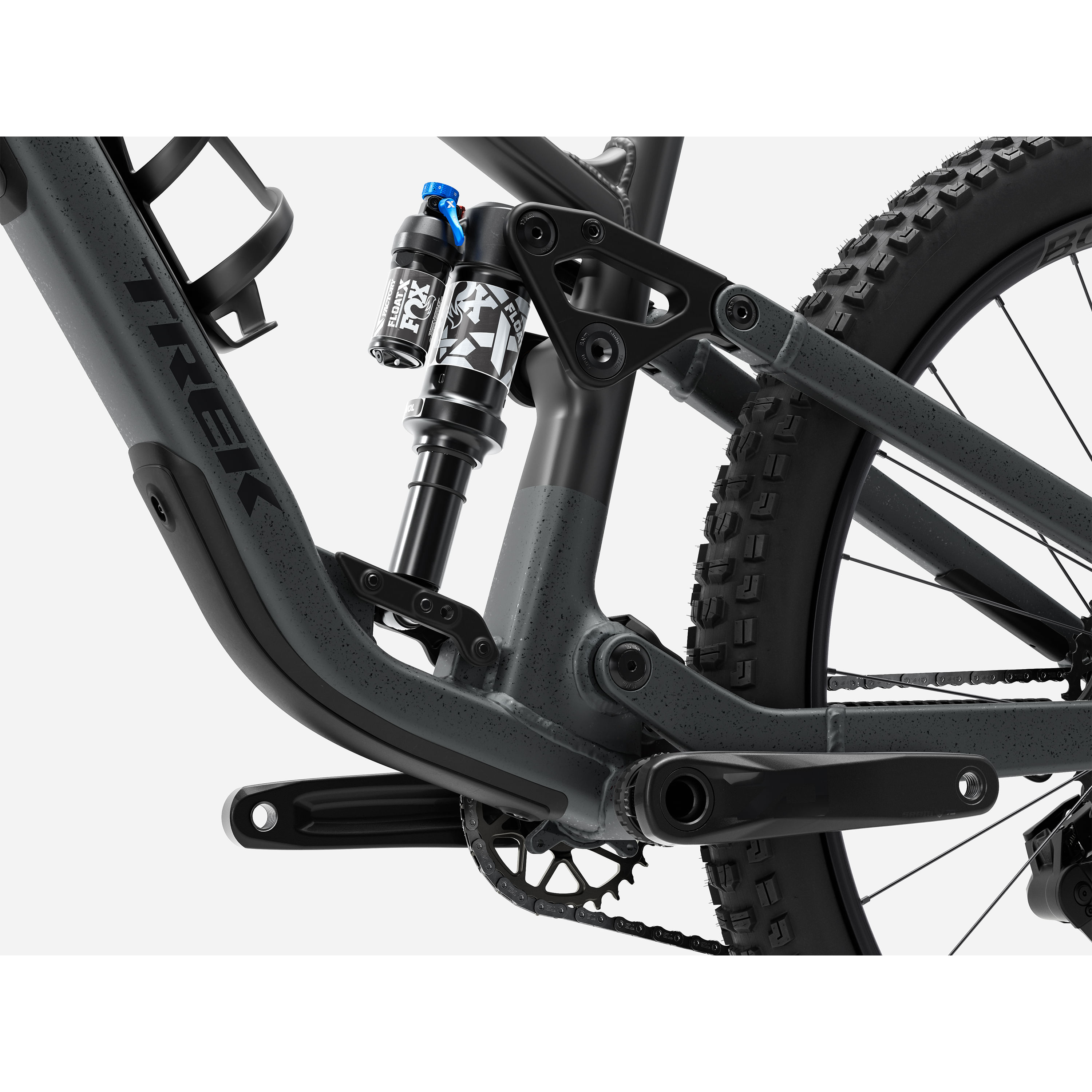

    Fox Performance Float X, 2-position damper, 205mm x 60mm
• Brakes
  • Brake Rotor
    SRAM Centerline 2.0, 6-bolt, 180mm
  • Brake Rotor
    SRAM Centerline 2.0, 6-bolt, 200mm
  • Brake
    SRAM DB 8 4-piston hydraulic disc
• Drivetrain
  • Rear Derailleur
    SRAM Eagle 70, T-Type
  • Cassette
    SRAM Eagle XS-1270, T-Type,10-52, 12 speed
  • Chain
    SRAM Eagle 70, T-Type, 12 speed
  • Shifter
    SRAM Eagle 70, 12 speed
  • Crank
    SRAM Eagle 70, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
  • Bottom Bracket
    SRAM DUB MTB Wide, 73mm, BSA threaded
• Wheels & Tires
  • Hub Front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
  • Hub Rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
  • Skewer Rear
    Bontrager Switch thru axle, removable lever
  • Tire
    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50''
  • Rim
    Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
• Cockpit
  • Stem
    Bontrager Elite, 35mm, 0 degree, 45mm length
  • Handlebar
    Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
  • Grips
    Trek Line Comp, nylon lock-on
  • Saddle
    Bontrager Verse P3, chromoly rails
  • Seatpost
    (Size S) Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
  • Seatpost
    (Size M) Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
  • Seatpost
    (Size L, XL) Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
  • Headset
    FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
• Weight
  • Weight
    37.24 lbs
