Fuel EX 9.8 GX AXS Gen 6 Bike - 2023

0.0|reviews
ID:

1134713

$7,699.99$3,999.9348% off
Color:Deep Smoke* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth, quiet, and holds its own when you pick a line. It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean looking and customizable. 150mm front and 140mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

  • Active Braking Pivot allows Trek engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
  • Full FOX Performance suspension package
  • Light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
  • You get the latest technology in SRAM's workhorse GX groupset, with wireless AXS shifting

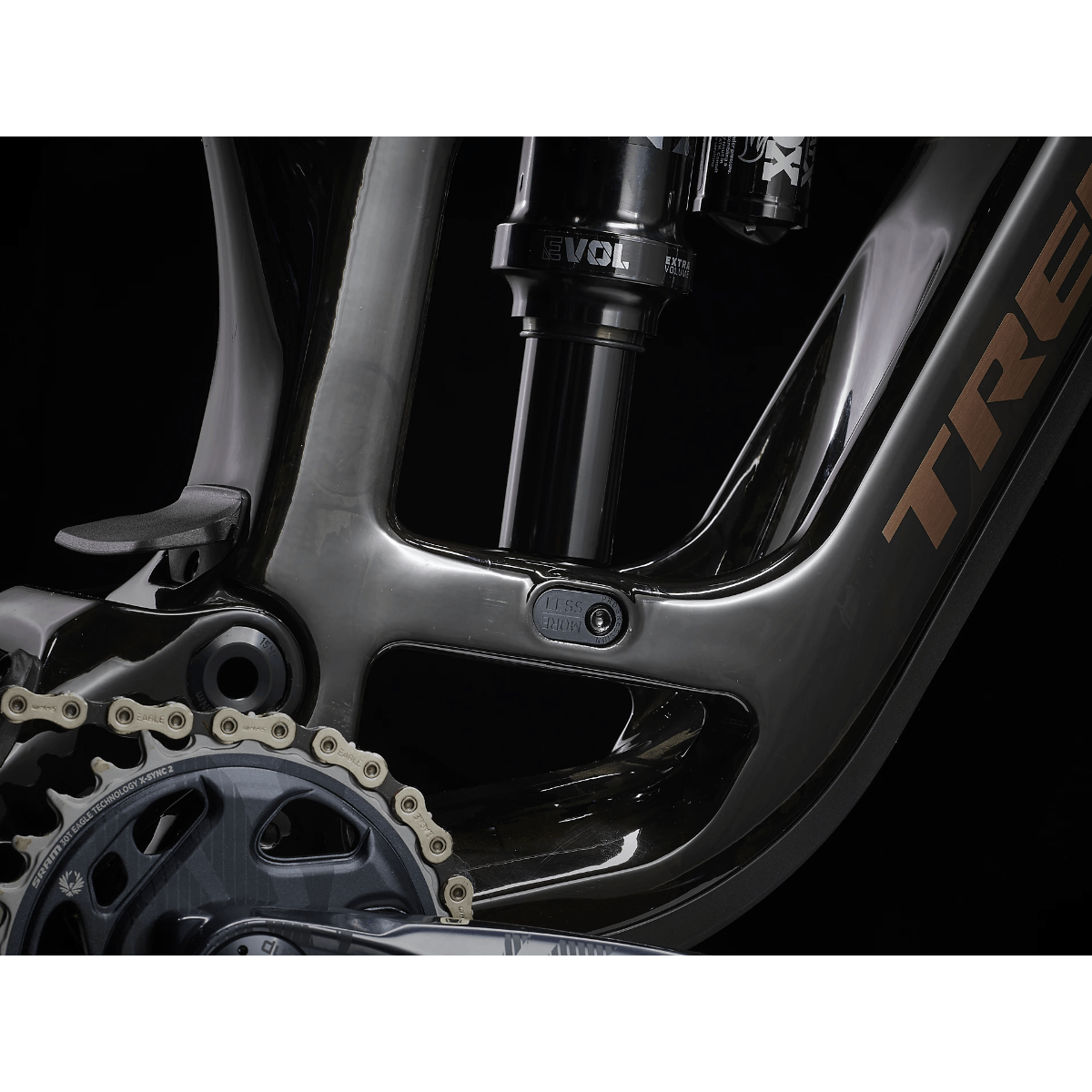

  • Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
  • Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking - all without impacting your bottom bracket height.
  • Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.
  • Weight (Size M) - 14.15 kg / 31.21 lbs (with TLR sealant, no tubes)

Tech Specs

  • E-Bike
    • Battery
      SRAM eTap battery pack (with charger)
  • Frameset
    • Frame
      OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
  • Suspension
    • Fork
      Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

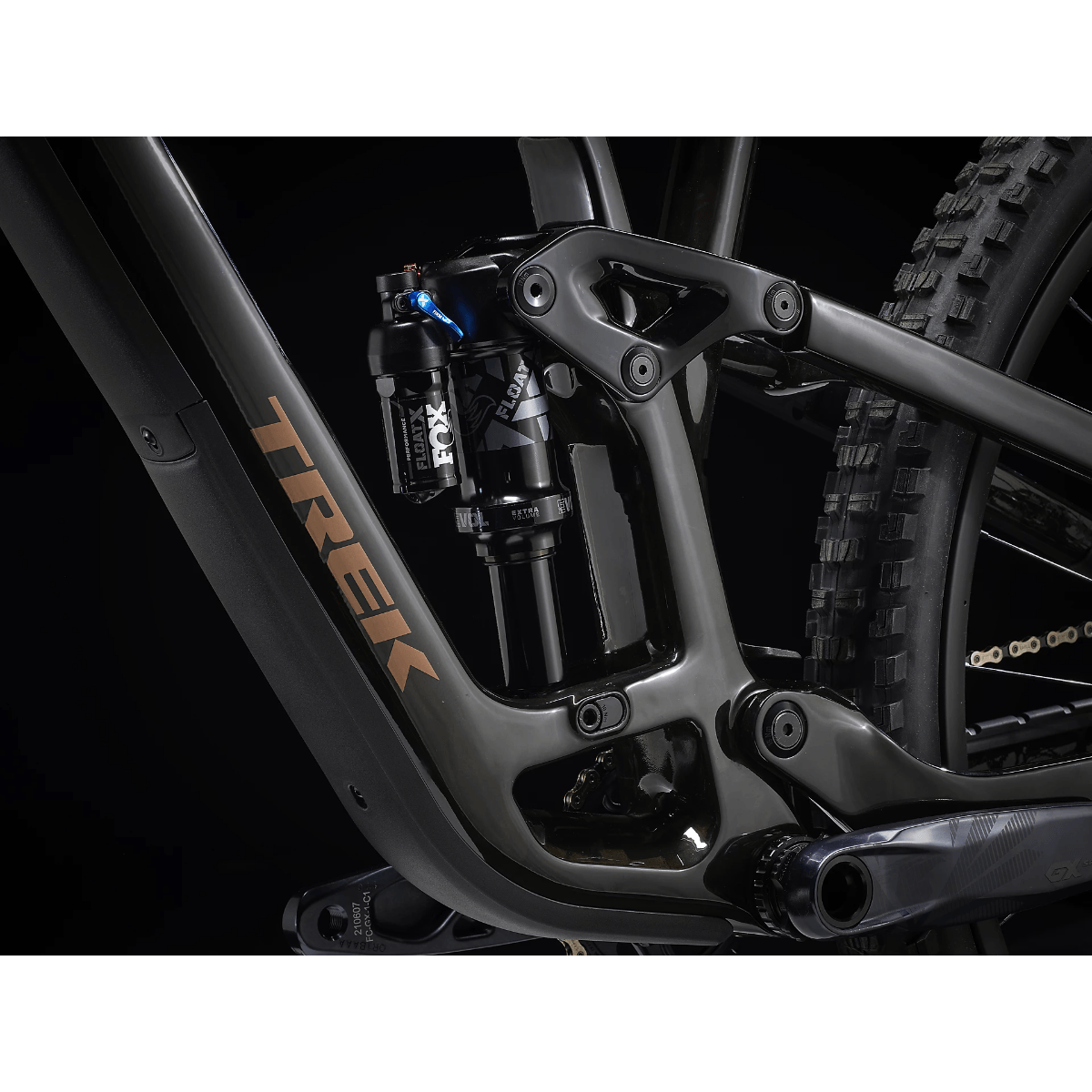

    • Shock
      Fox Performance Float X, 2-position damper, 185mm x 55mm

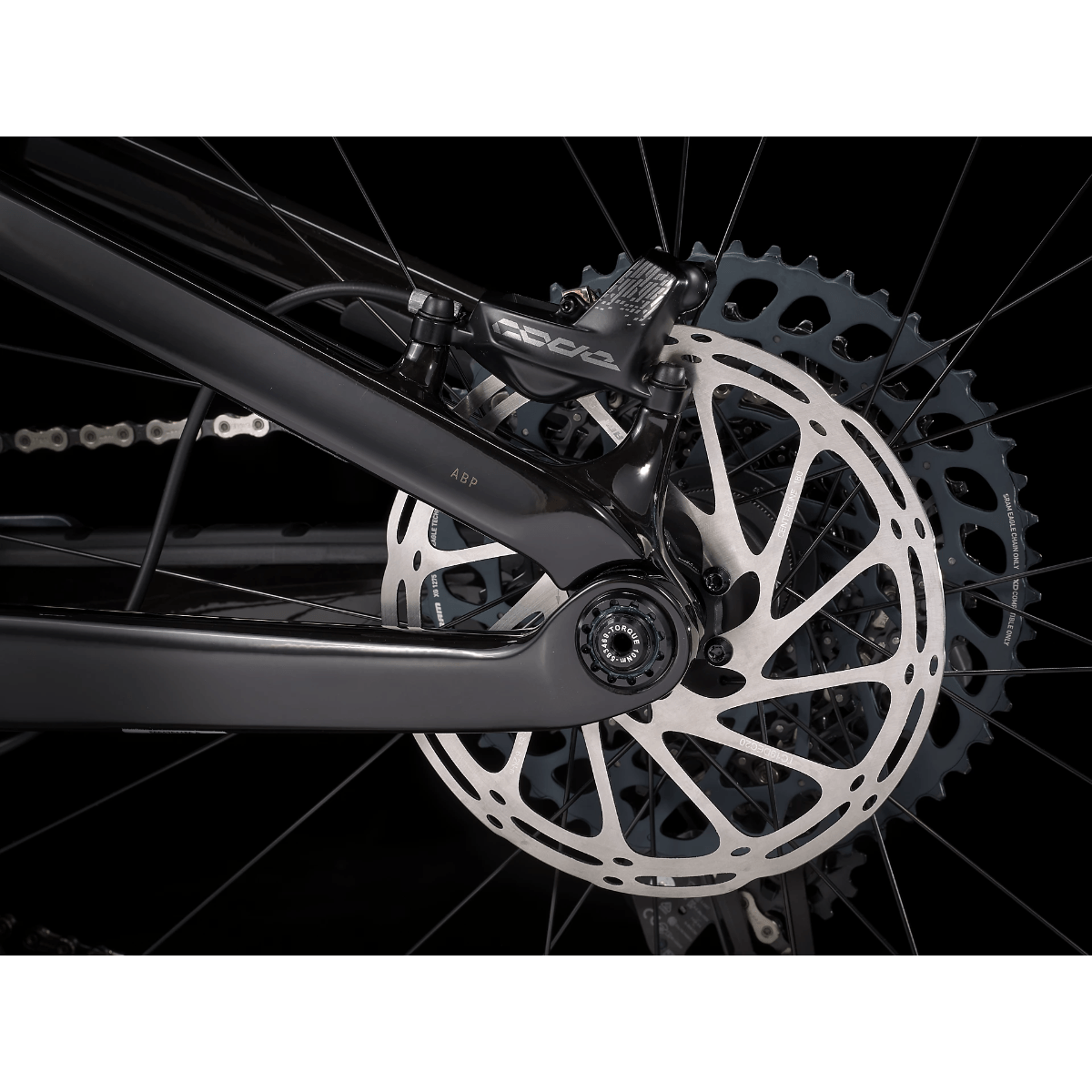

  • Brakes
    • Brake rotor
      SRAM CenterLine, 6-bolt, round edge, 180mm
    • Brake rotor
      SRAM CenterLine, 6-bolt, round edge, 200mm
    • Brake
      SRAM Code R 4-piston hydraulic disc
  • Drivetrain

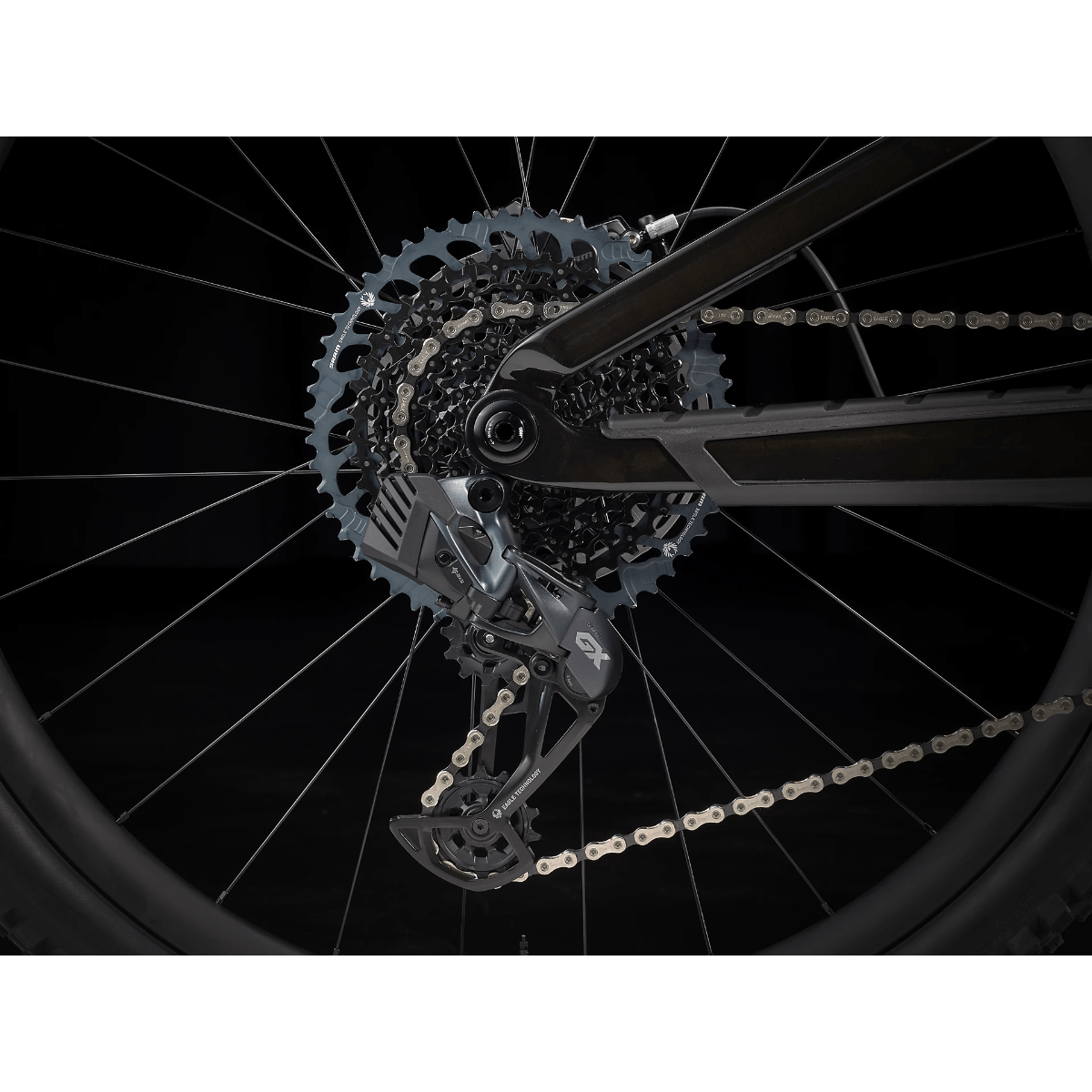

    • Rear derailleur
      SRAM GX Eagle AXS
    • Cassette
      SRAM Eagle XG-1275, 10-52, 12 speed
    • Chain
      SRAM GX Eagle, 12 speed
    • Shifter
      SRAM GX Eagle AXS, 12 speed
    • Crank
      SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
    • Bottom bracket
      SRAM DUB MTB Wide, 73mm, BSA threaded
  • Wheels & Tires
    • Skewer rear
      Bontrager Switch thru axle, removable lever
    • Tire
      Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Cockpit
    • Seatpost (M)
      Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
    • Seatpost (L)
      Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
    • Handlebar/stem (integrated)
      Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
    • Grips
      Bontrager XR Trail Elite, nylon lock-on
    • Saddle
      Bontrager Arvada, austenite rails, 138mm width

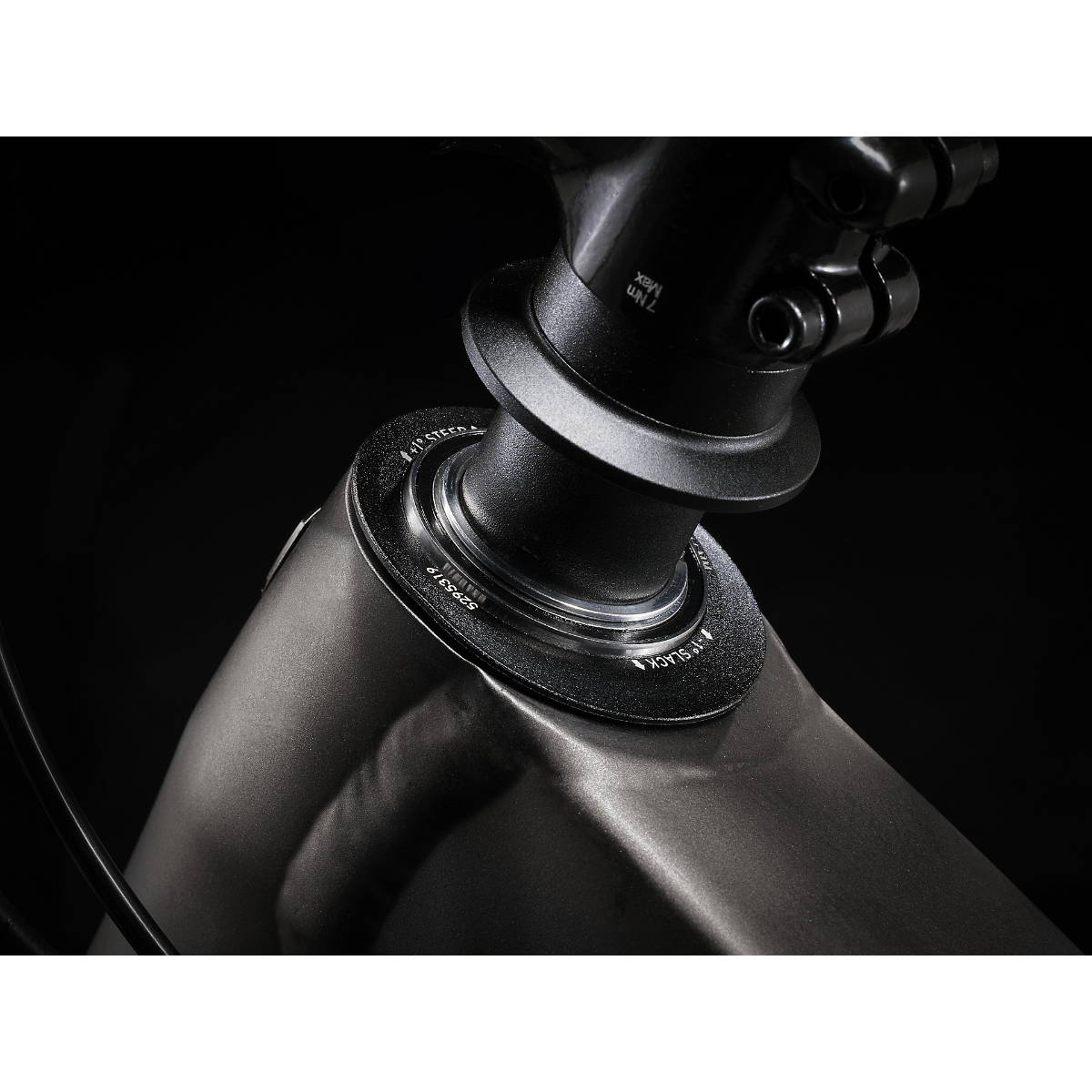

    • Headset
      Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Other
    • Wheel front
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
    • Wheel rear
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29"
    • Bag
      Bontrager BITS Internal Frame Storage Bag
