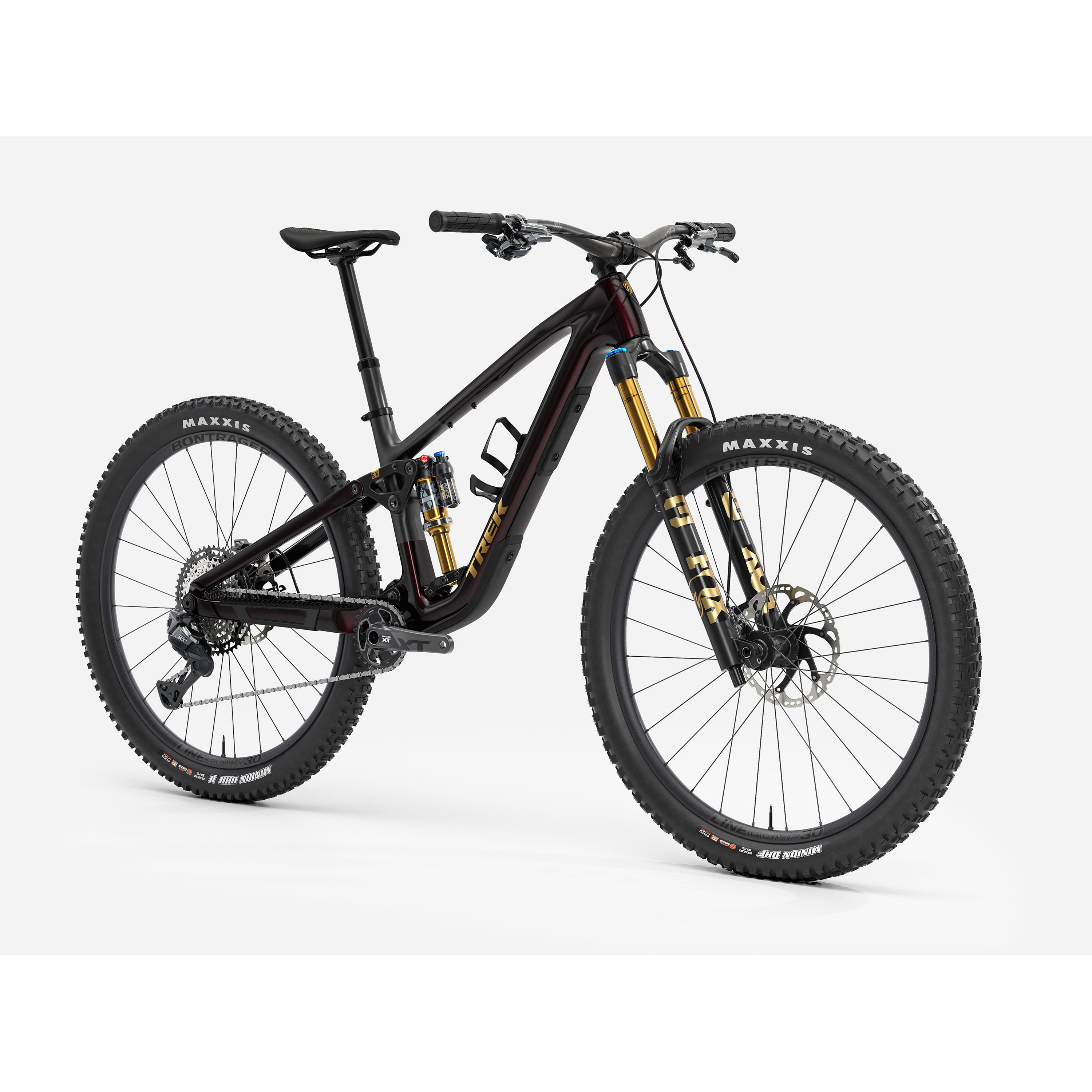

Fuel EX 9.8 XT Di2 Gen 7 Bike - 2026

Tech Specs

• Frameset
  • Frame
    OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
• Suspension
  • Fork
    Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel

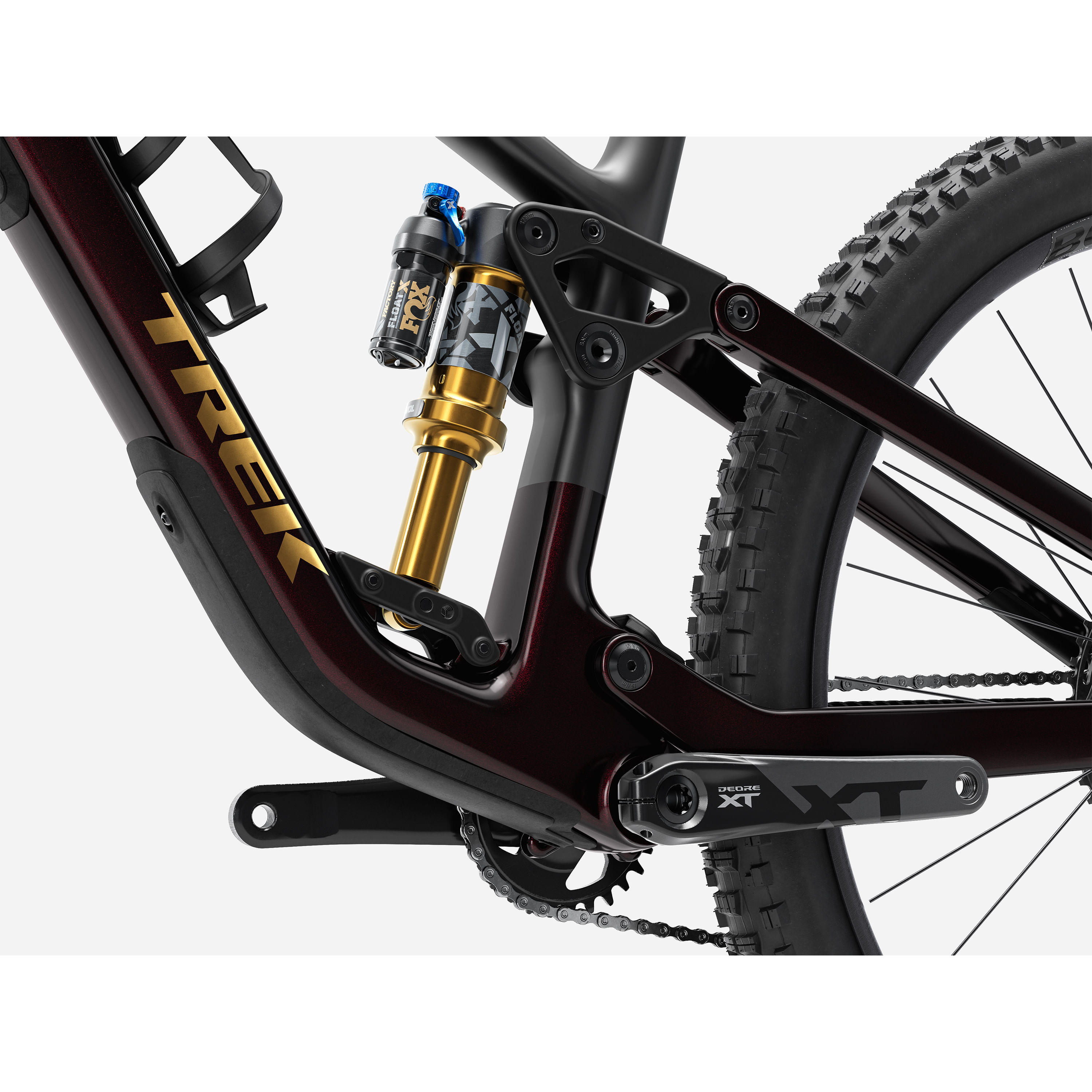

  • Shock
    Fox Factory Float X, 205mm x 60mm
• Brakes
  • Brake Rotor
    Shimano RT86, 6-bolt, 203mm
  • Brake Rotor
    Shimano RT86, 6-bolt, 180mm
  • Brake
    Shimano XT M8200 4-piston hydraulic disc

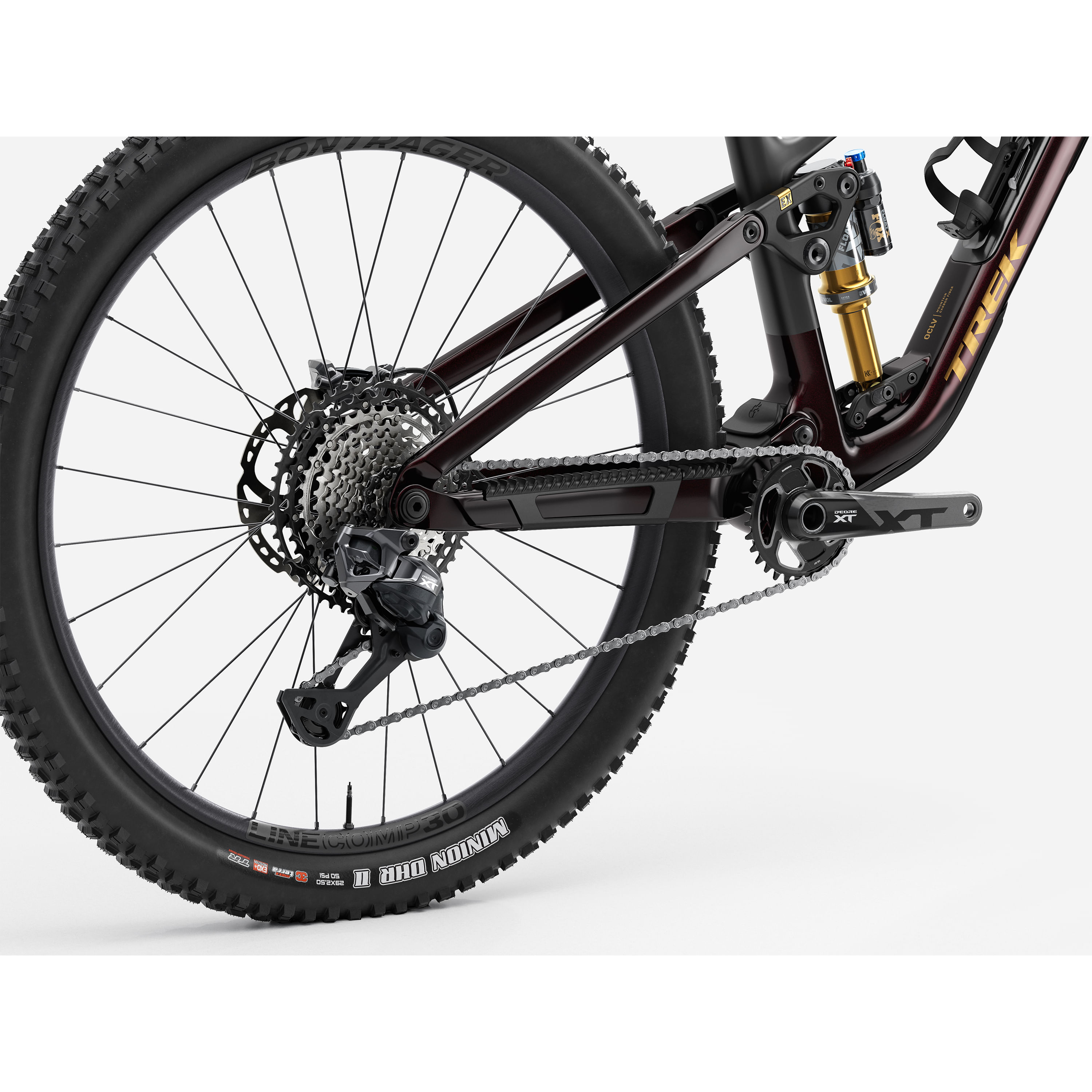

• Drivetrain
  • Rear Derailleur
    Shimano XT M8250, long cage
  • Cassette
    Shimano XT M8200, 10-51, 12 speed
  • Chain
    Shimano Ultegra/XT M8100, 12 speed
  • Shifter
    Shimano XT Di2 M8250, 12 speed
  • Crank
    Shimano XT 8200, 30T, 55mm chainline, 170mm length
  • Bottom Bracket
    Shimano BB-MT501 BSA
• Wheels & Tires
  • Skewer Rear
    Bontrager Switch thru axle, removable lever
  • Tire
    Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
  • Tire
    Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
  • Wheel Front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel Rear
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29''
• Cockpit
  • Stem
    Bontrager Elite, 35mm, 0 degree, 45mm length
  • Handlebar
    Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
  • Grips
    Trek Line Elite, lock-on
  • Saddle
    Verse Short Pro, carbon rails, 145mm width
  • Seatpost
    (Size S) Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
  • Seatpost
    (Size M) Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
  • Seatpost
    (Size L, XL, XXL) Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
• Weight
  • Weight
    33.25 lbs
