Trek

Fuel EX 9.8 XT Gen 5 Bike - 2023

0.0|reviews
ID:

822566

$6,549.99$3,799.9941% off
Color:Lithium Grey / Factory Orange* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio. High-end FOX suspension with upgraded front and rear dampers, carbon wheels with a Rapid Drive rear hub, and a super-smooth Shimano XT wide-range drivetrain give this model an extra edge you'll notice from the first pedal stroke. It's right for you if...You want a single bike that can handle any trail with the light weight and vibration damping of a carbon frame. You're willing to pay for parts that give you a better connection with the trail, but you'd rather skip the bling. The tech you get: A light and stiff full-carbon frame with internal storage, FOX Performance 36 fork with a GRIP2 damper that offers more adjustment, and a RE:aktiv with Thru Shaft shock. A Shimano XT 1x12 drivetrain for super-smooth shifting that's easy on the thumb-plus an extra-low 51-tooth climbing gear, and all-new Bontrager carbon wheels with a 108-tooth Rapid Drive hub for fast engagement. The final word: Fuel EX 9.8 is a great investment for one bike that does it all. You get a light carbon frame, but it's the parts that make this model, like the extra-adjustable GRIP2 damper, the magic-carpet ride of Thru Shaft, and the blistering acceleration of carbon wheels with a Rapid Drive hub.

  • RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
  • The Fox Performance 36 fork gives you four-way damping adjustments for extra-dialed suspension

Tech Specs

  • Frameset
    • Frame

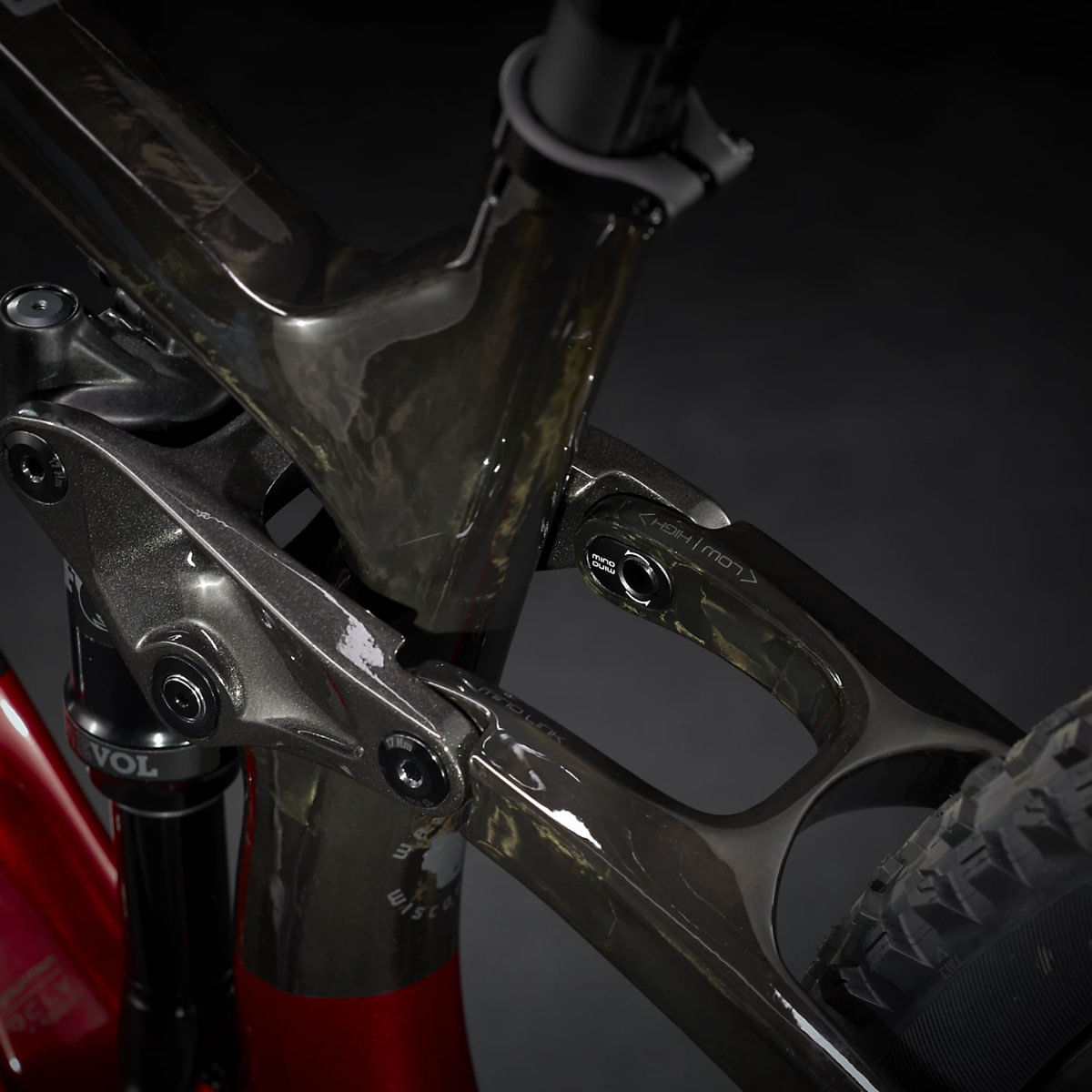

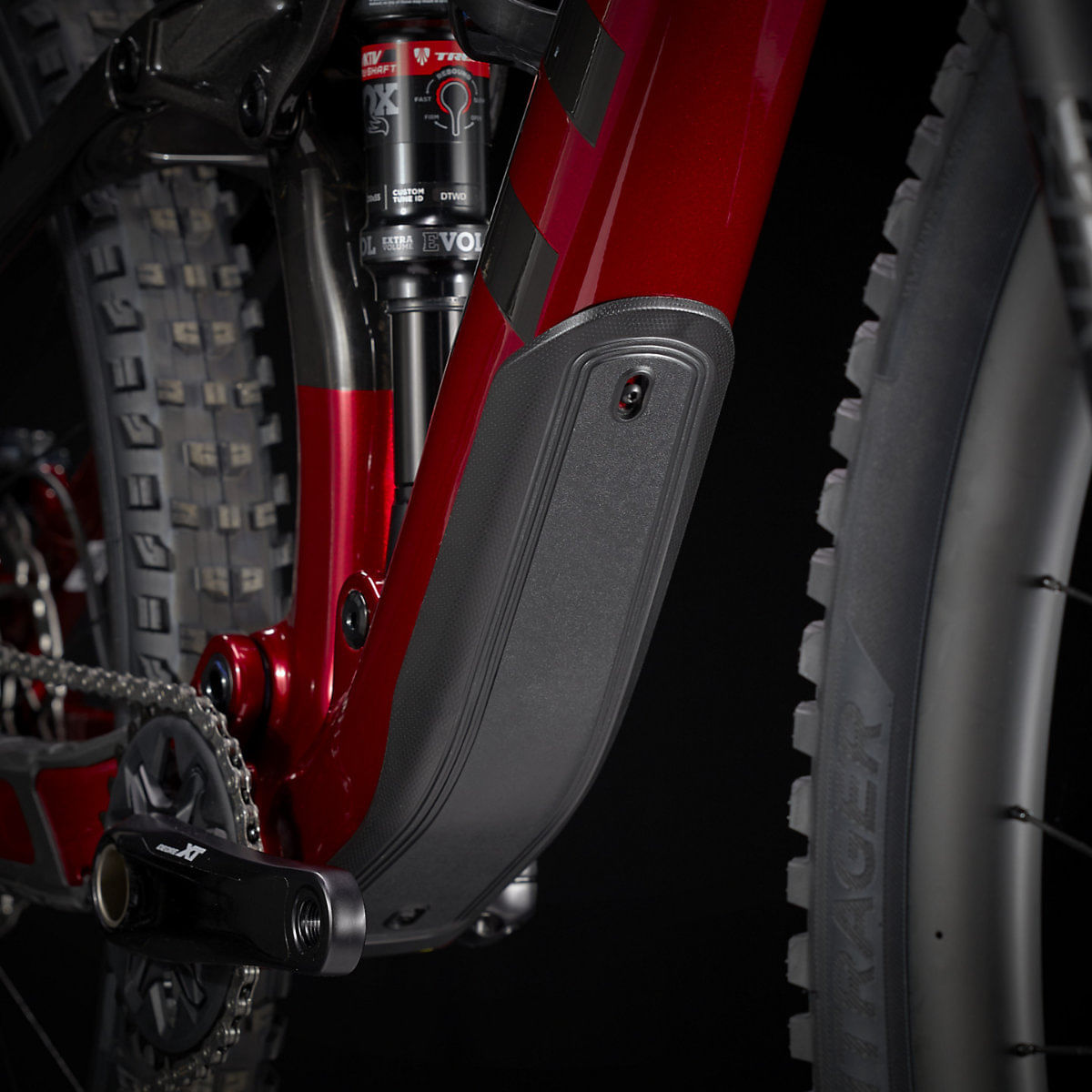

      OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
  • Suspension
    • Fork
      Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
    • Shock
      Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
  • Brakes

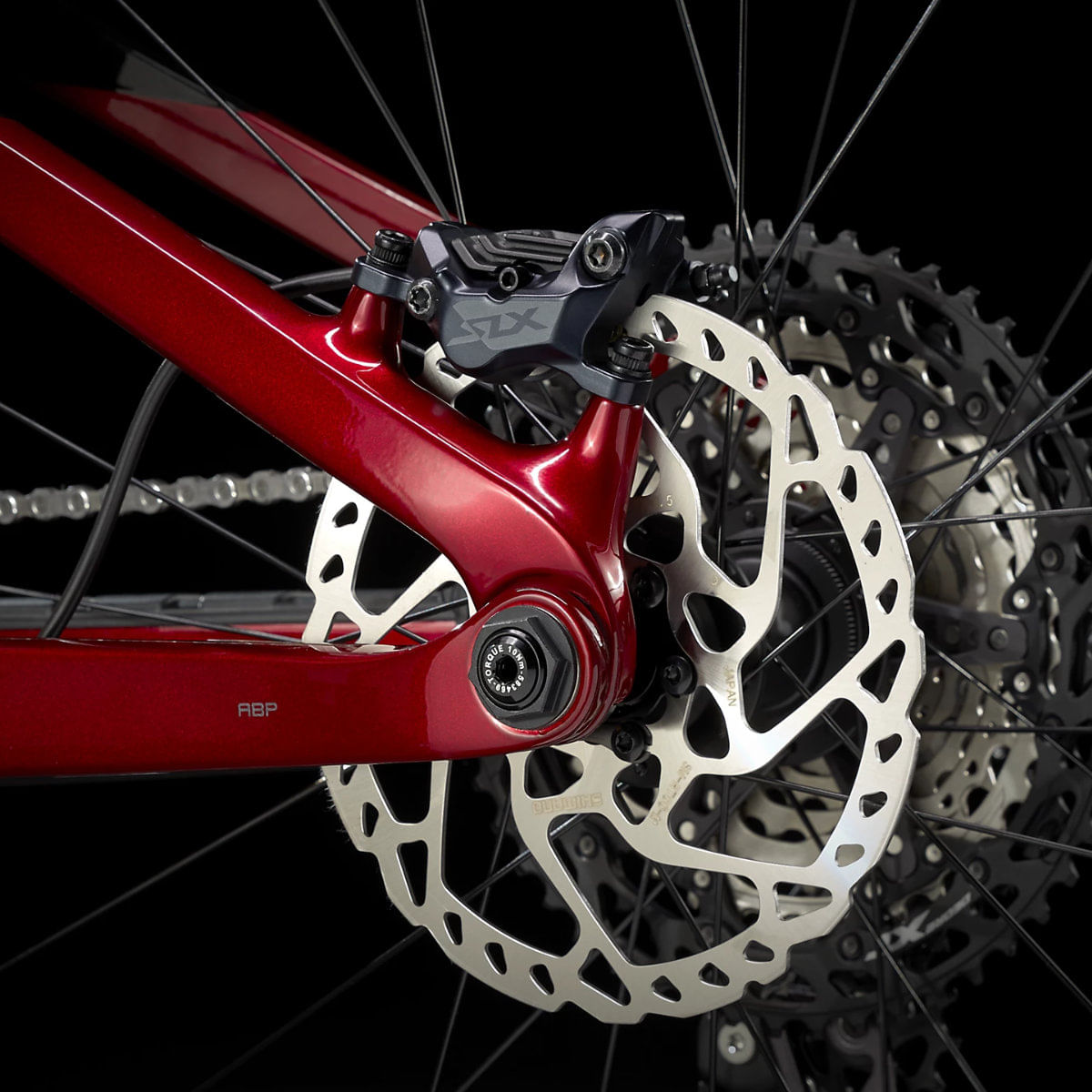

    • Brake rotor
      Shimano RT66, 6-bolt, 180mm
    • Brake
      Shimano SLX M7120 4-piston hydraulic disc
    • Brake
      Shimano RT66, 6-bolt, 203mm
  • Drivetrain

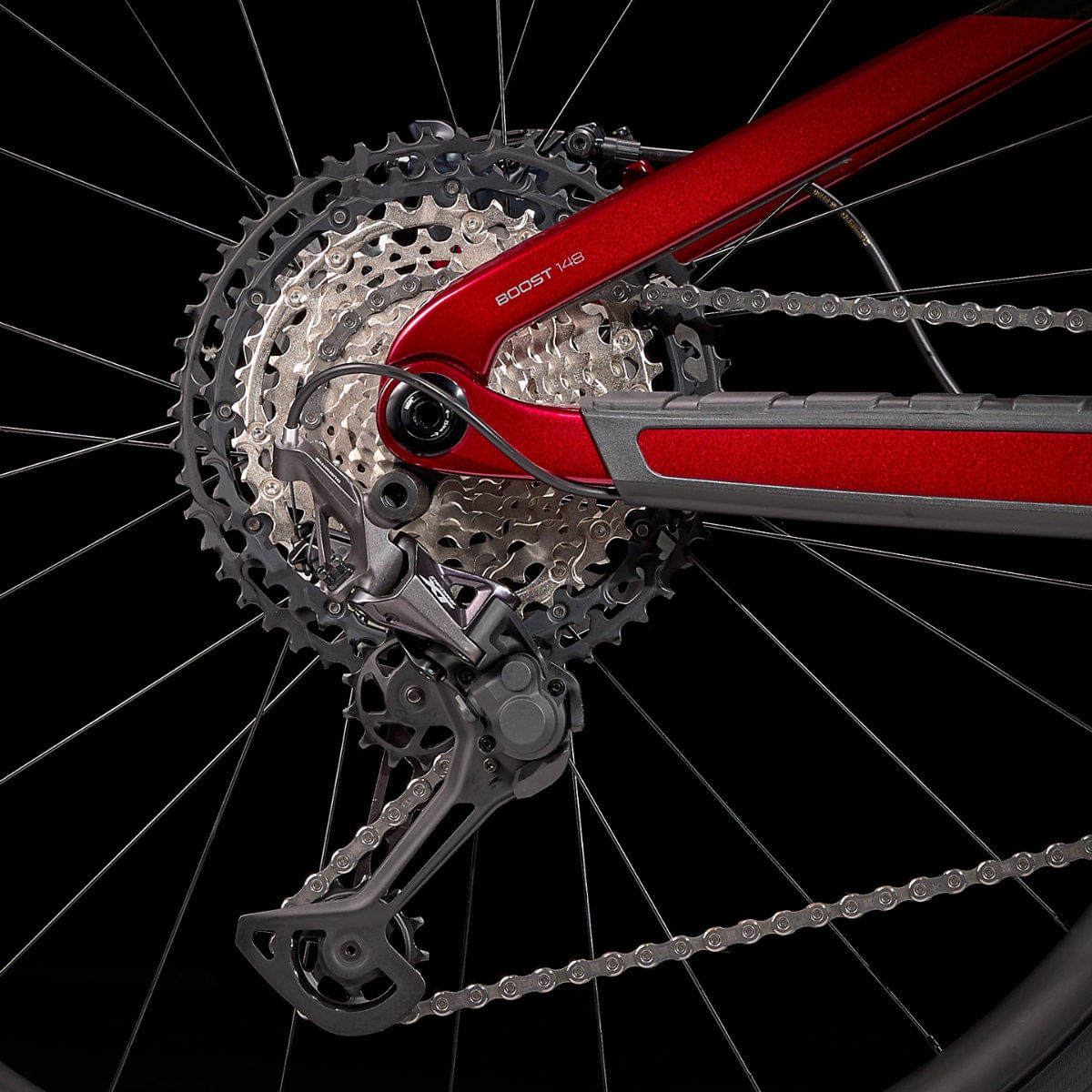

    • Rear derailleur
      Shimano XT M8100, long cage
    • Cassette
      Shimano XT M8100, 10-51, 12 speed
    • Chain
      Shimano Ultegra/XT M8100, 12 speed
    • Shifter
      Shimano XT M8100, 12 speed
    • Crank
      Shimano XT M8100, 30T alloy ring, Boost, 52mm chainline, 175mm length
    • Bottom bracket
      Shimano MT500, 92mm, PressFit
  • Wheels & Tires
    • Skewer rear
      Bontrager Switch thru axle, removable lever
    • Tire
      Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40"
  • Cockpit
    • Stem
      Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
    • Handlebar
      Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
    • Grips
      Bontrager XR Trail Elite, alloy lock-on
    • Saddle
      Bontrager Arvada, austenite rails, 138mm width
    • Seatpost
      Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
    • Headset

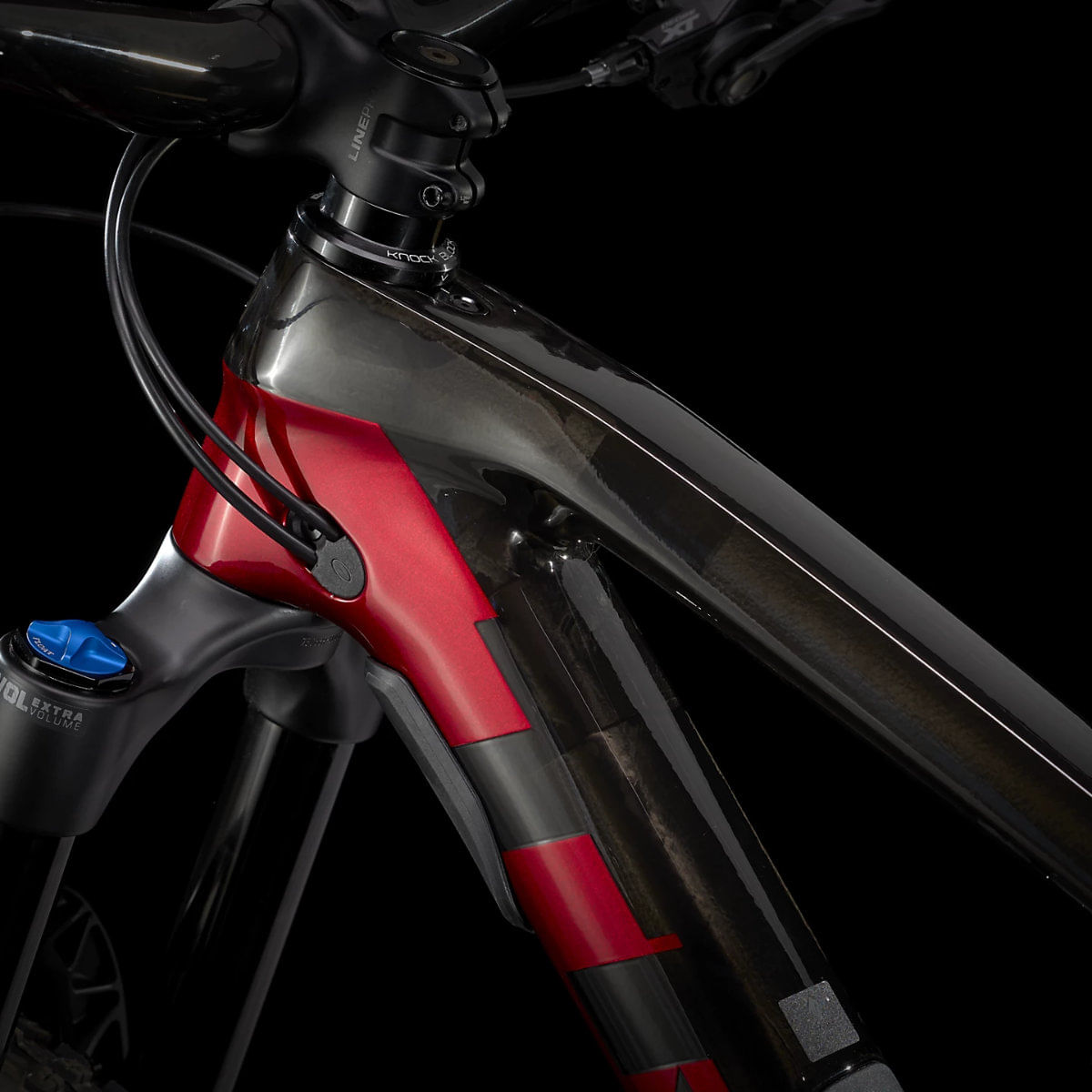

      Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Other
    • Wheel front
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
    • Wheel rear
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"
    • Bag
      Bontrager BITS Internal Frame Storage Bag
