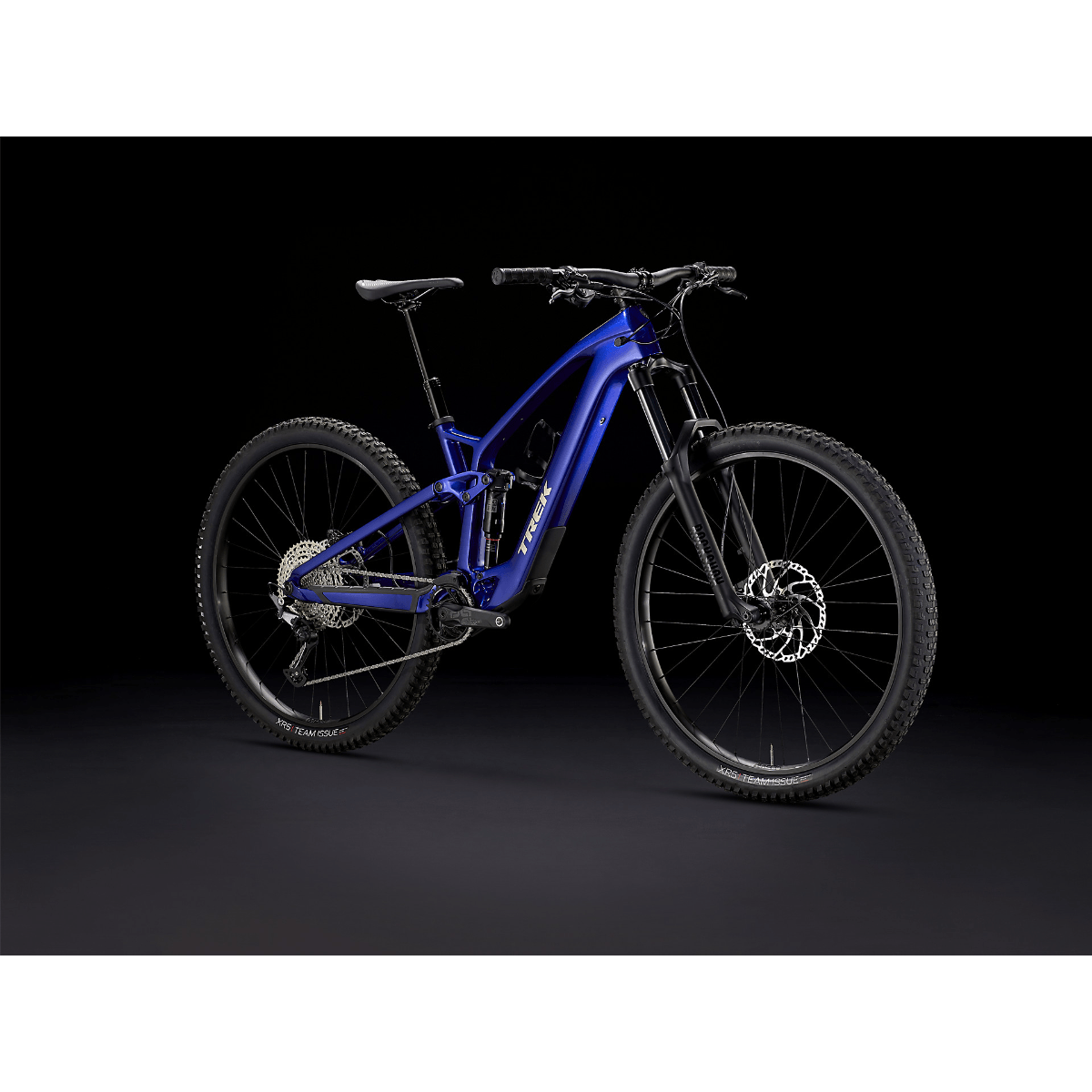

Trek Fuel EXe 9.5 eBike - 2023

Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It's built up with a 150mm RockShox Gold RL fork that makes quick work of rock gardens, and 140mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.

Features

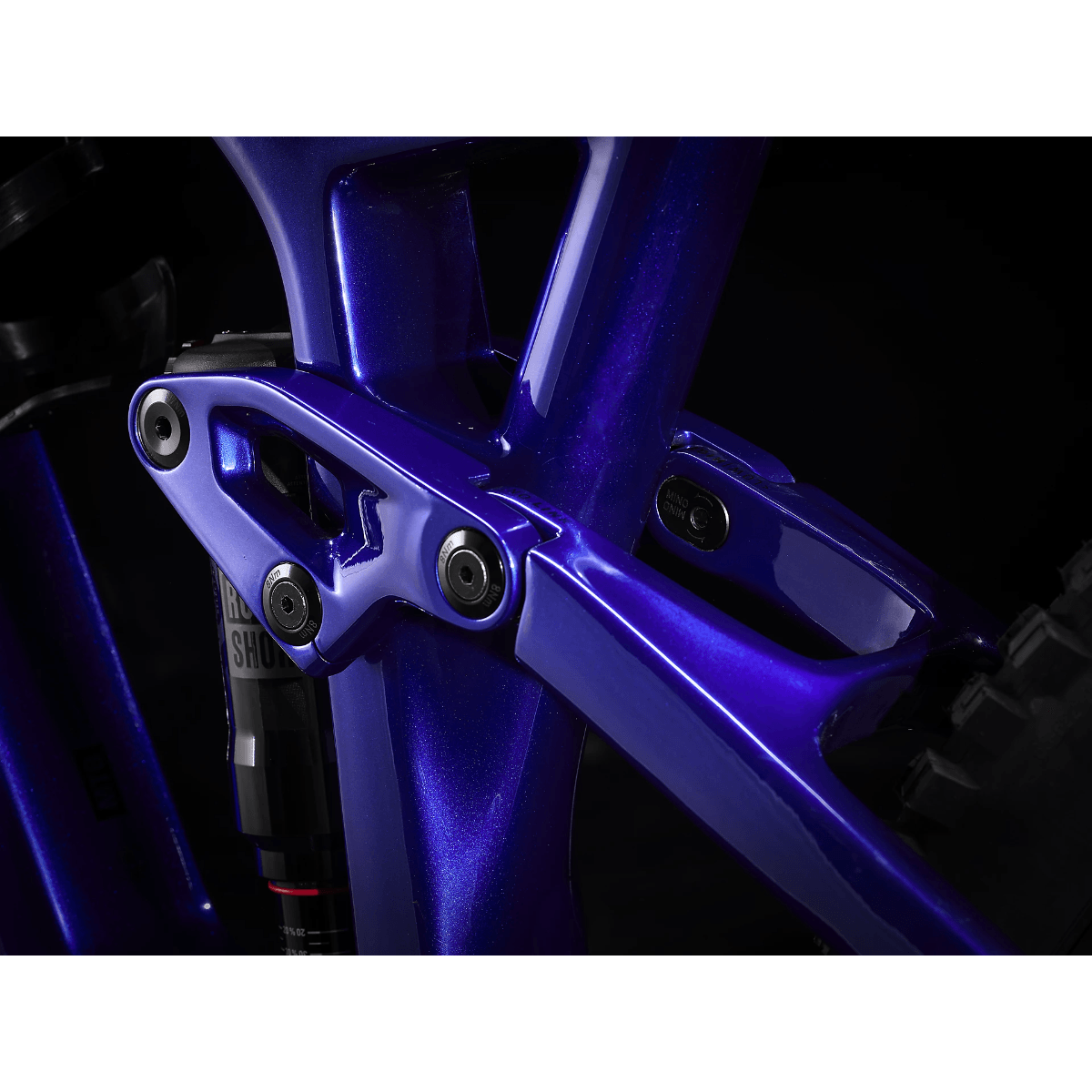

Active Braking Pivot - Active Braking Pivot allows Trek engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

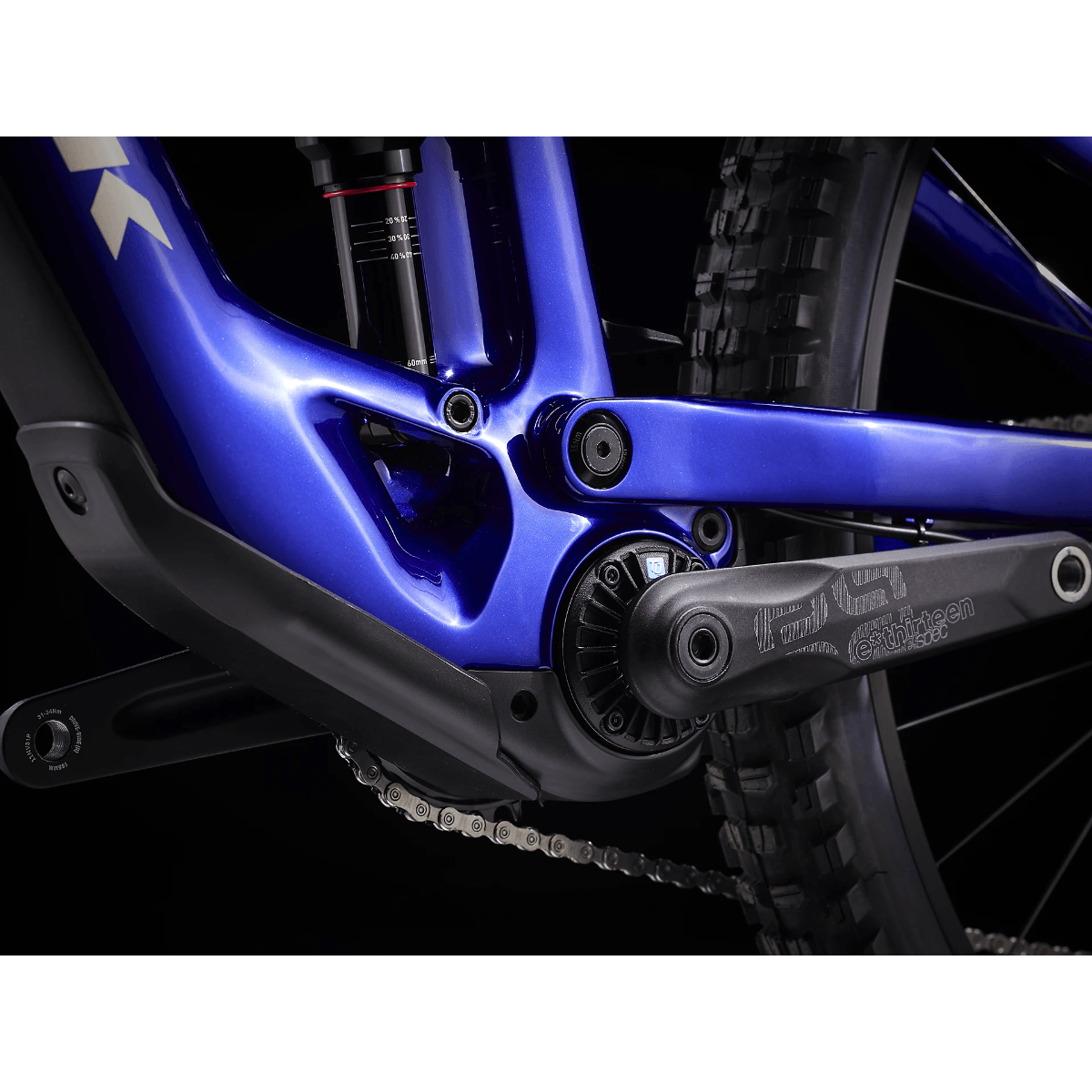

TQ-HPR50 - TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that's small, ultra-quiet, and unbelievably natural feeling.

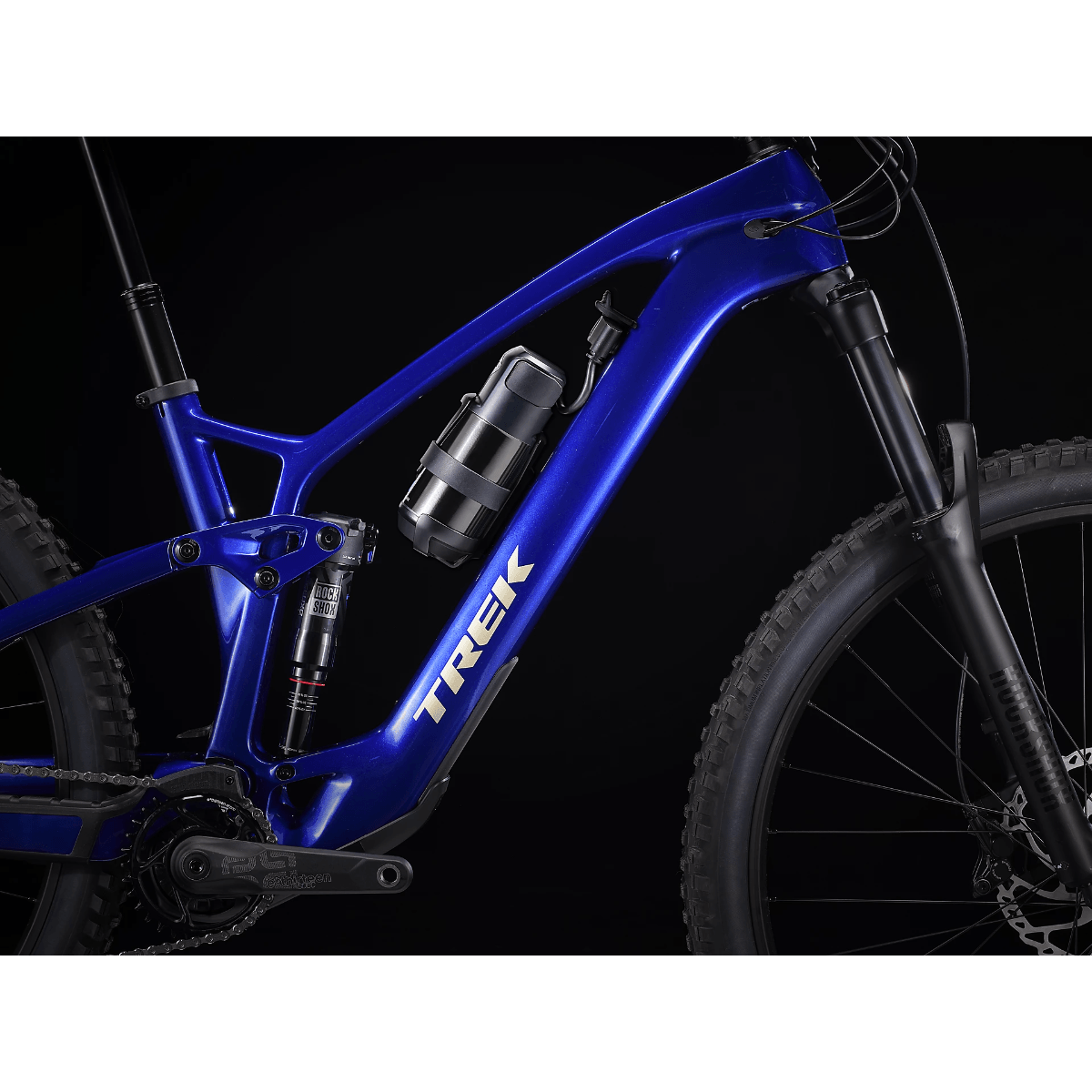

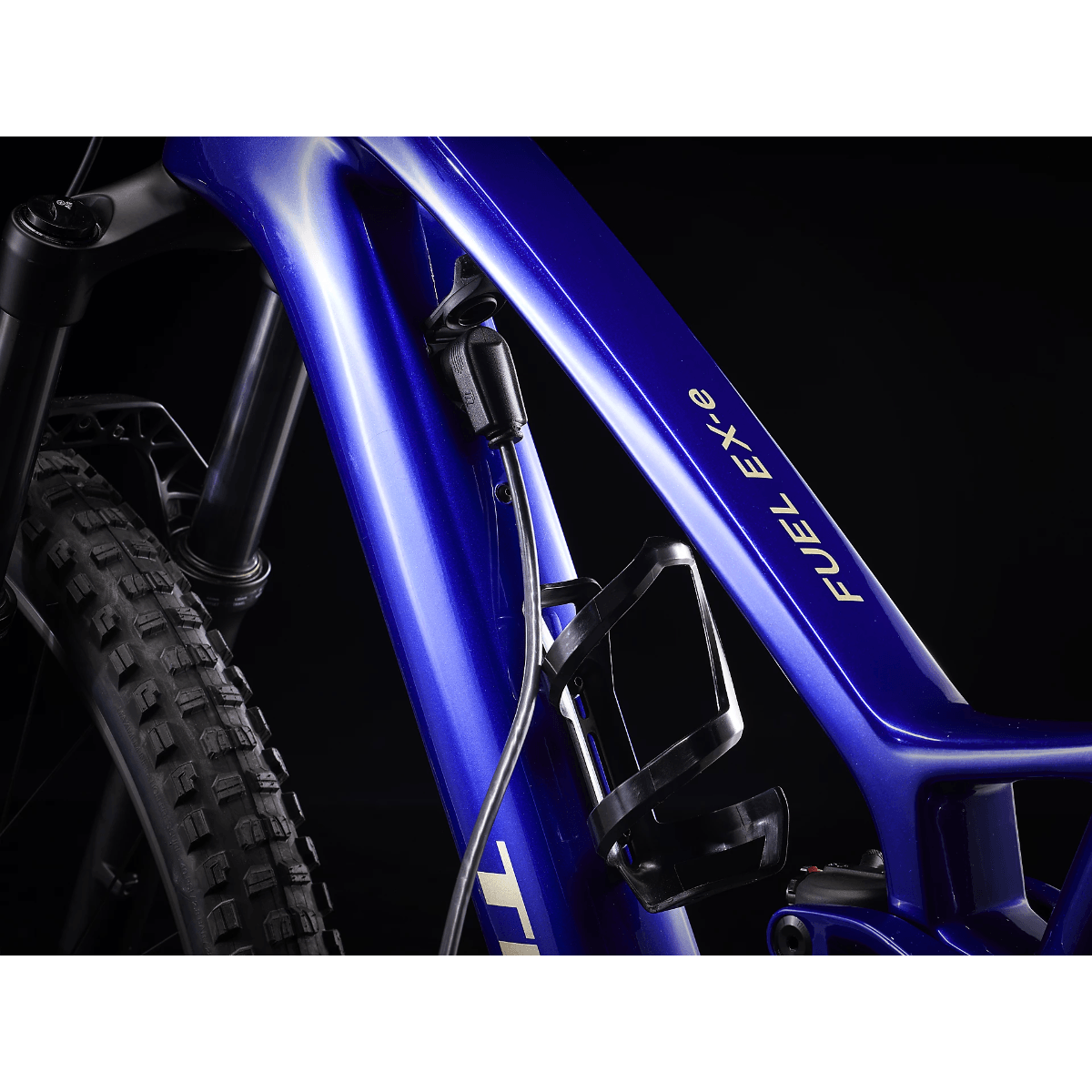

Range Extender - Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn't require any complicated wiring or special mounts.

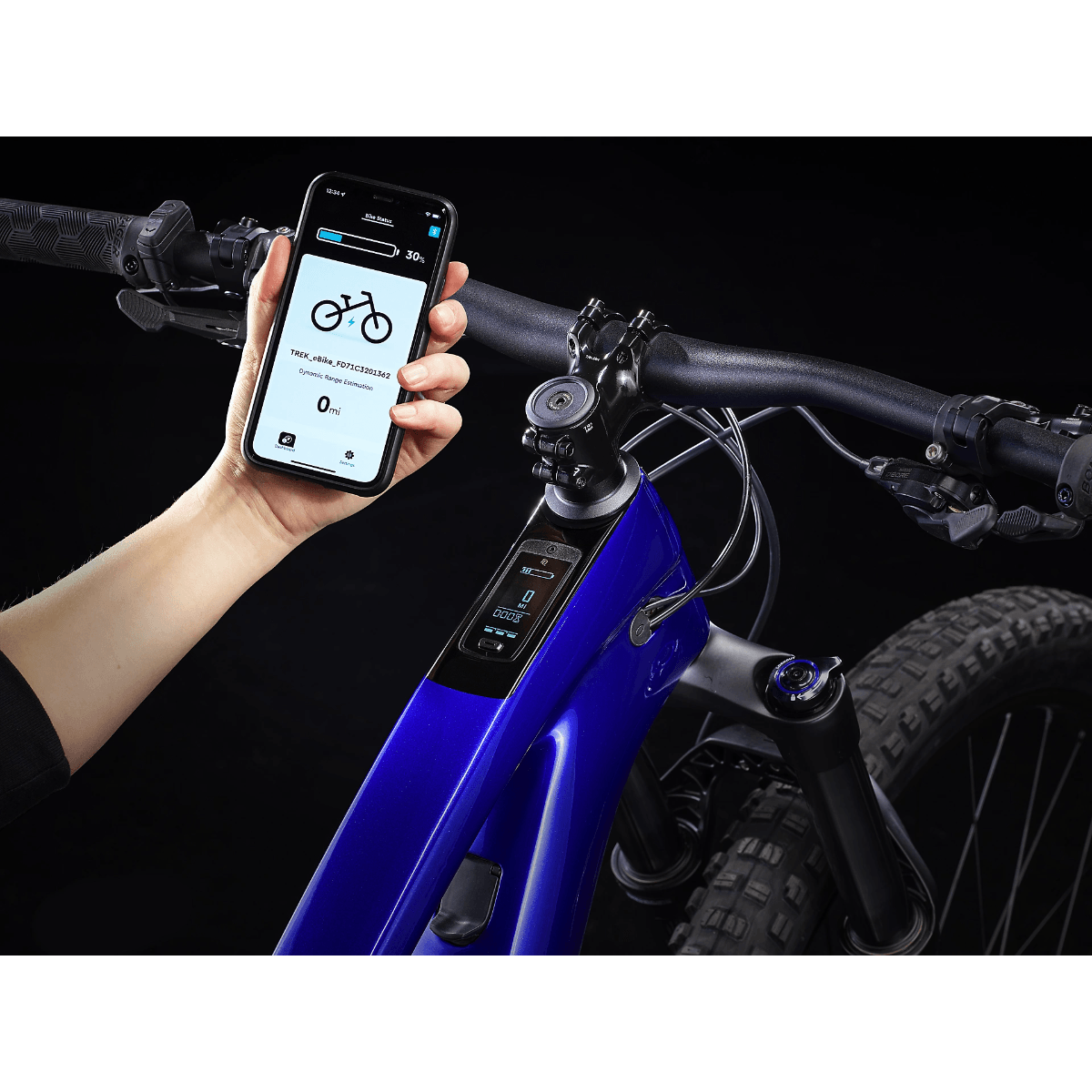

Connect, customize, calculate - The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyze and personalize your ride. You even get navigation features and real-time range calculations.

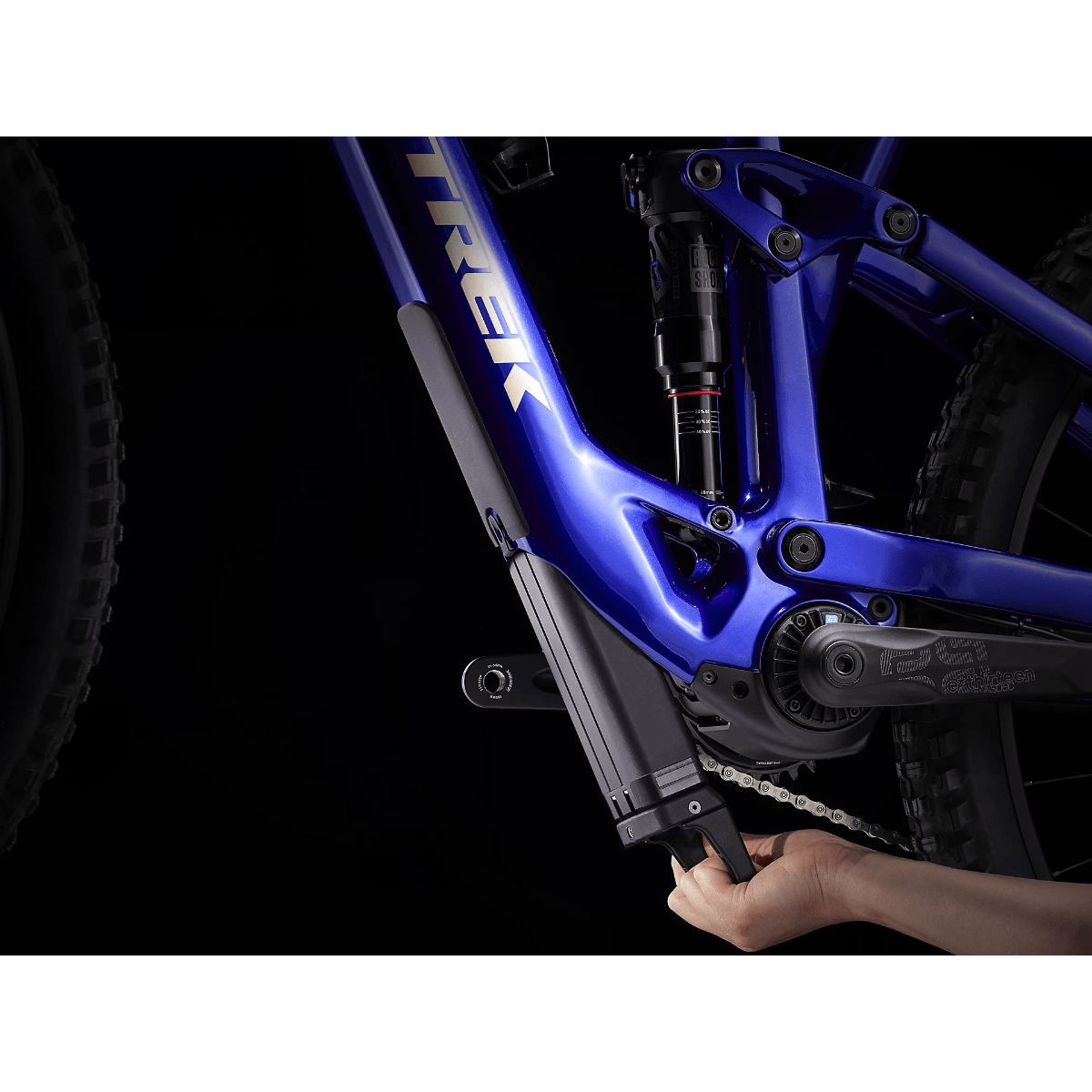

Removable battery - The 360 Wh battery gives you power for 2-5 hours. It's concealed in the downtube, but it's still easy to remove for more convenient charging.
Shimano Deore - Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.
150mm of buttery-smooth front travel pairs with 140mm of rear suspension to eat up rocks and roots for a ride that's ready to tackle anything
Weight (Size M) - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)

Components

Frame - OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork - RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

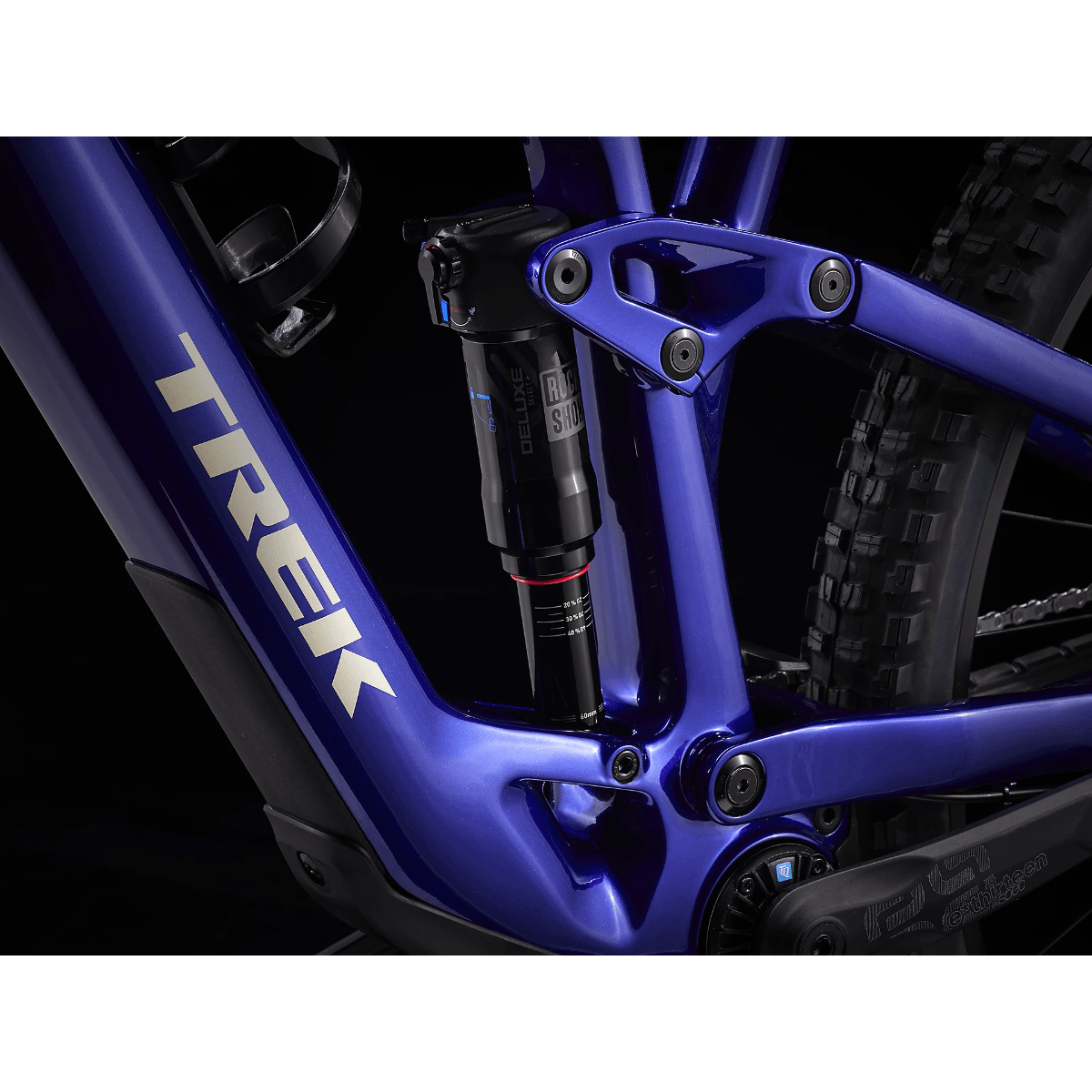

Shock - RockShox Deluxe Select+ RT, 205mm x 60mm
Hub front - Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear - Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear - Bontrager Switch thru axle, removable lever
Rim - Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Spokes - 14g stainless steel, black
Tire - Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Battery - TQ 360Wh
Charger - TQ 4A charger

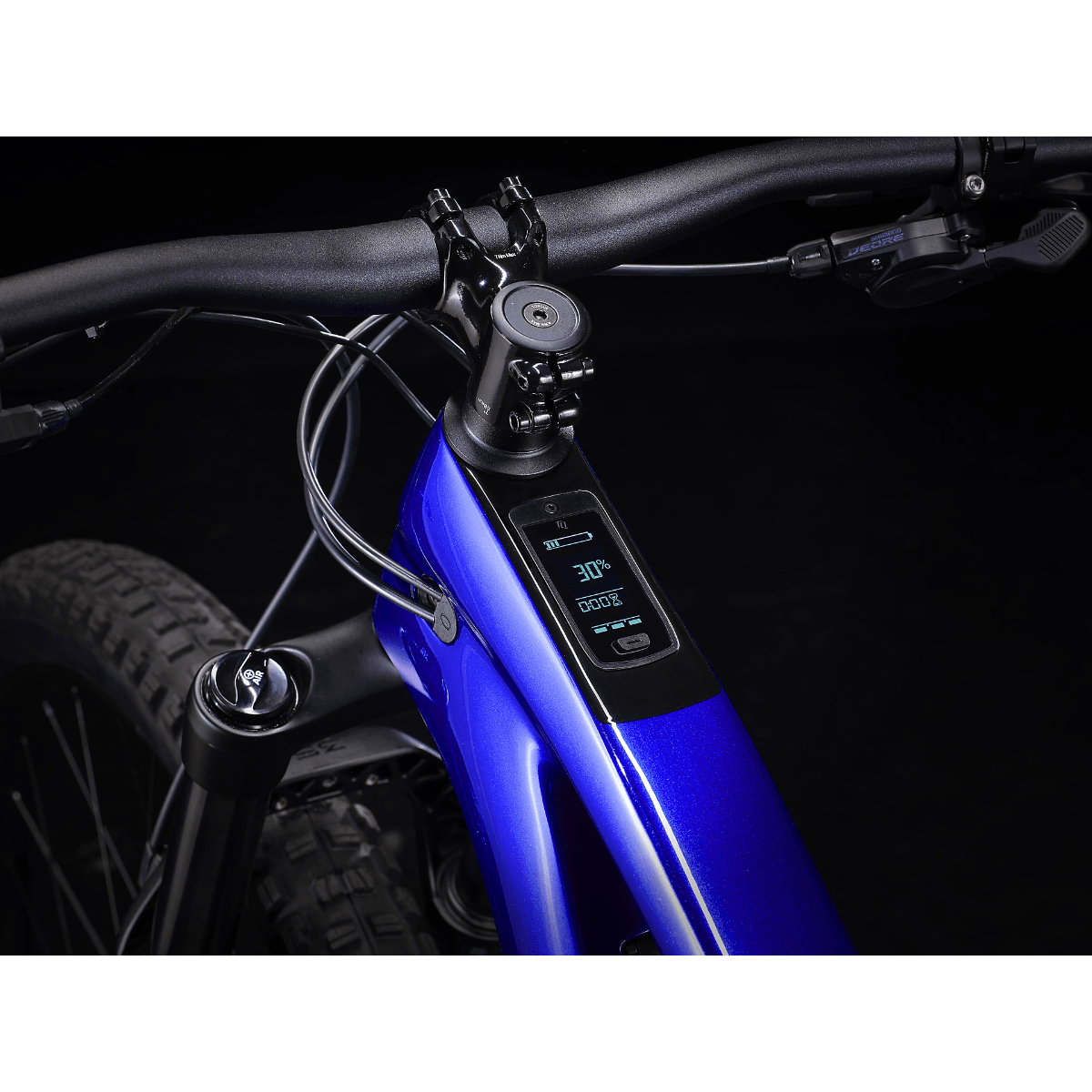

Computer - TQ LED display with Bluetooth & ANT+ connectivity
Motor - TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

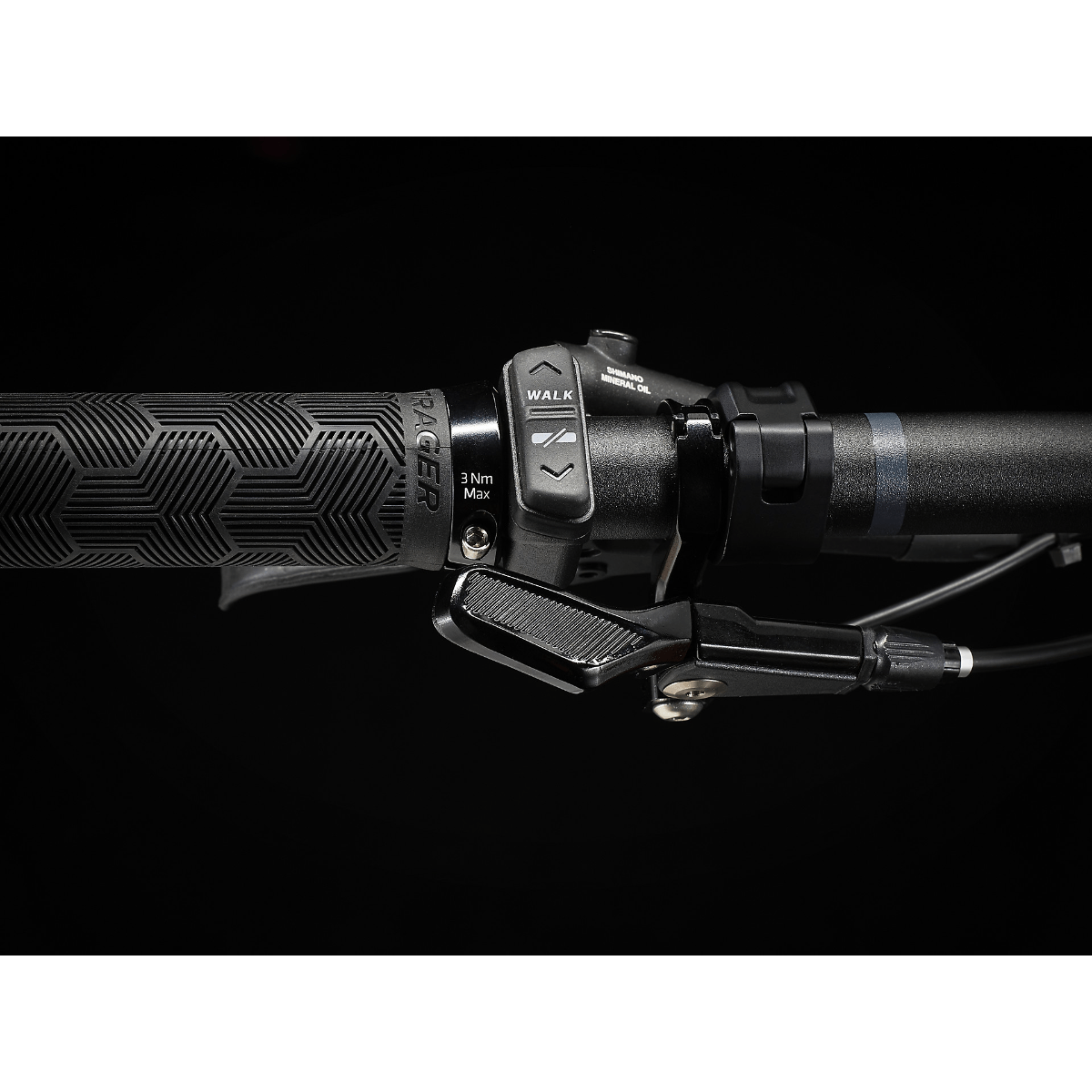

Shifter - Shimano Deore M6100, 12 speed
Rear derailleur - Shimano Deore M6100, long cage
Crank - E*thirteen E*spec Plus, 165mm length
Chainring - E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette - Shimano Deore M6100, 10-51, 12 speed
Chain - Shimano Deore M6100, 12 speed
Saddle - Bontrager Arvada, steel rails, 138mm width
Seatpost (S) - TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
Seatpost (M) - TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
Seatpost (L, XL) - TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar - Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips - Bontrager XR Trail Comp, nylon lock-on
Stem - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

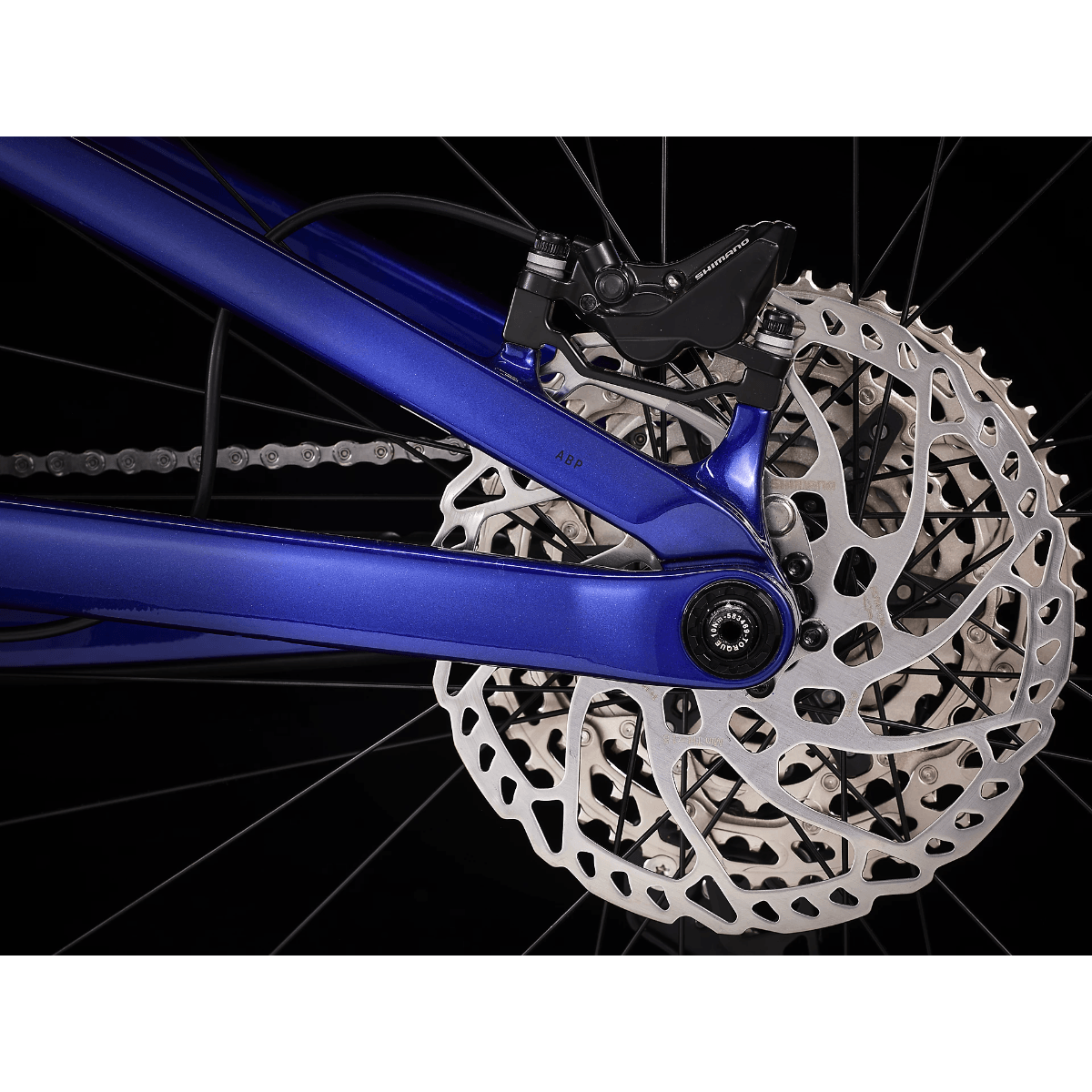

Brake - Shimano hydraulic disc, MT4100 lever, MT420 4-piston caliper
Brake rotor - Shimano RT66, 6-bolt, 203mm
