Fuel EXe 9.8 XT eBike - 2023

0.0|reviews
ID:

1112081

$8,699.99$5,899.9332% off
Color:Mulsanne Blue* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

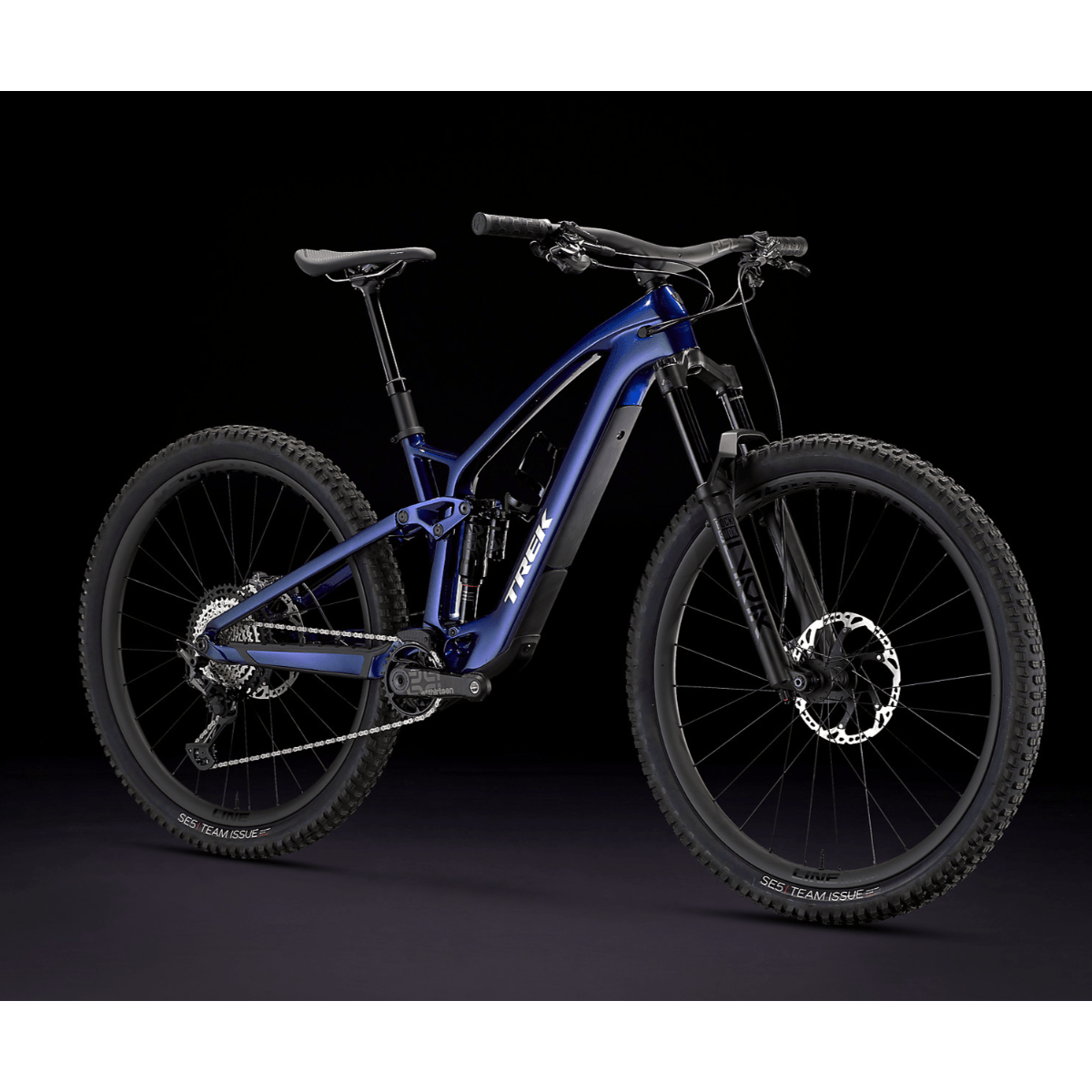

Fuel EXe 9.8 XT is a new breed of mountain bike that brings nearly invisible power to the trail in an e-package that's compact and adapts to your riding. It's fully loaded with a tiny but mighty TQ transmission that gives you assist when you need it but disappears for a true trail bike feel on descents. A carbon fiber frame keeps your ride light and responsive, and an upgraded RockShox suspension package pairs with Shimano XT shifting to finish the build with the perfect balance of performance and price.

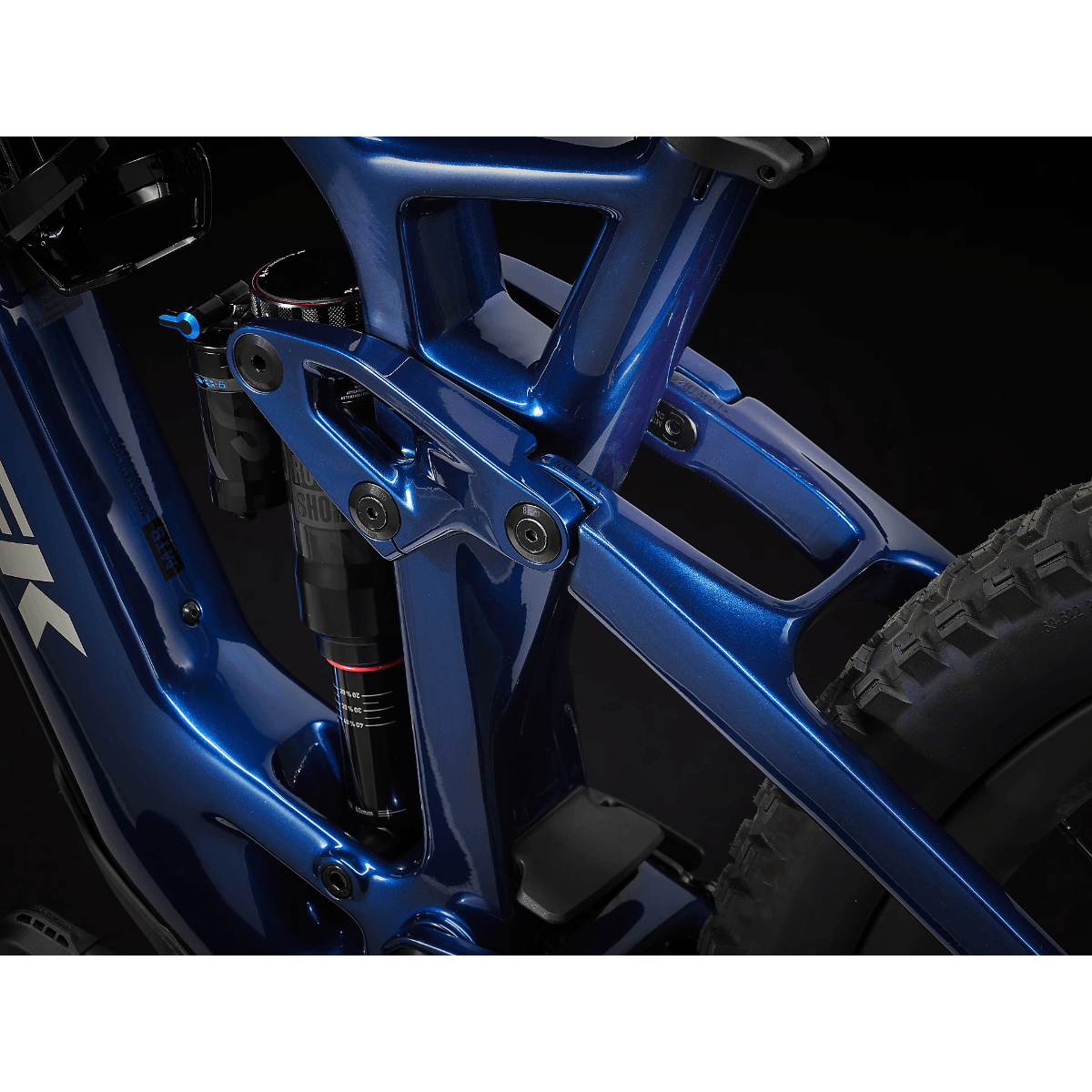

  • Active Braking Pivot - Active Braking Pivot allows Trek engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
  • TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that's small, ultra-quiet, and unbelievably natural feeling.

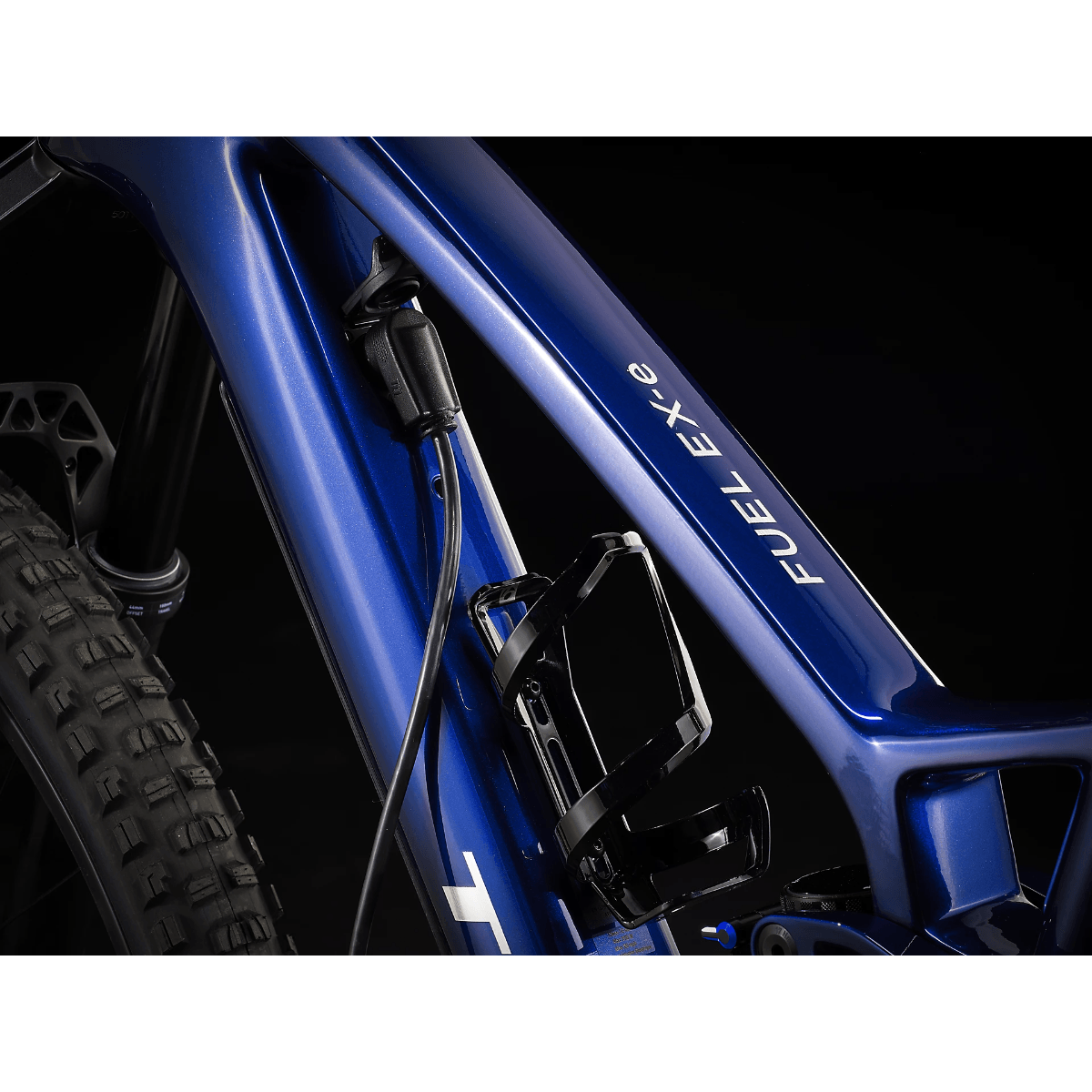

  • Range Extender - Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn't require any complicated wiring or special mounts.
  • Removable battery - The 360 Wh battery gives you power for 2-5 hours. It's concealed in the downtube, but it's still easy to remove for more convenient charging.
  • Suspension Calculator - This suspension calculator will help you optimize your suspension settings for your riding weight. Simply follow the steps to find your best set up.
  • Complete Tubeless System - Tubeless Ready rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.

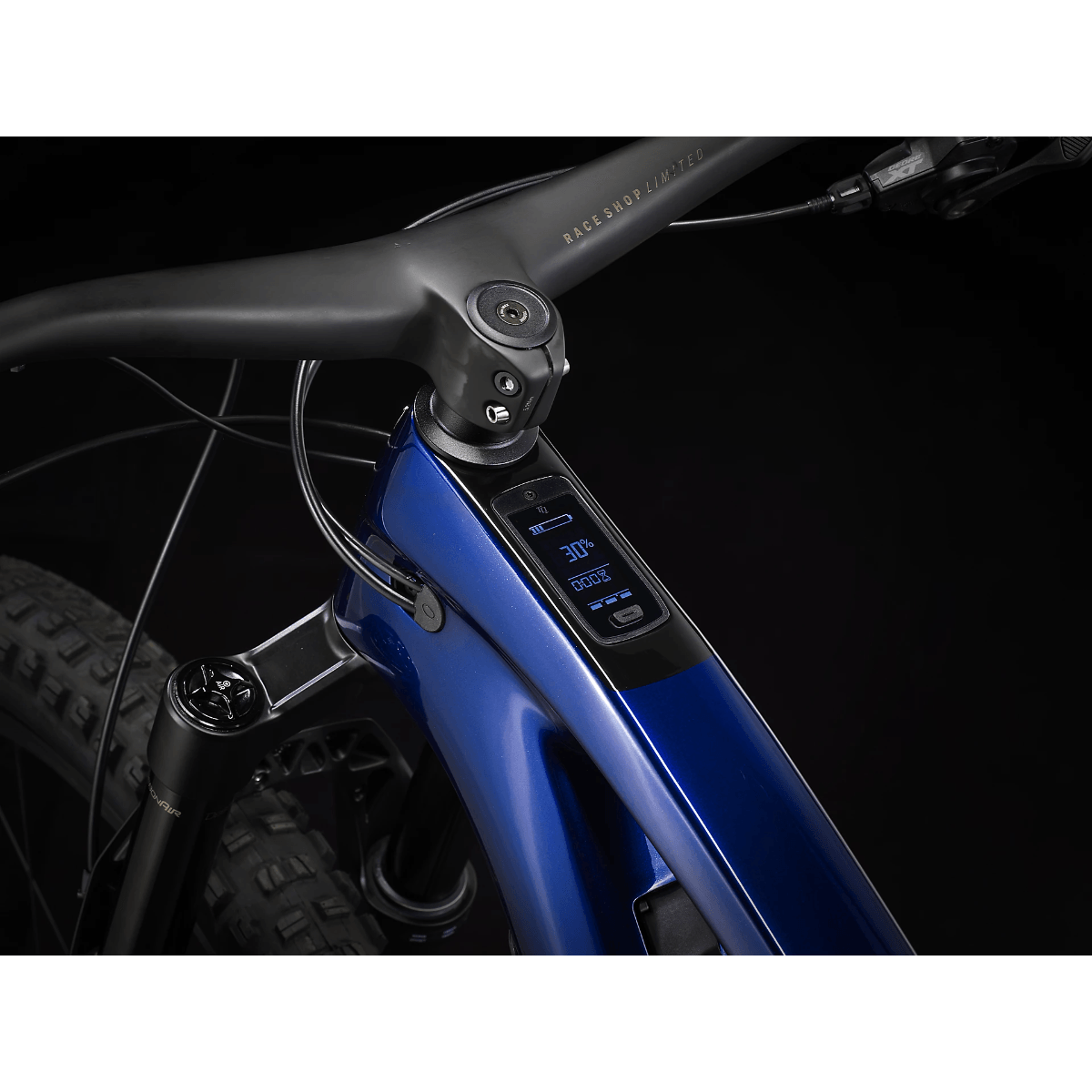

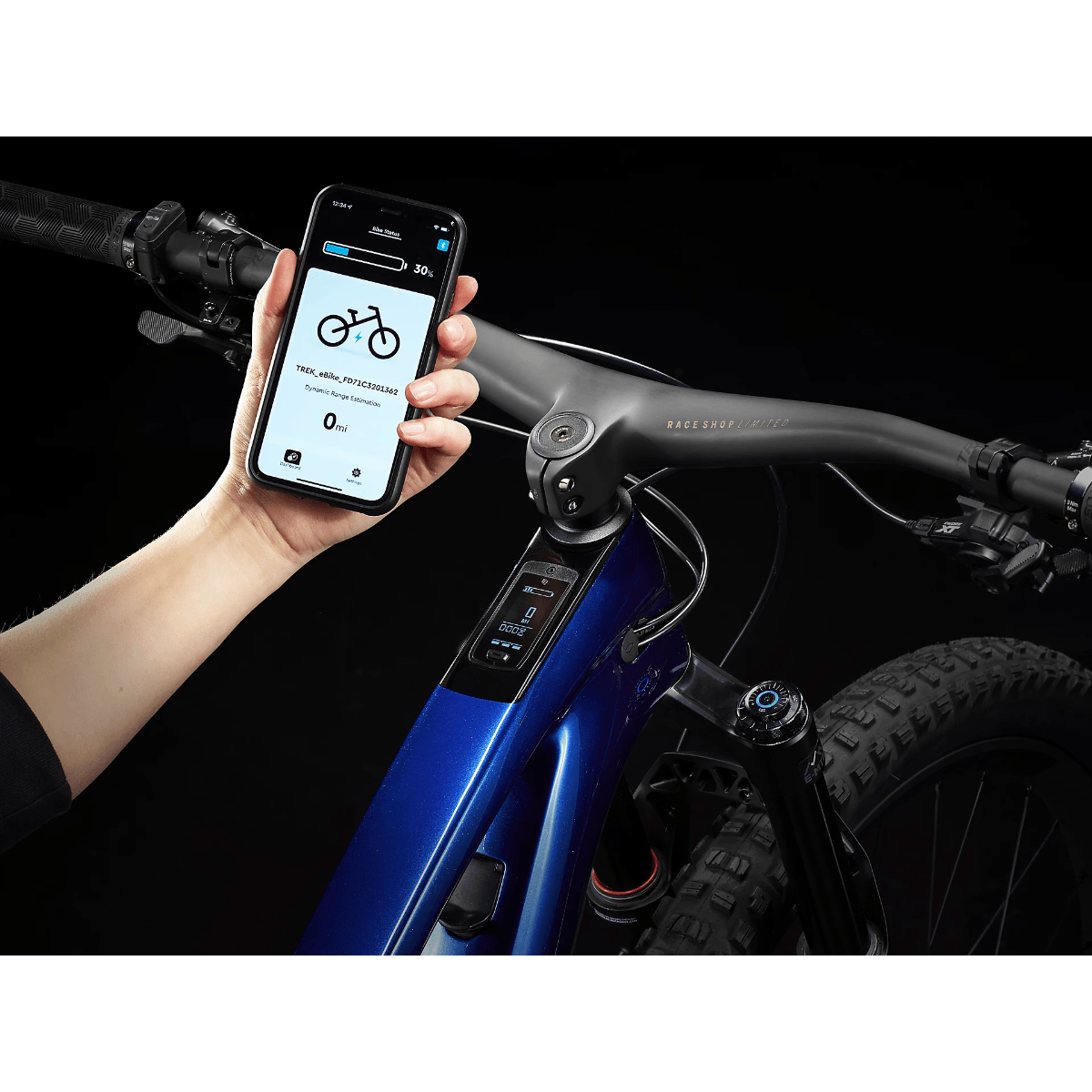

  • Integrated display - Fuel EXe's display is simple to use and protected in the top tube. Check your assist level, range, speed, and more at a glance.
  • Rapid Drive 108 rear hub - With 108 points of engagement Rapid Drive gives you nearly instant acceleration instead of a clunky lag when you step on the pedals. You get smooth, immediate power to blast out of corners and hammer through the rough stuff. And that extra pedal ratchet adds control that can make all the difference when tackling a tricky climb.

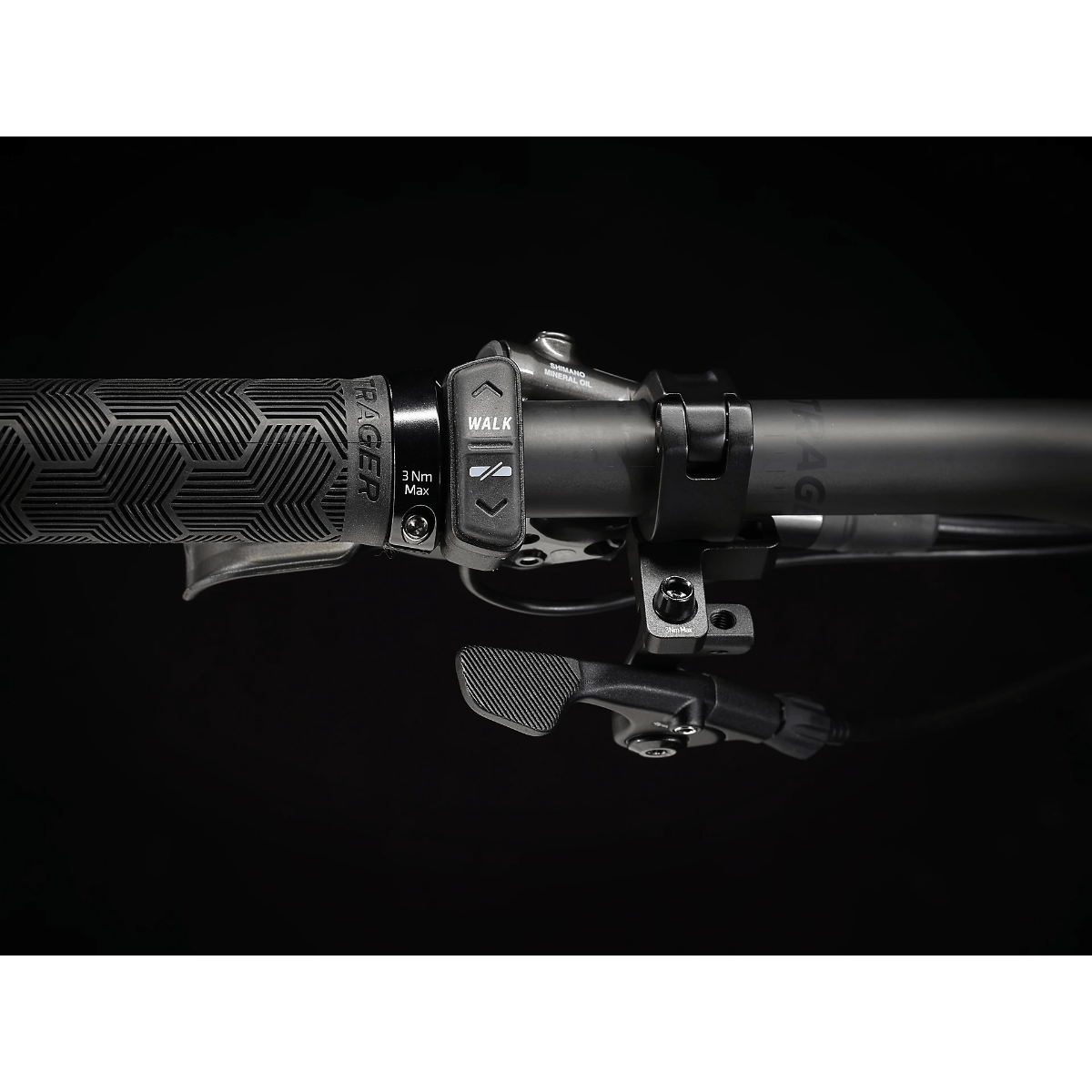

  • Sleek and simple remote - Toggle between assist modes or engage the walk-assist function with the ergonomic low-profile remote.
  • Oversized 34.9mm dropper post - Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.

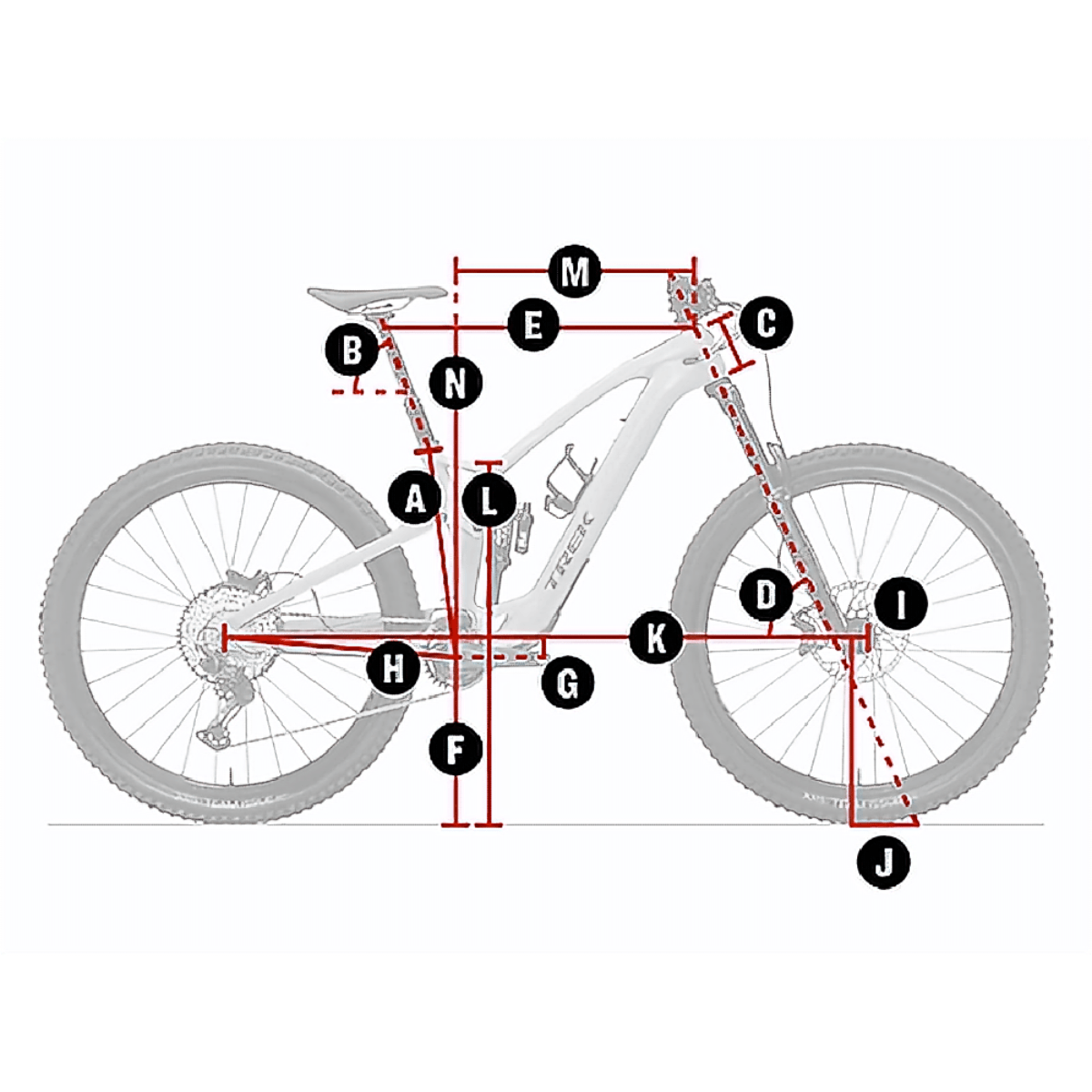

  • Mino Link adjustable geometry - Fine tune head tuble angle by 1/2 degrees and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
  • 150mm RockShox Lyrik Select+ fork with DebonAir spring and Charger 2.1 RC damper, and 140mm RockShox Super Deluxe Select+ rear suspension.
  • Weight (Size M) - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes)

Tech Specs

  • E-Bike
    • Motor
      TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
    • Battery
      TQ 360Wh
    • Charger
      TQ 4A charger
    • Computer
      TQ LED display with Bluetooth & ANT+ connectivity
  • Frameset
    • Frame
      OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
  • Suspension
    • Fork
      RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
    • Shock
      RockShox Super Deluxe Select+ RT, 205mm x 60mm
  • Brakes
    • Brake rotor

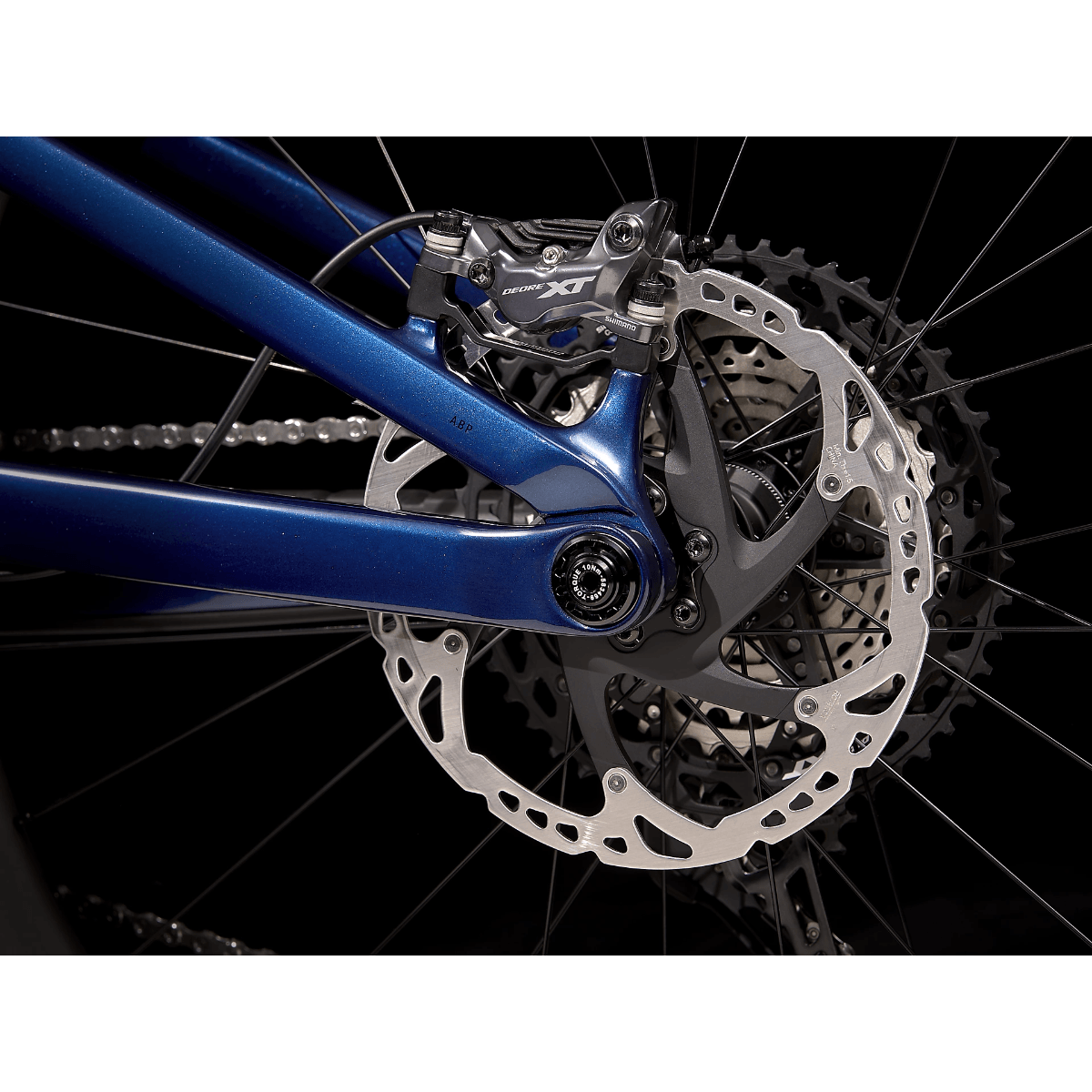

      Shimano RT86, 6-bolt, 203mm
    • Brake rotor
      Shimano RT86, 6-bolt, 180mm
    • Brake
      Shimano XT M8120 4-piston hydraulic disc
  • Drivetrain
    • Crank arm
      E*thirteen E*spec Race carbon, 165mm length
    • Rear derailleur
      Shimano XT M8100, long cage
    • Cassette
      Shimano XT M8100, 10-51, 12 speed
    • Chain
      Shimano Ultegra/XT M8100, 12 speed
    • Shifter
      Shimano XT M8100, 12 speed
  • Wheels & Tires
    • Skewer rear
      Bontrager Switch thru axle, removable lever
    • Tire
      Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"
  • Cockpit
    • Seatpost (M)
      Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
    • Seatpost (L)
      Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
    • Handlebar/stem (integrated)
      Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
    • Stem
      Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
    • Handlebar
      Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
    • Grips
      Bontrager XR Trail Elite, nylon lock-on
    • Saddle
      Verse Short Comp, steel rails, 145mm width
    • Headset
      Integrated cartridge bearing, 1-1/8" top, 1.5" bottom
  • Other
    • Wheel front
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
    • Wheel rear
      Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"
    • Chainring
      E*thirteen E*spec, 32T alloy ring, 55mm chainline
