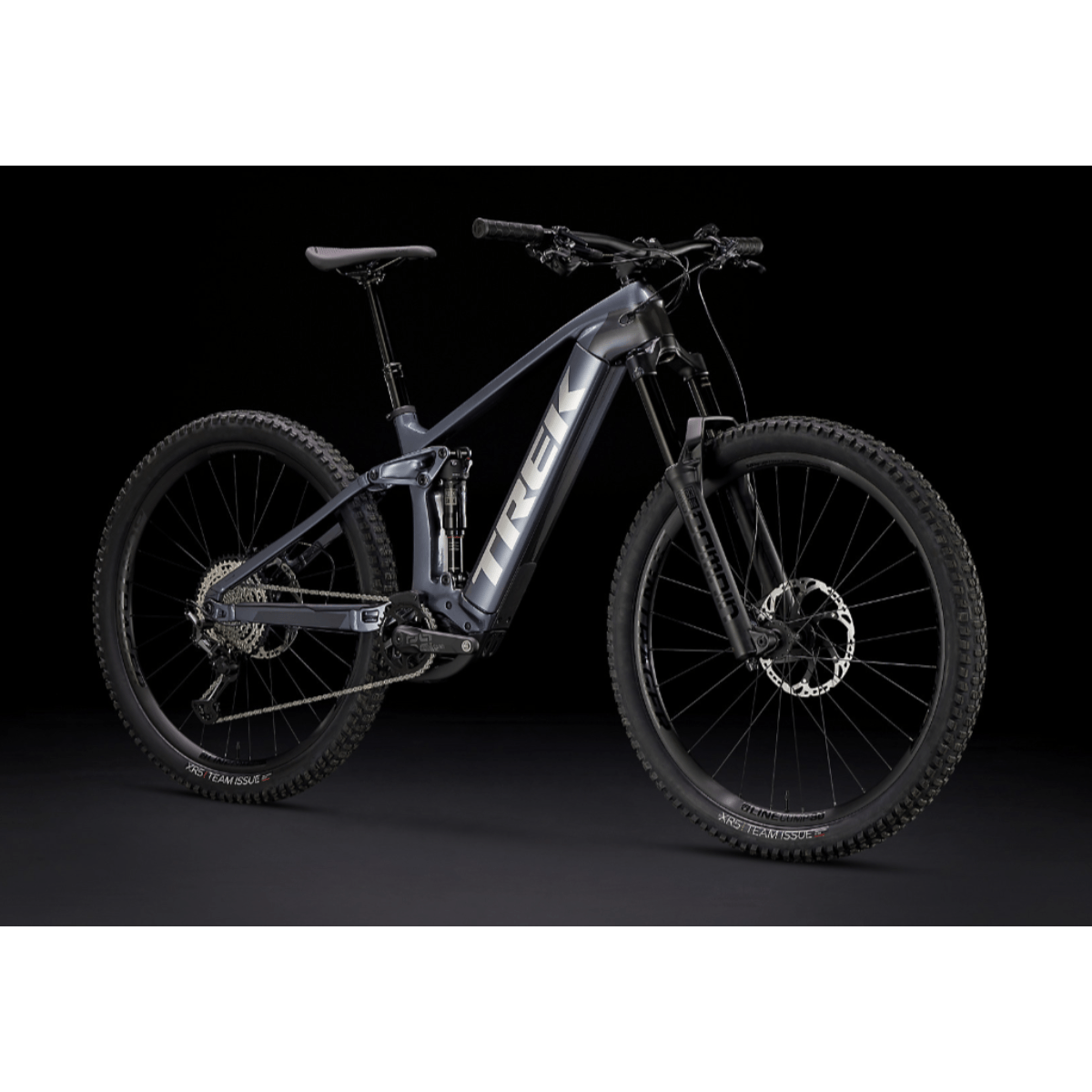

Rail 9.7 Gen 4 eBike - 2024

0.0|reviews
ID:

1317168

$7,549.99 - $7,749.99$4,999.9933% off
Color:Galactic Grey* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

Rail 9.7 is a long-travel carbon electric mountain bike that gets you to the fun stuff faster. It's decked out with an upgraded frame that offers more reach for serious stability on the trail, and a Bosch smart system drive unit with a beefy 750Wh battery that makes the climbs go by fast, and the laps feel endless.

  • Rail Gen 4 features a pocket in the top tube, so you can easily upgrade to Bosch's latest System Controller and Mini Remote if you're craving a cleaner setup
  • Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools, and lets you mount a water bottle cage
  • Bosch's smart system gives you all the same power and responsiveness with a Bluetooth-connected LED remote and eBike Flow app that puts even more control and customization at your fingertips
  • The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
  • The frame is extra-stout with a 34.9mm seat tube to accommodate more robust dropper posts, and an oversized head tube that works with burly e-MTB optimized forks for less flex and more precise steering
  • 160mm RockShox Domain fork, and 150mm RockShox Deluxe Select+ rear shock
  • 1x12 Shimano SLX/XT drivetrain
  • Active Braking Pivot allows Trek's engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
  • The new eBike Flow app turns your ride into a personalized experience. Use it to customize your motor's assist behavior, track your ride stats, and integrate your data with apps like Strava and Apple Health. There's even handy features like navigation and service reminders.
  • Weight (Size M) - 24.28 kg / 53.53 lbs (with TLR sealant, no tubes)

Tech Specs

  • E-Bike
    • Battery (S)
      Bosch PowerTube 625Wh, smart system
    • Battery (M, L)
      Bosch PowerTube 750Wh, smart system
    • Motor

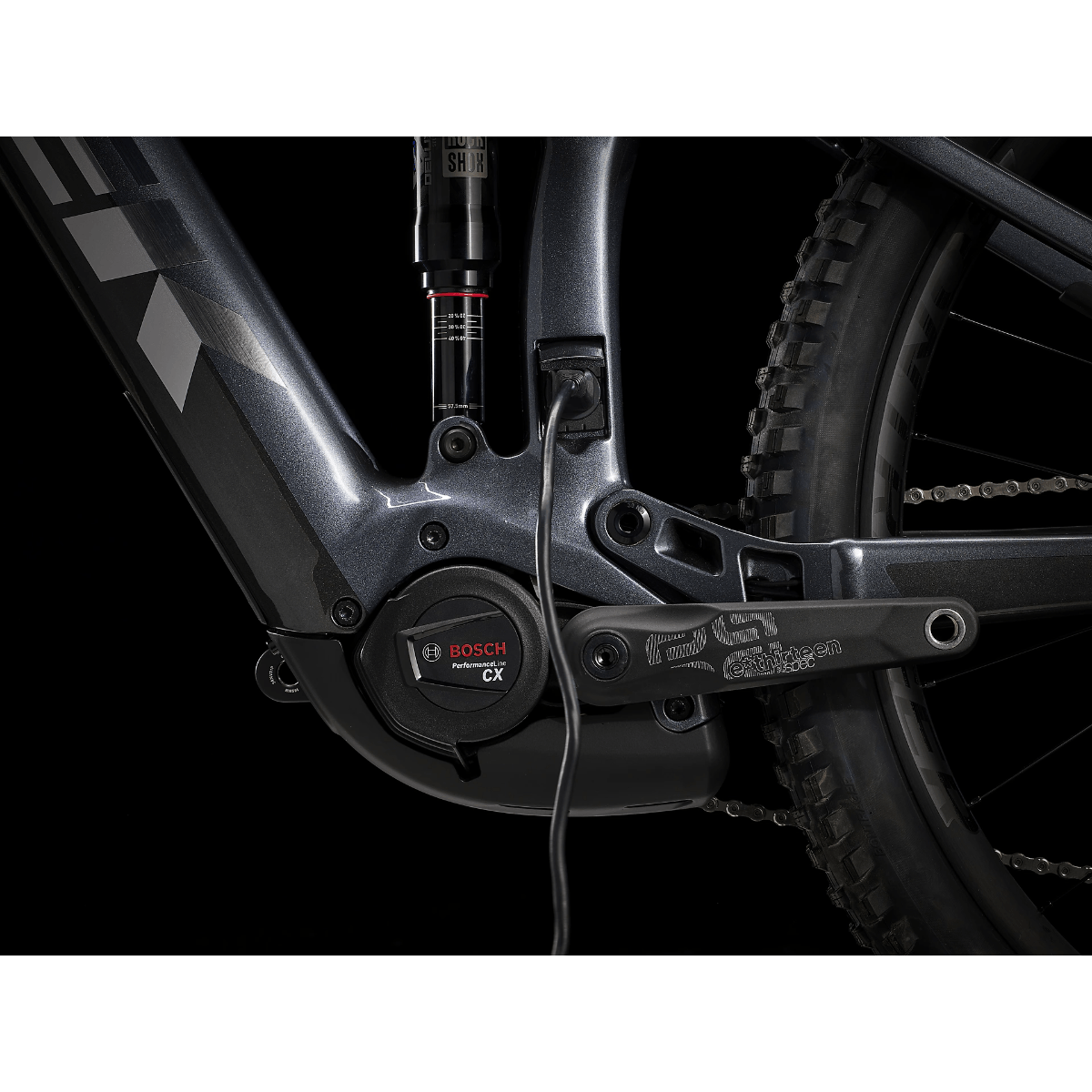

      Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
    • Controller
      Bosch System Controller BRC3100, smart system
    • Charger
      Bosch standard 2A, 110V, smart system
    • Charger
      Bosch standard 4A, 110V, smart system
    • Computer

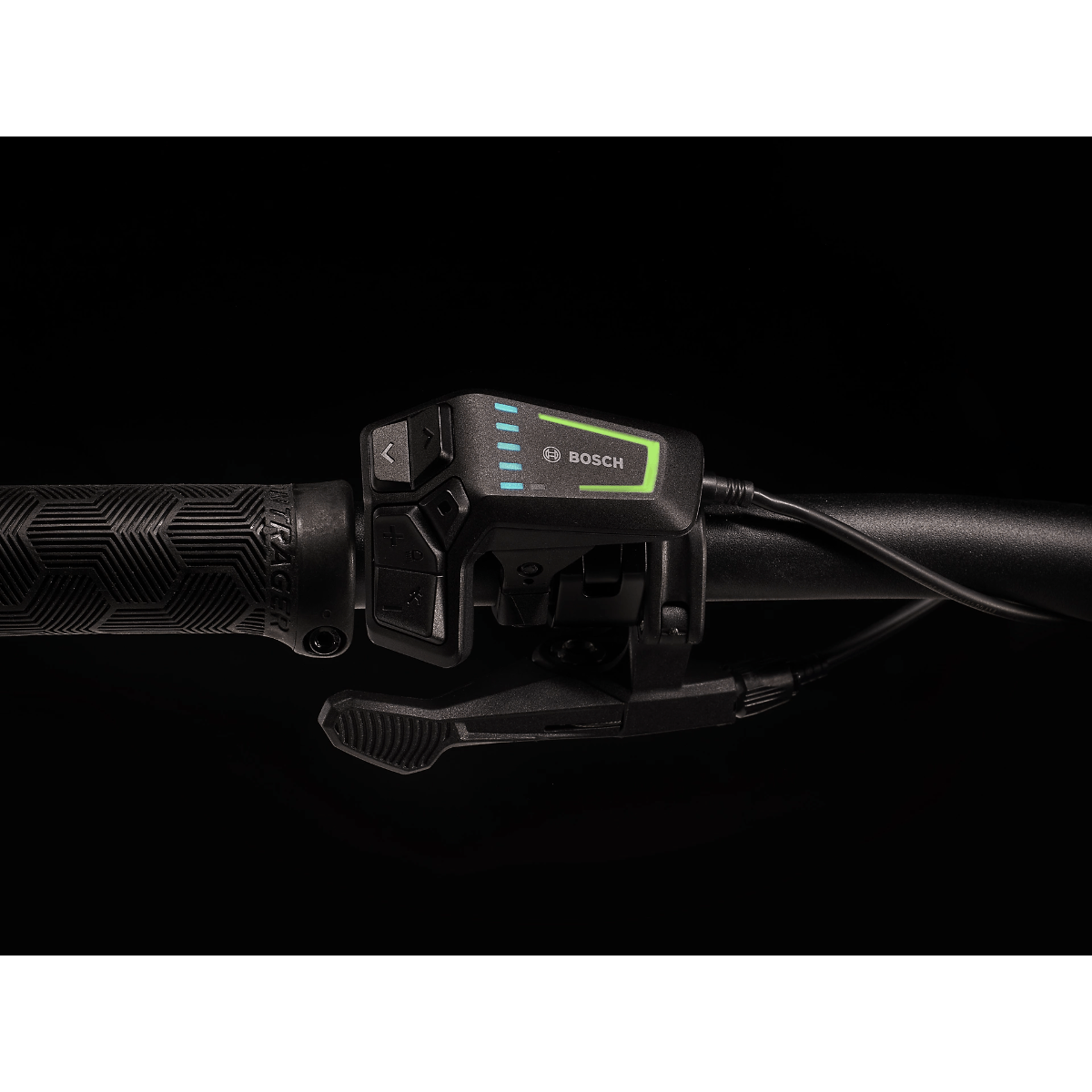

      Bosch LED remote, smart system
  • Frameset
    • Frame
      OCLV Mountain Carbon main frame, 1.8" lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
  • Suspension
    • Fork
      RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8" oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
    • Shock
      RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Brakes
    • Brake rotor
      Shimano RT76, 6-bolt, 203mm
    • Brake rotor
      Shimano RT86, 6-bolt, 203mm
    • Brake
      Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
  • Drivetrain
    • Crank arm
      E*thirteen E*spec Plus, 160mm length
    • Rear derailleur
      Shimano XT M8100, long cage
    • Cassette
      Shimano SLX M7100, 10-51T, 12 speed
    • Chain
      Shimano SLX M7100, 12 speed
    • Shifter
      Shimano SLX M7100, 12 speed
    • Crank
      E*thirteen E*spec Plus, 165mm length
  • Wheels & Tires
    • Skewer rear
      Bontrager Switch thru axle, removable lever
    • Tire
      Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
  • Cockpit
    • Seatpost (S)
      Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
    • Seatpost (M)
      Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
    • Seatpost (L)
      Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
    • Stem
      Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
    • Handlebar
      Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
    • Grips
      Bontrager XR Trail Comp, nylon lock-on
    • Saddle
      Bontrager Arvada, steel rails, 138mm width
    • Headset
      Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.8" bottom
  • Other
    • Wheel front
      Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
    • Wheel rear
      Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"
    • Chainring
      E*thirteen E*spec, 34T alloy, 55mm chainline
