Rail 9.9 X0 AXS Bike - 2024

Tech Specs

• E-Bike
  • Motor

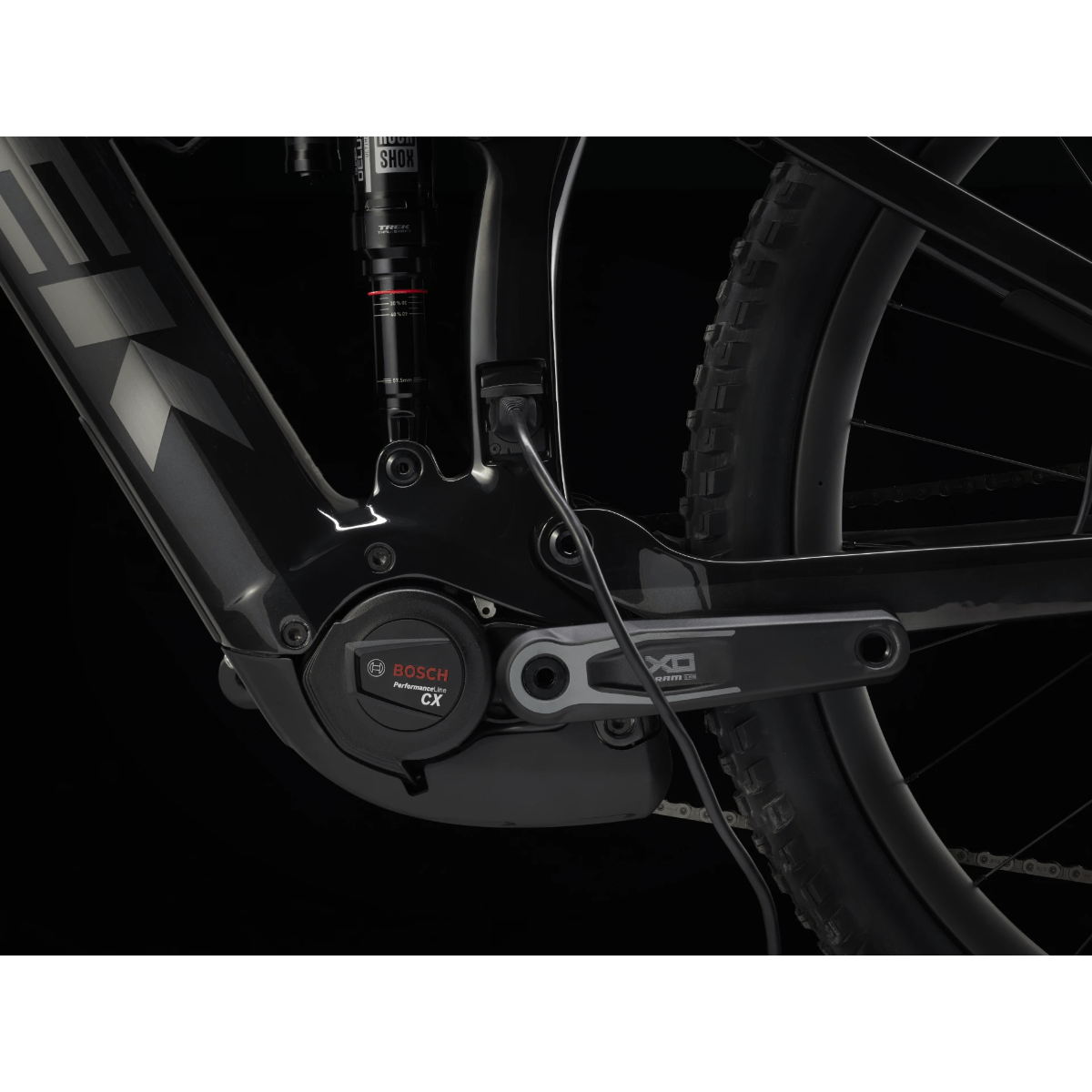

    Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Controller

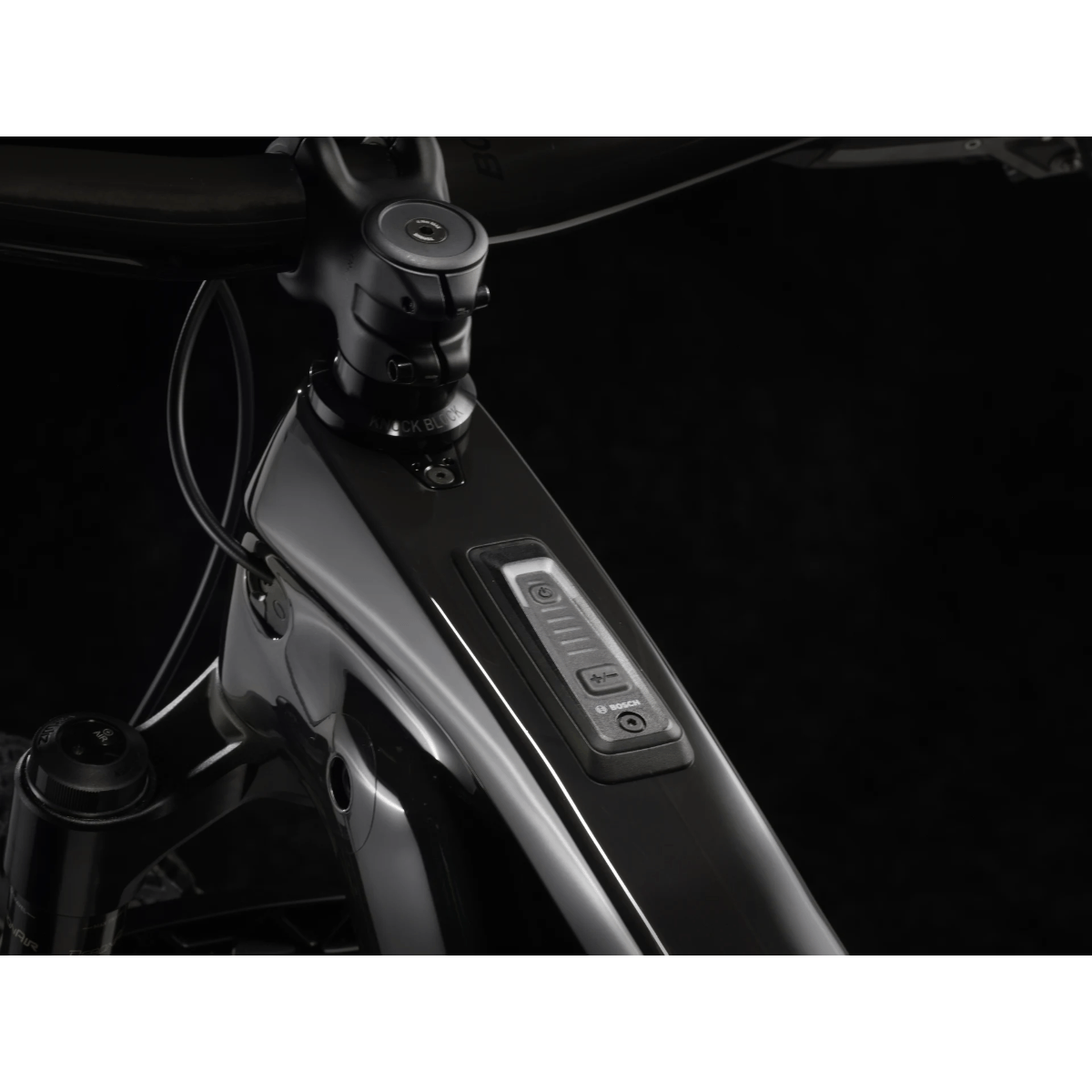

    Bosch System Controller BRC3100, smart system
  • Battery
    (Size S) Bosch PowerTube 625Wh, smart system, (Size M, L, XL) Bosch PowerTube 750Wh, smart system
  • Battery
    SRAM AXS battery pack (with charger)
  • Charger
    Bosch standard 4A, 110V, smart system
• Frameset
  • Frame

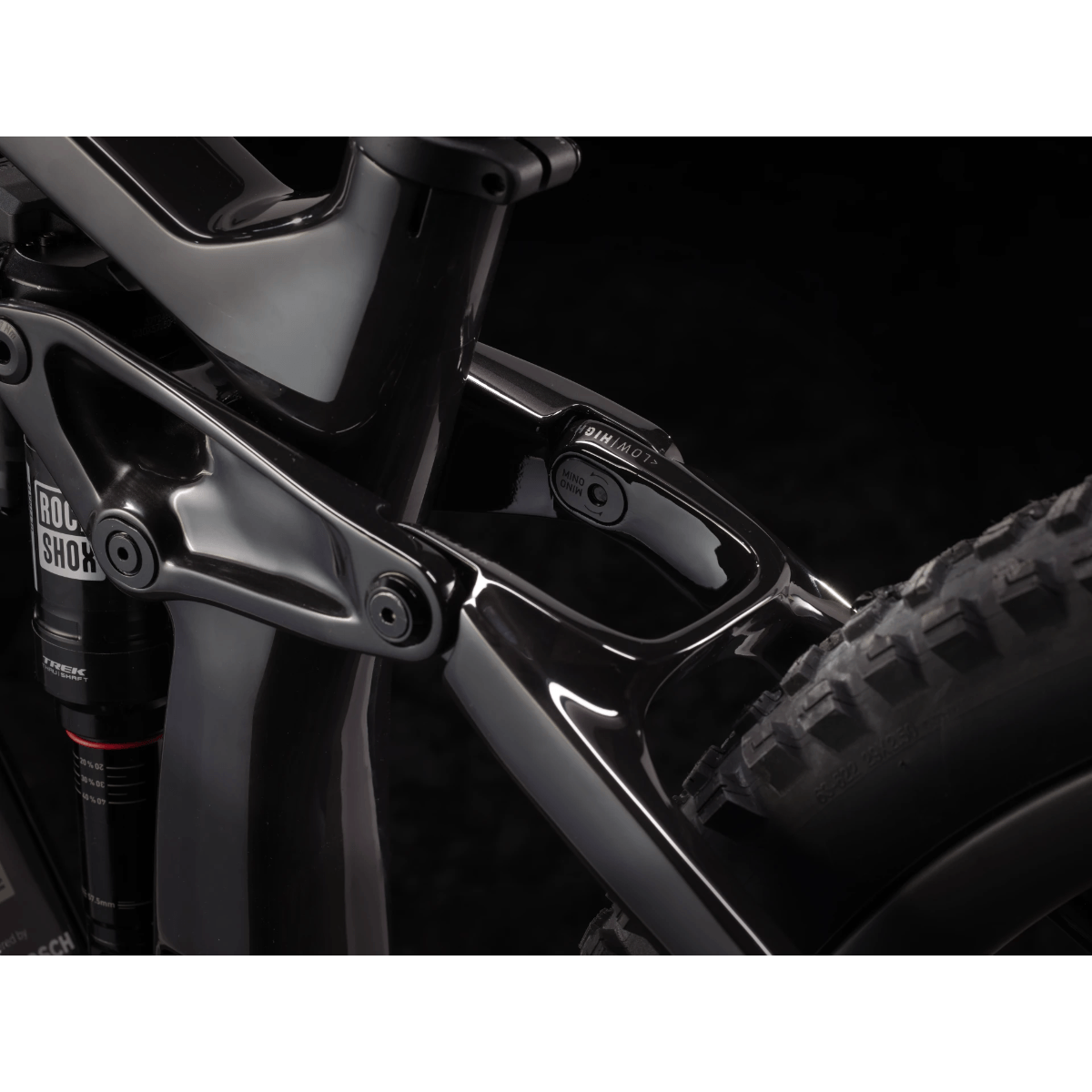

    OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Suspension
  • Fork
    RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8'' oversized tapered steerer, eMTB optimized crown, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
  • Shock
    RockShox Super Deluxe Thru Shaft, AirWiz, 230mm x 57.5mm
• Brakes
  • Brake Rotor
    SRAM HS2, 6-bolt, 200mm
  • Brake Rotor
    SRAM HS2, 6-bolt, 220mm
  • Brake
    SRAM Code Silver 4-piston hydraulic disc
• Drivetrain
  • Rear Derailleur
    SRAM X0 Eagle AXS, T-Type
  • Cassette
    SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
  • Chain
    SRAM X0 Eagle, T-Type, 12 speed
  • Pedal
    VP-536 nylon platform
  • Shifter

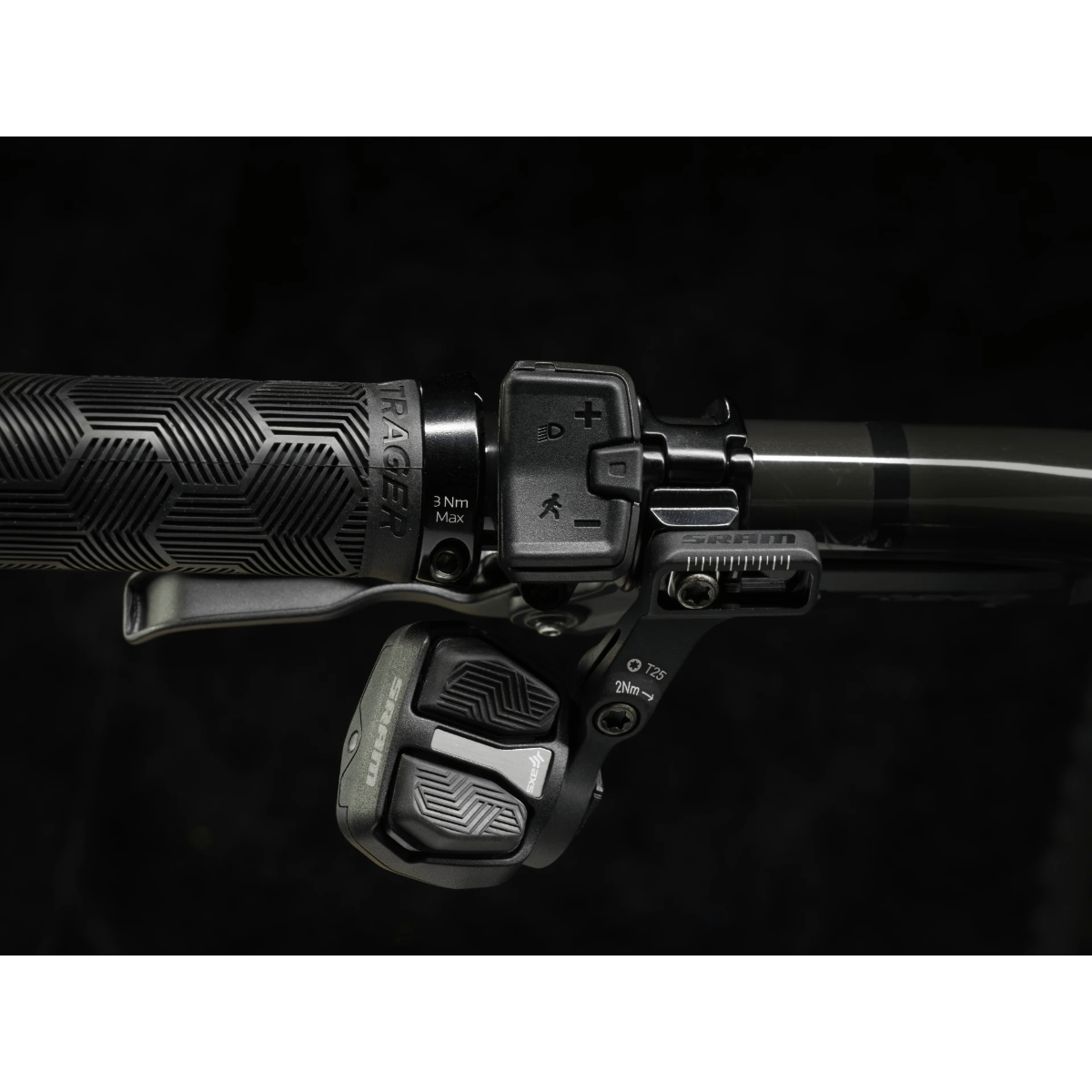

    SRAM AXS POD Ultimate, paired with dropper
  • Crank
    SRAM X0 Eagle, 160mm length
• Wheels & Tires
  • Skewer Rear
    Bontrager Switch thru axle, removable lever
  • Tires
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
• Cockpit
  • Handlebar
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Saddle
    Bontrager Arvada, austenite rails, 138mm width
  • Seatpost
    (Size S) RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length, (Size M) RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length, (Size L, XL) RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
• Weight
  • Weight
    52.76 lbs
• Other
  • Wheel Front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel Rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
  • Chainring
    SRAM XX T-Type, 34T, steel
