Top Fuel 5 Gen 3 Bike - 2023

0.0|reviews
ID:

898878

$2,699.99$1,799.9333% off
Color:Lithium Grey* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

Top Fuel 5 is a full suspension mountain bike that's equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full suspension trail bike.

  • 120mm RockShox Recon fork, and 120mm of rear travel with an X-Fusion Pro 2 shock
  • Wide-range 1x12 Shimano Deore drivetrain
  • A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  • New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
  • Weight (Size M) - 15.29 kg / 33.71 lbs

Tech Specs

  • Frameset
    • Frame
      Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
  • Suspension
    • Fork
      RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

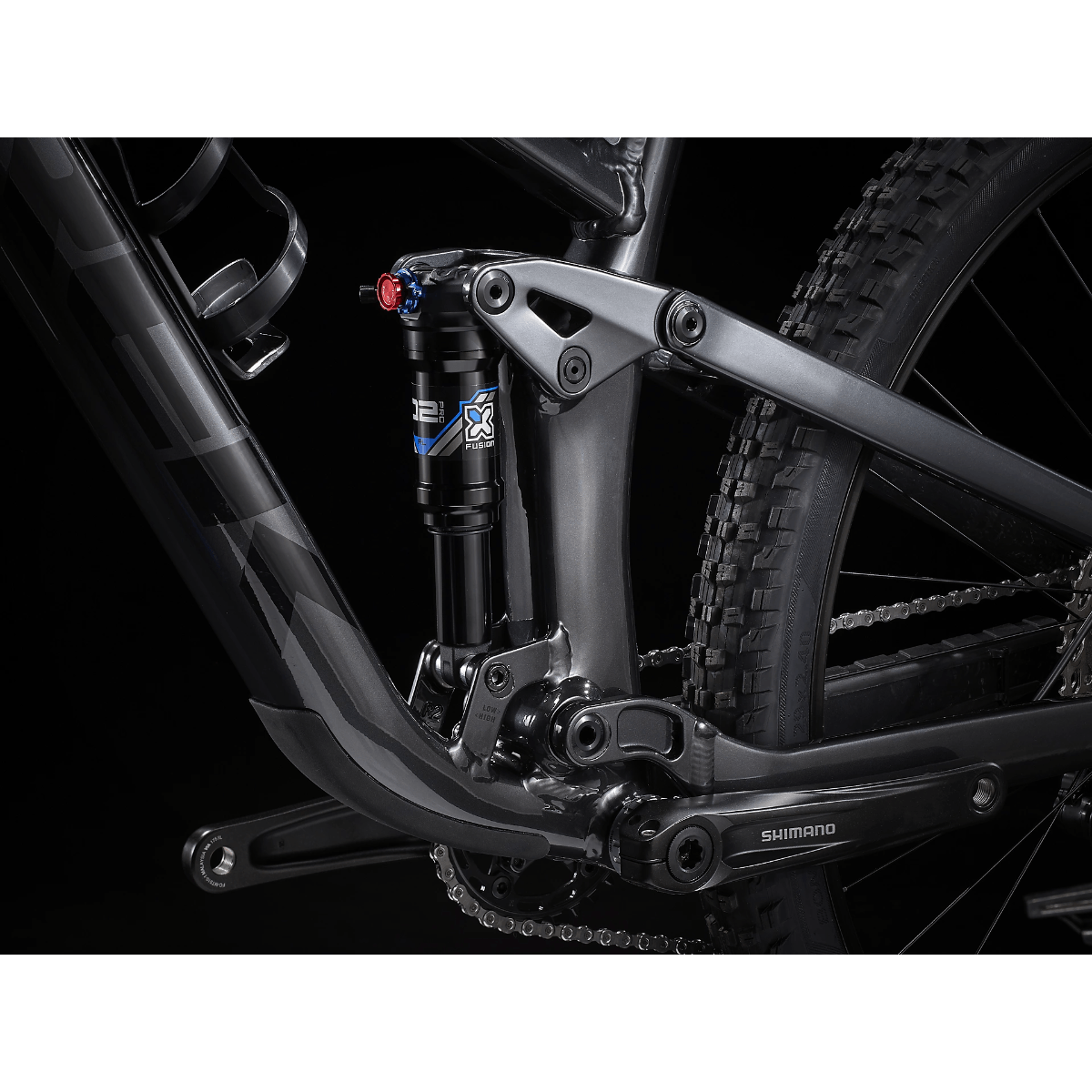

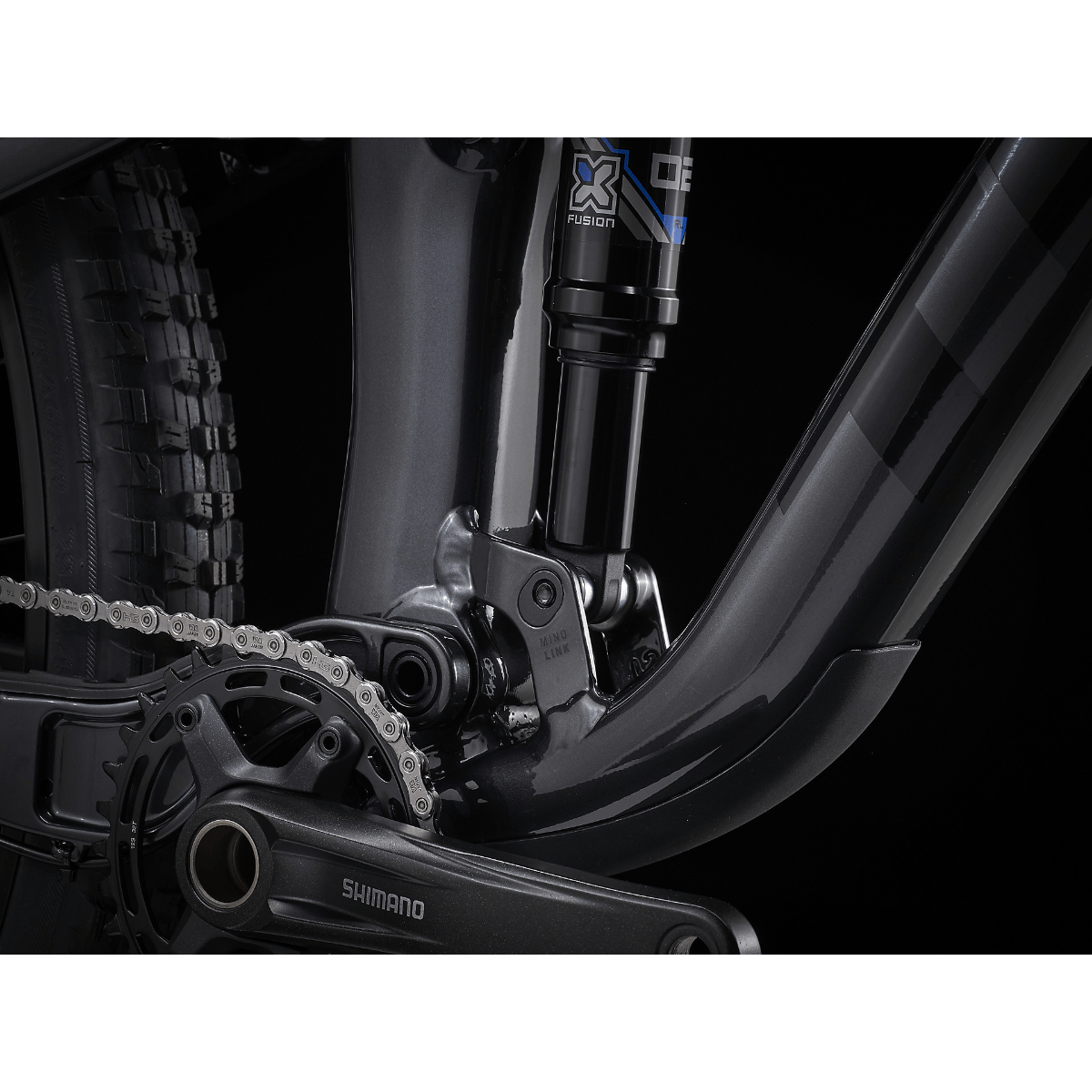

    • Shock
      X-Fusion Pro 2, 2-position damper, 185mm x 50mm

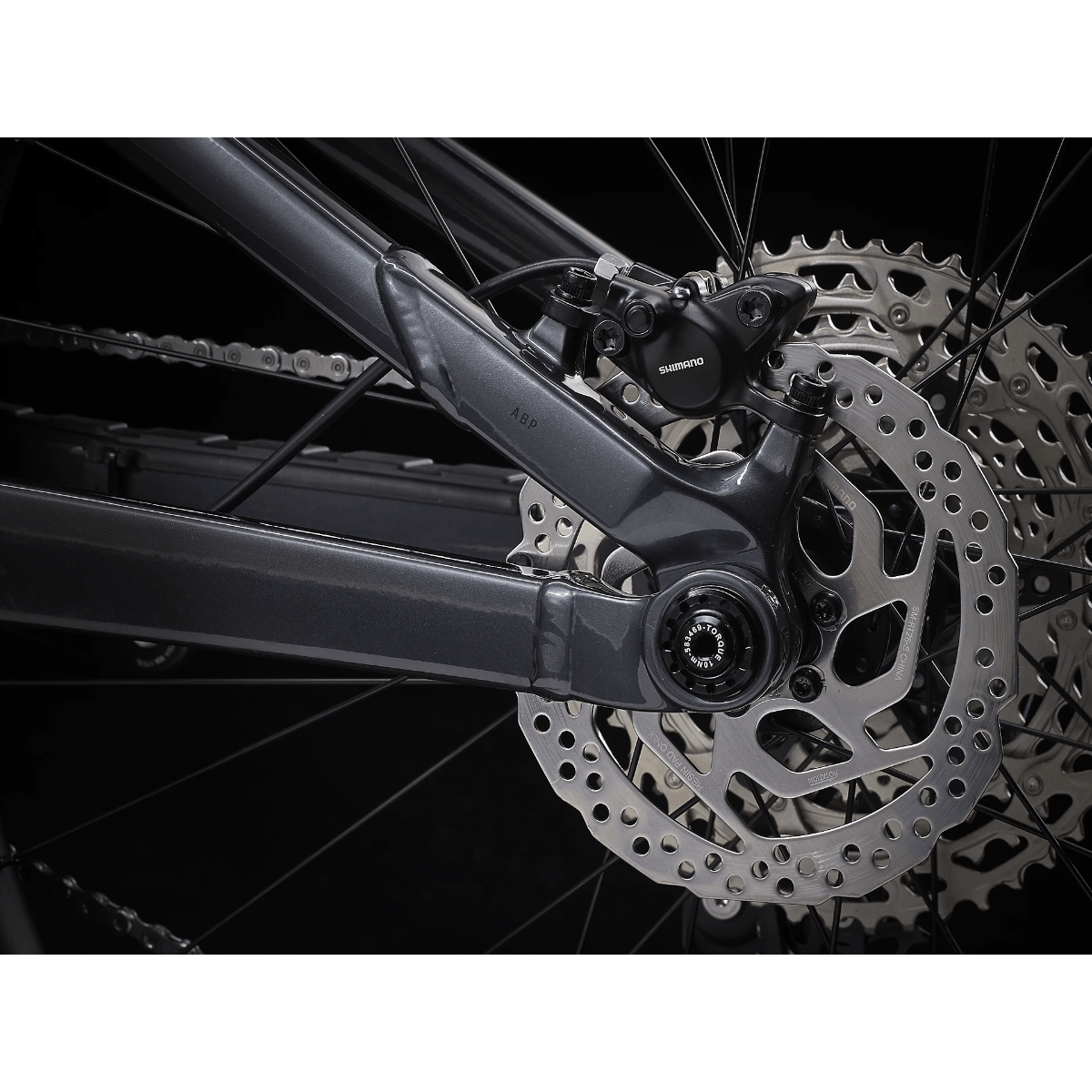

  • Brakes
    • Brake rotor
      Shimano RT26, 6-bolt,180mm
    • Brake rotor
      Shimano RT26, 6-bolt,160mm
    • Brake
      Shimano MT200 hydraulic disc
  • Drivetrain
    • Crank (S, M)
      Shimano MT512, 30T ring, 55mm chainline, 170mm length
    • Crank (XL, XXL)
      Shimano MT512, 30T ring, 55mm chainline, 175mm length
    • Rear derailleur
      Shimano Deore M6100, long cage
    • Cassette
      Shimano Deore M6100, 10-51, 12 speed
    • Chain
      Shimano Deore M6100, 12 speed
    • Shifter
      Shimano Deore M6100, 12 speed
    • Bottom bracket
      Shimano BB-MT501 BSA
  • Wheels & Tires
    • Hub front
      Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
    • Hub rear
      Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
    • Skewer rear
      Bontrager Switch thru axle, removable lever
    • Tire
      Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40"
    • Rim
      Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
    • Spokes
      14g stainless steel, black
  • Cockpit
    • Seatpost (S)
      TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
    • Seatpost (M)
      TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
    • Seatpost (XL, XXL)
      TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
    • Stem
      Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
    • Handlebar
      Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
    • Grips
      Bontrager XR Trail Comp, nylon lock-on
    • Saddle
      Bontrager Arvada, steel rails, 138mm width
    • Headset
      Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
