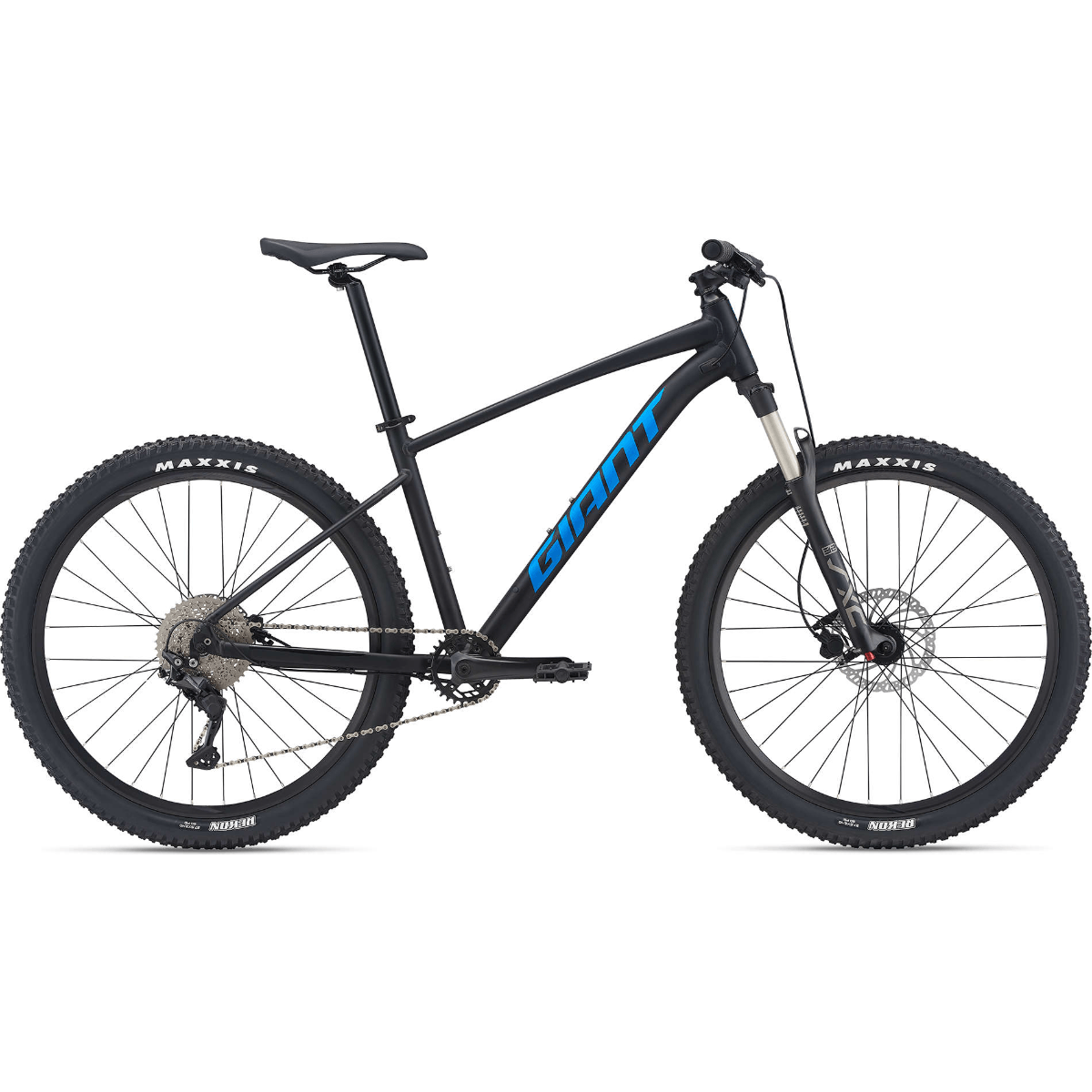

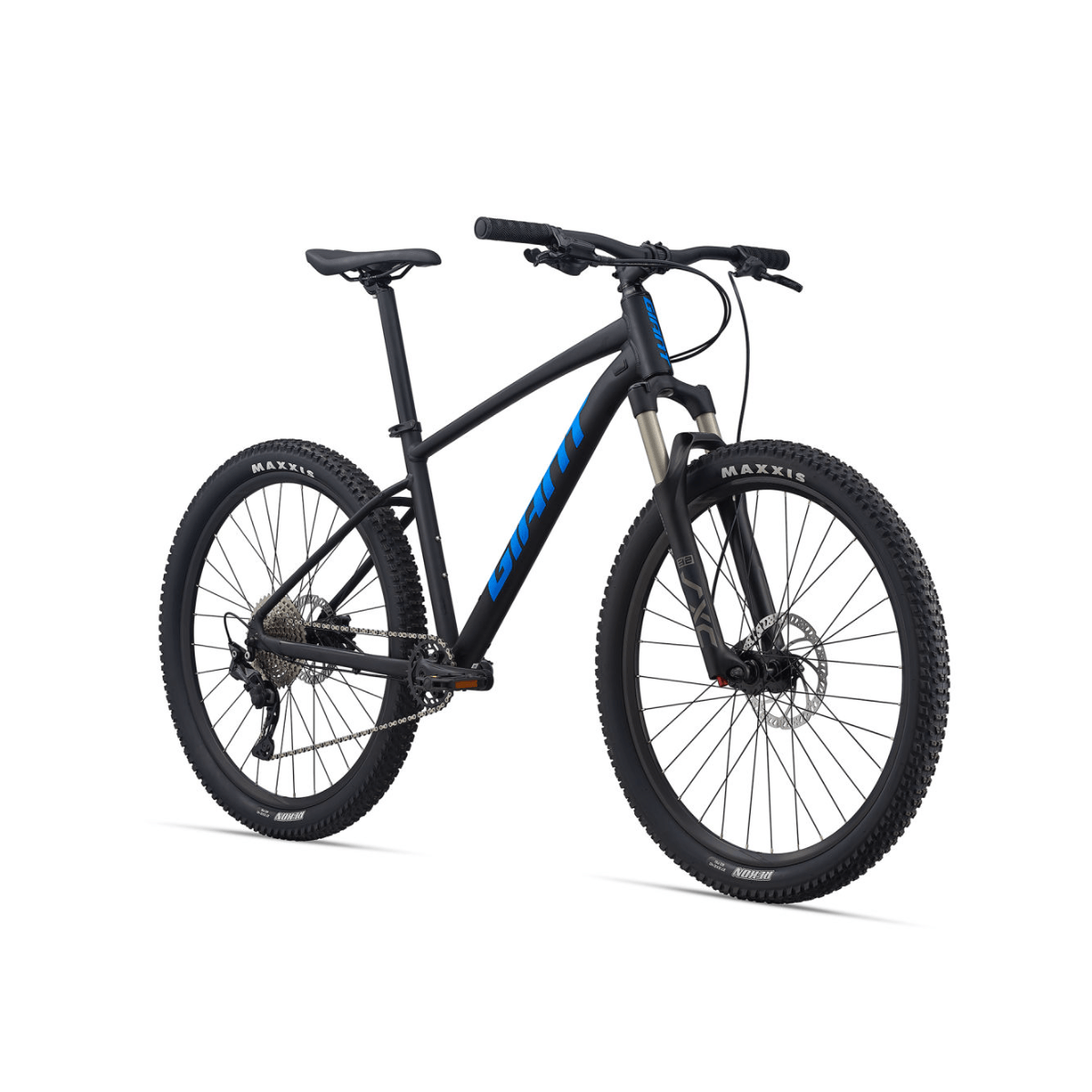

Giant Talon 1 Bike - 2025

Weight (Size XL) - 29" - 13.82 kg (30 lb 7oz)
Weight (Size M) - 27.5" - 13.86 kg (30 lb 9oz)
Suspension fork offers either 80mm or 100mm of smooth travel for added XC control
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size)
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering

Frameset
- Frame
  ALUXX-Grade Aluminum, disc
Suspension

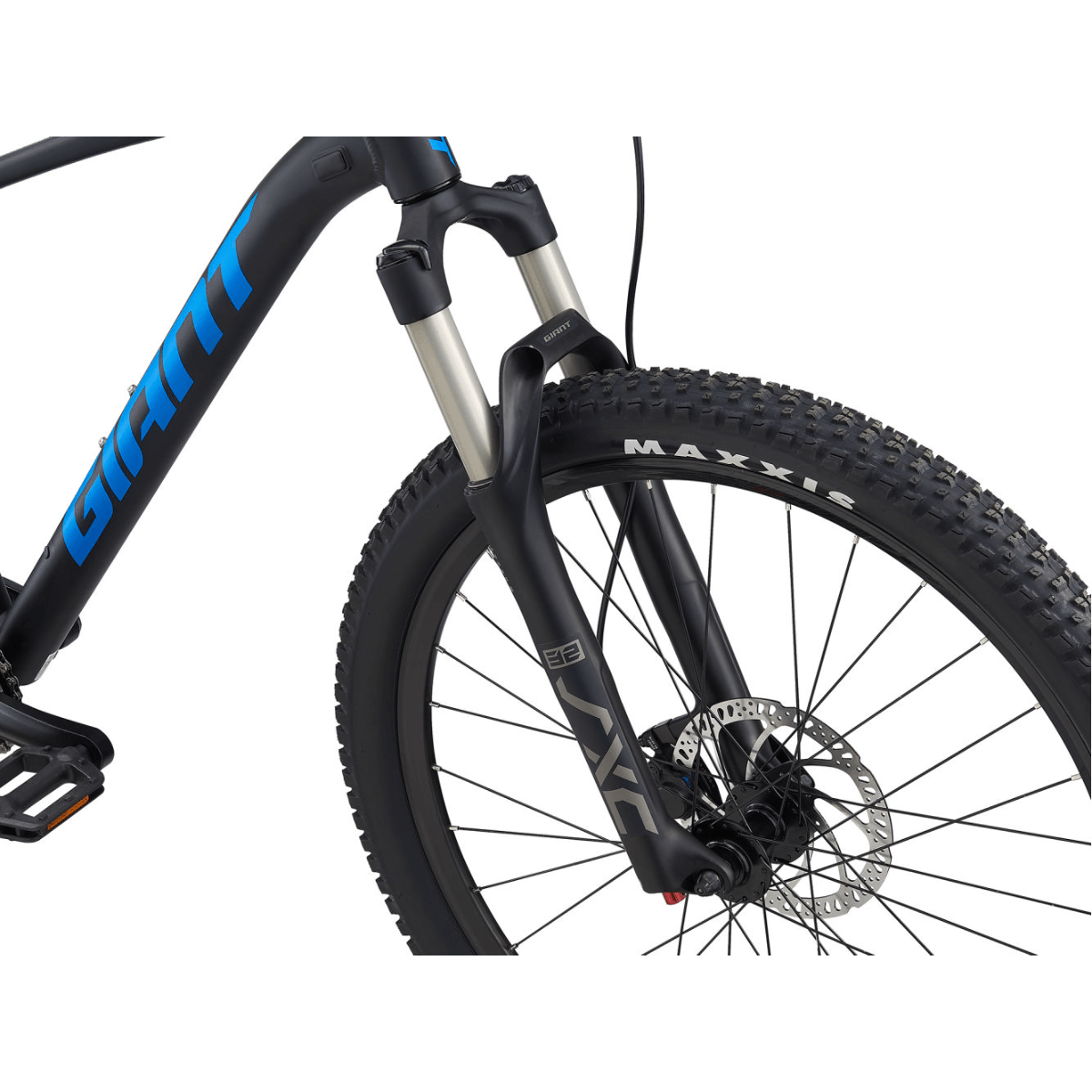

- Fork
  SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (27.5) / 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Brakes
- Brakes
  Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
- Brake Levers
  Tektro HDC M275

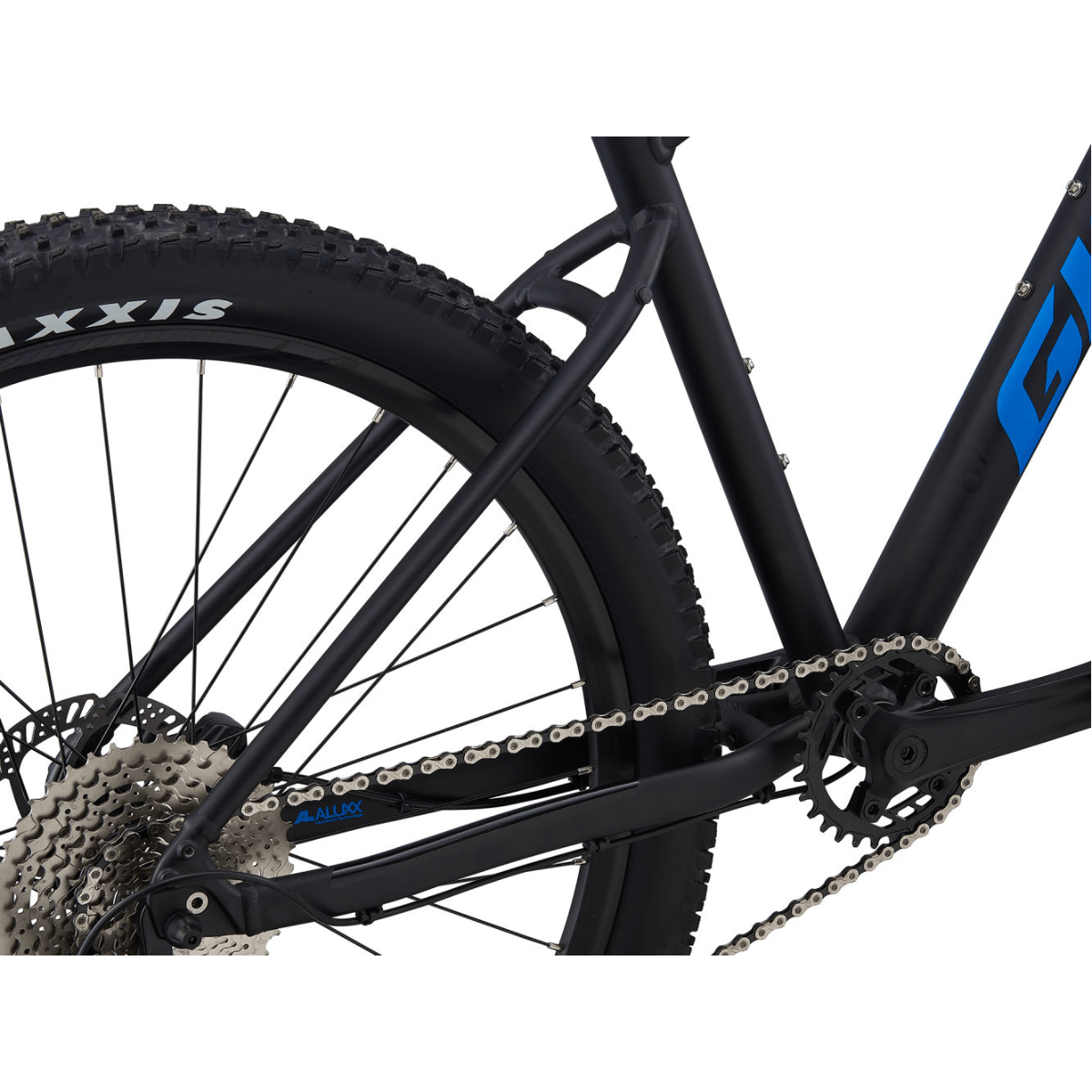

Drivetrain
- Shifters
  Shimano Deore M4100, 1x10
- Rear Derailleur
  Shimano Deore M5120
- Cassette
  Shimano Deore M4100, 11x42
- Chain
  KMC X10
- Crankset
  ProWheel Charm, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29)
- Bottom Bracket
  cartridge
Wheels & Tires
- Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
- Hubs
  alloy, ball bearing
- Tires
  Kenda Booster 27.5 or 29x2.4", wire bead
- Spokes
  stainless, 14g
Cockpit
- Stem
  Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29)
- Handlebar
  Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29)
- Grips
  Giant Sole-O
- Saddle
  Giant custom
- Seatpost
  Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29)
