Als
Trek

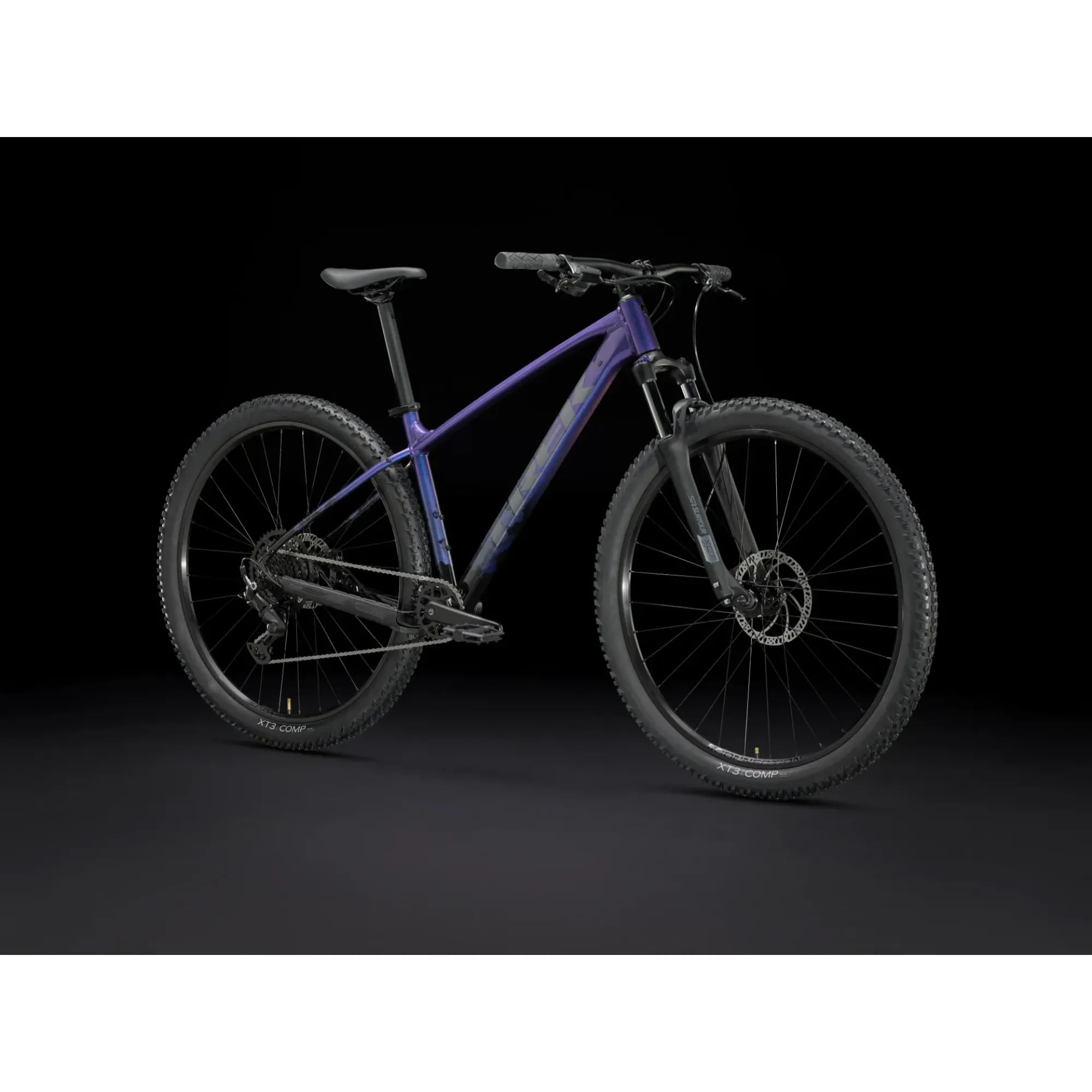

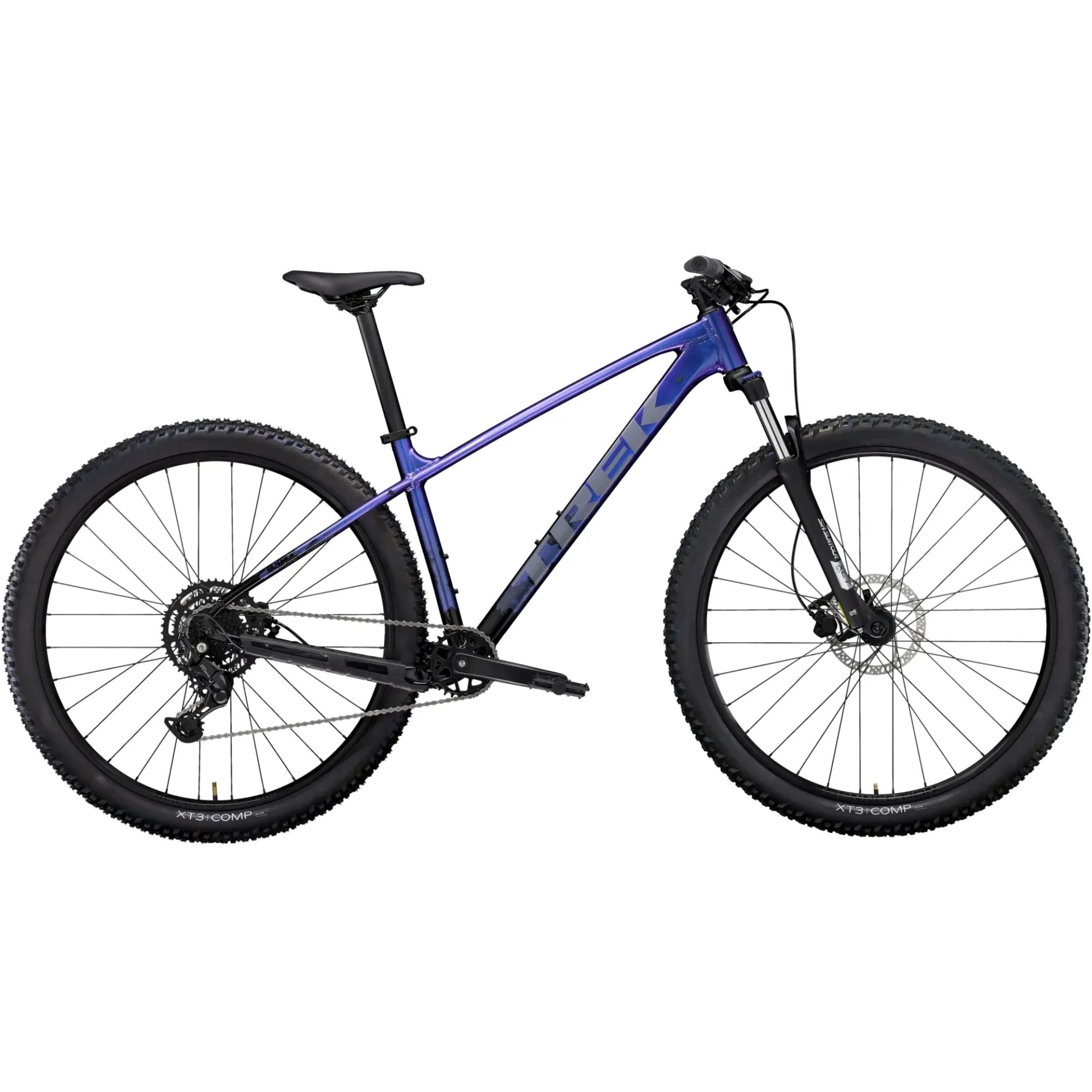

Marlin 5 Gen 3 Bike - 2025

0.0|reviews
ID:

1784020

$799.99$799.990% off
Color:Purple Flip To Trek Black Fade* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Al's return policy

Description

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

  • Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city

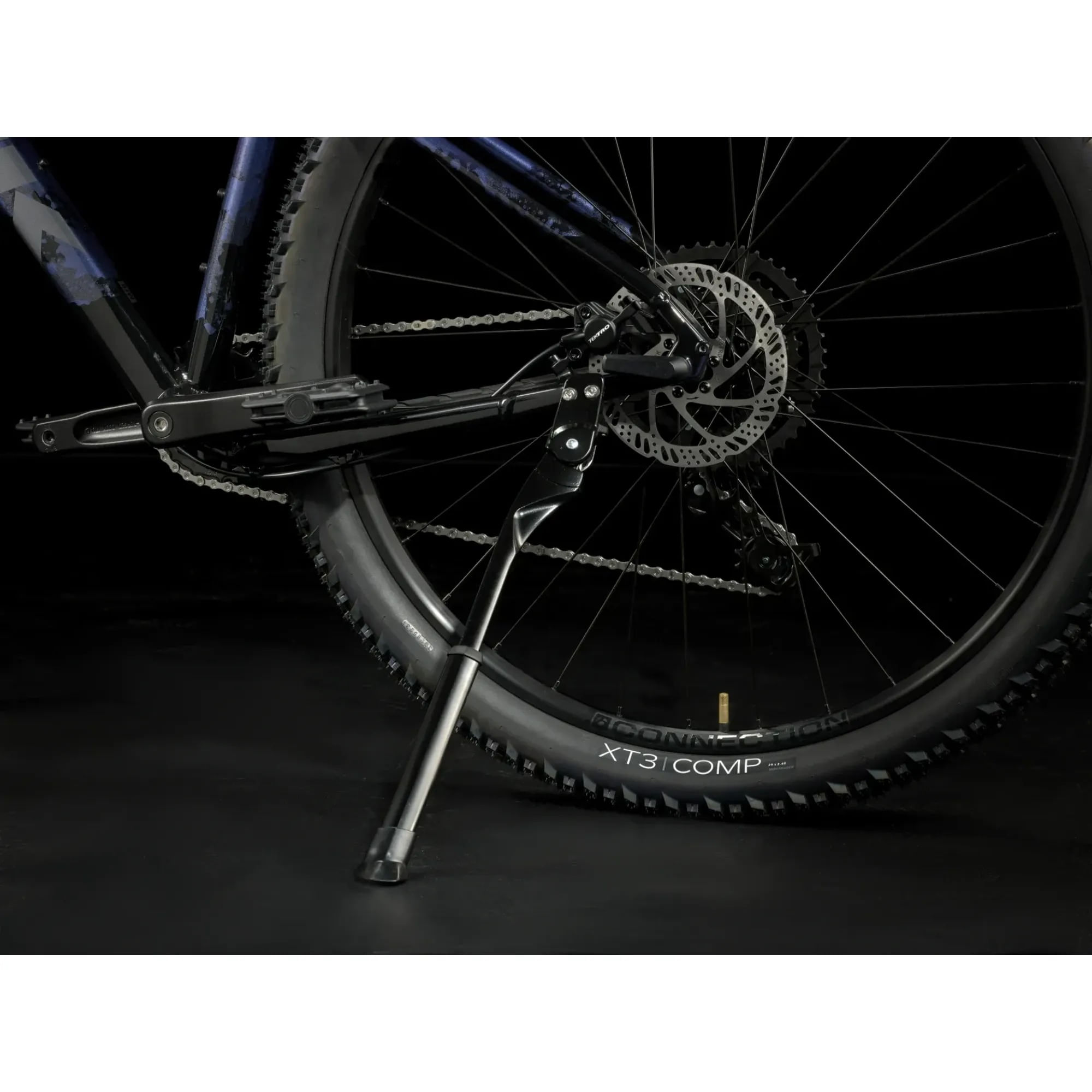

  • Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
  • Its ThruSkew system is safer, simpler, and stronger, plus it makes removing the rear wheel easy for flat fixes in a pinch
  • Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
  • Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount
  • 9-speed Shimano CUES drivetrain
  • 100mm front fork with lockout feature for better efficiency on flat surfaces
  • Weight (Size M) - 15.10 kg / 33.29 lbs (with tubes)

Tech Specs

  • Frameset
    • Frame (XS)

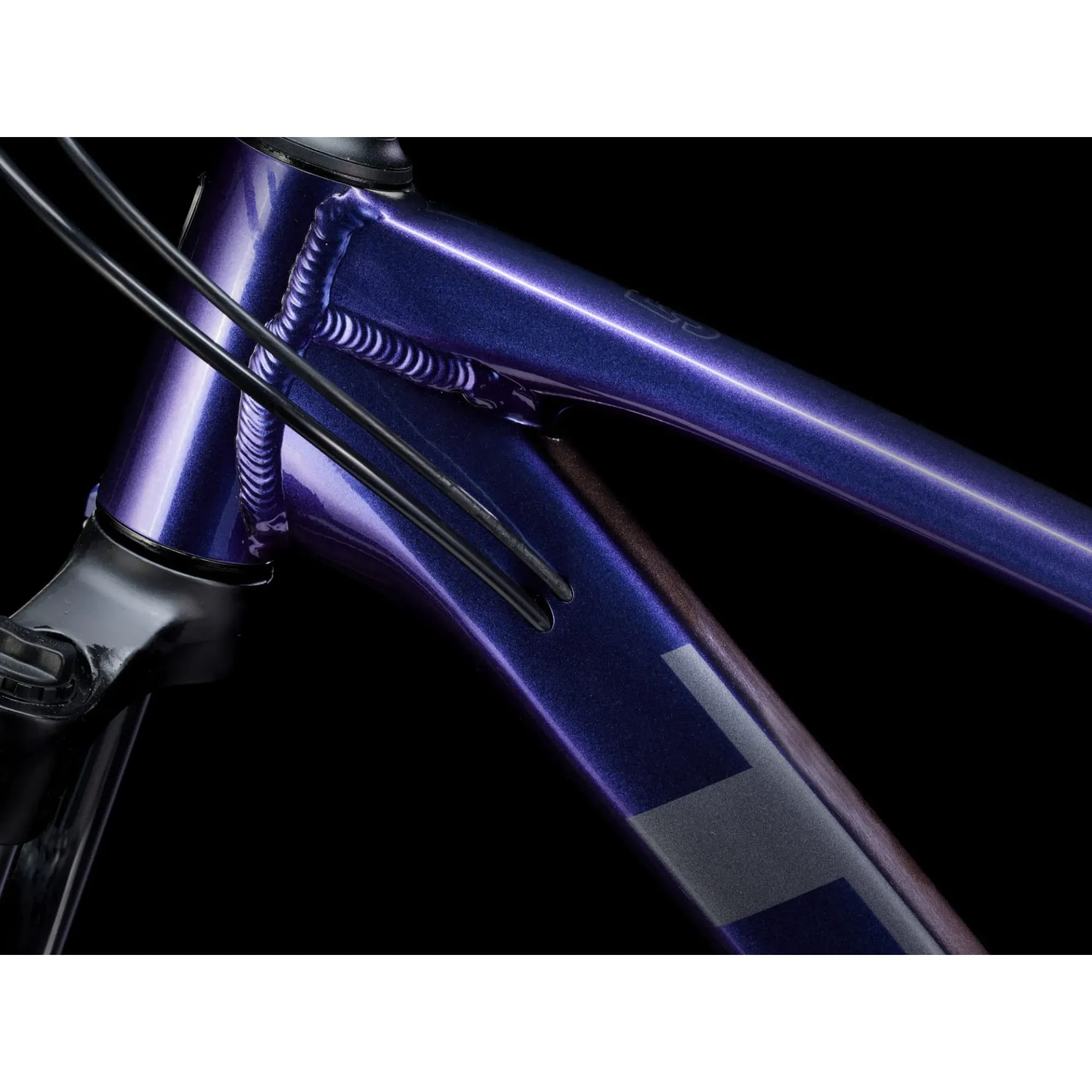

      Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
    • Frame (S, M, ML, L, XL)
      Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Suspension
    • Fork (XS)

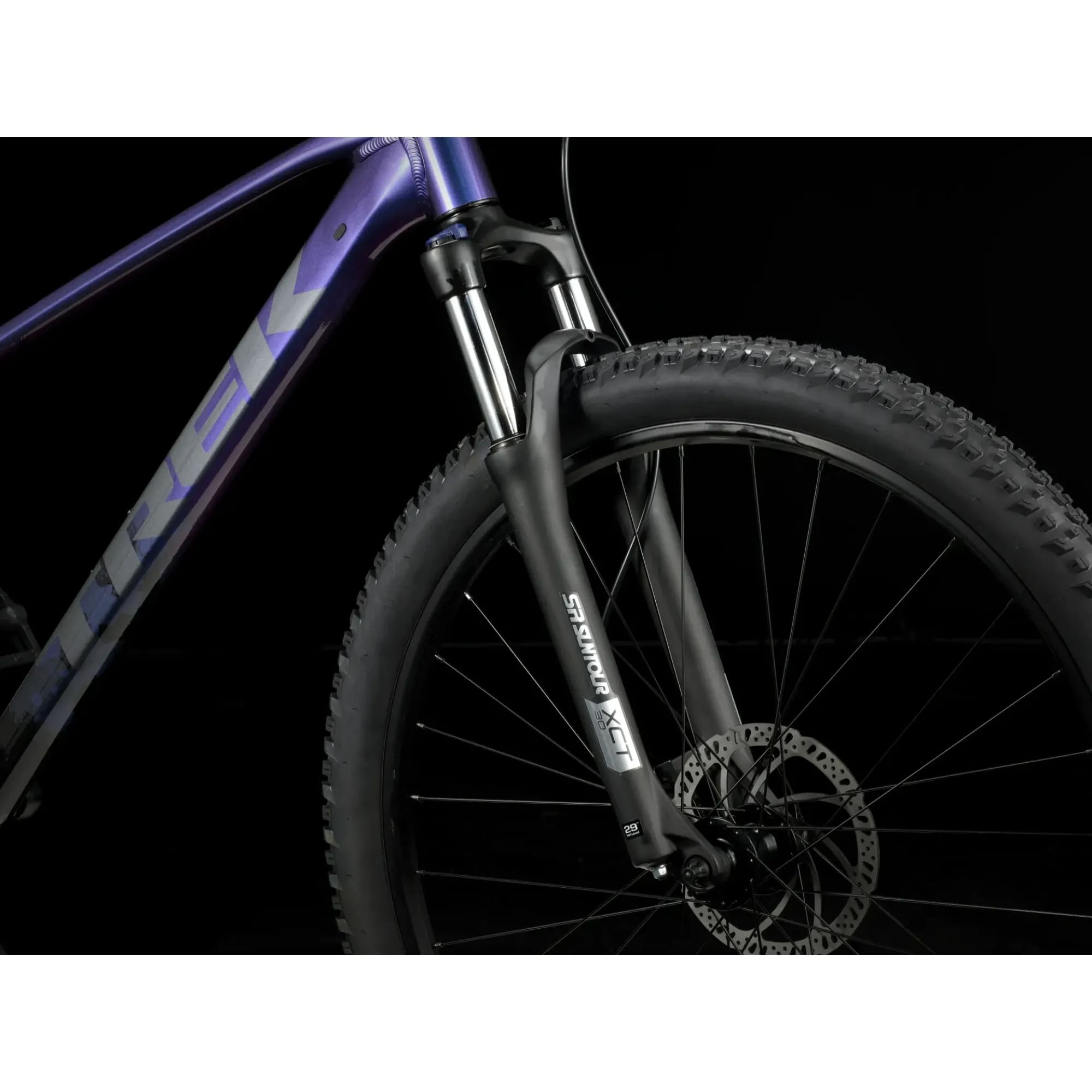

      SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
    • Fork (S)
      SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
    • Fork (M, ML, L, XL)
      SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
  • Brakes
    • Brake set (XS, S)
      Tektro HD-M276 hydraulic disc, short reach
    • Brake set (M, ML, L, XL)

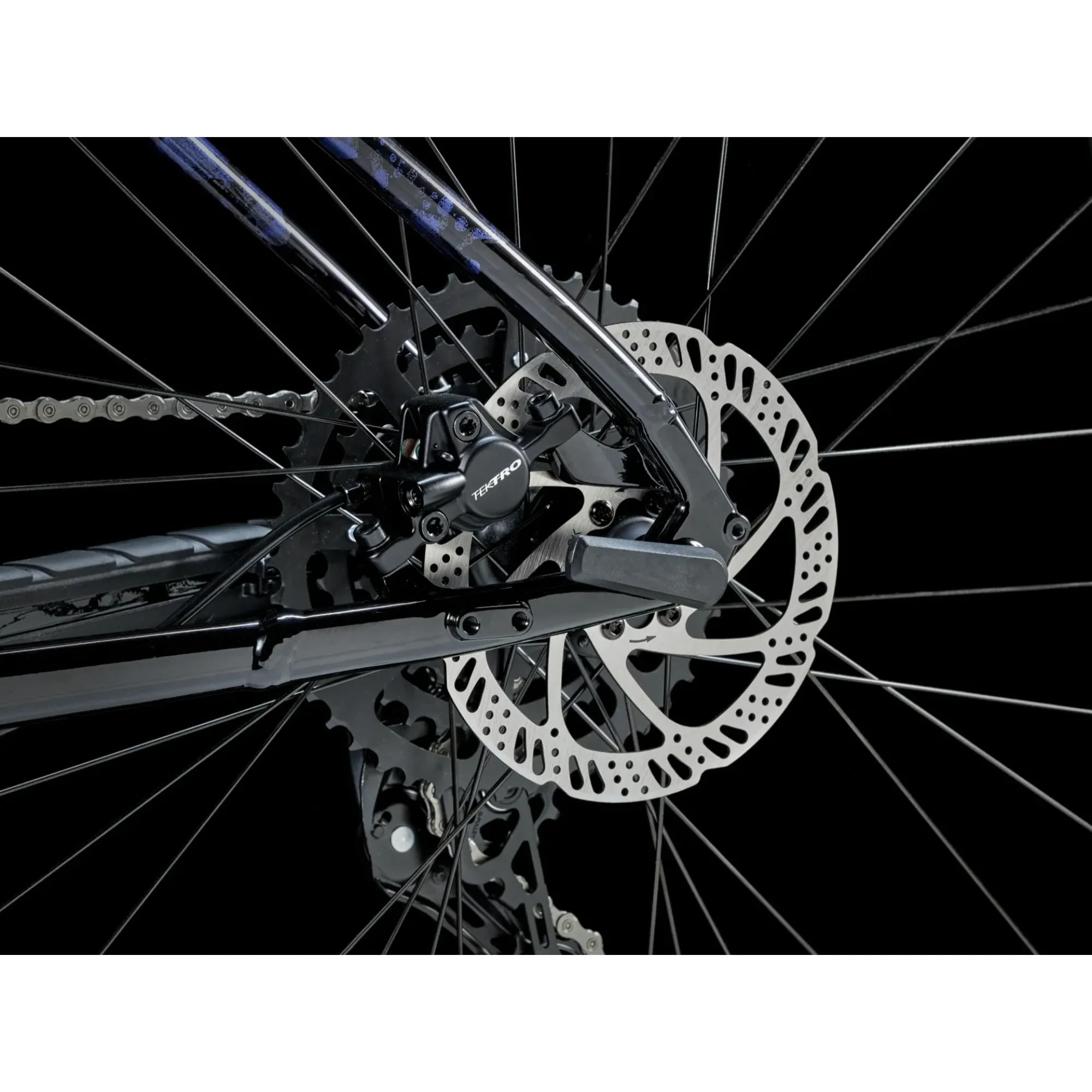

      Tektro HD-M275 hydraulic disc
    • Brake rotor
      Tektro, 6-bolt, 160mm
  • Drivetrain
    • Crank (XS)
      Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
    • Crank (S, M, ML)
      Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
    • Crank (L, XL)
      Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length

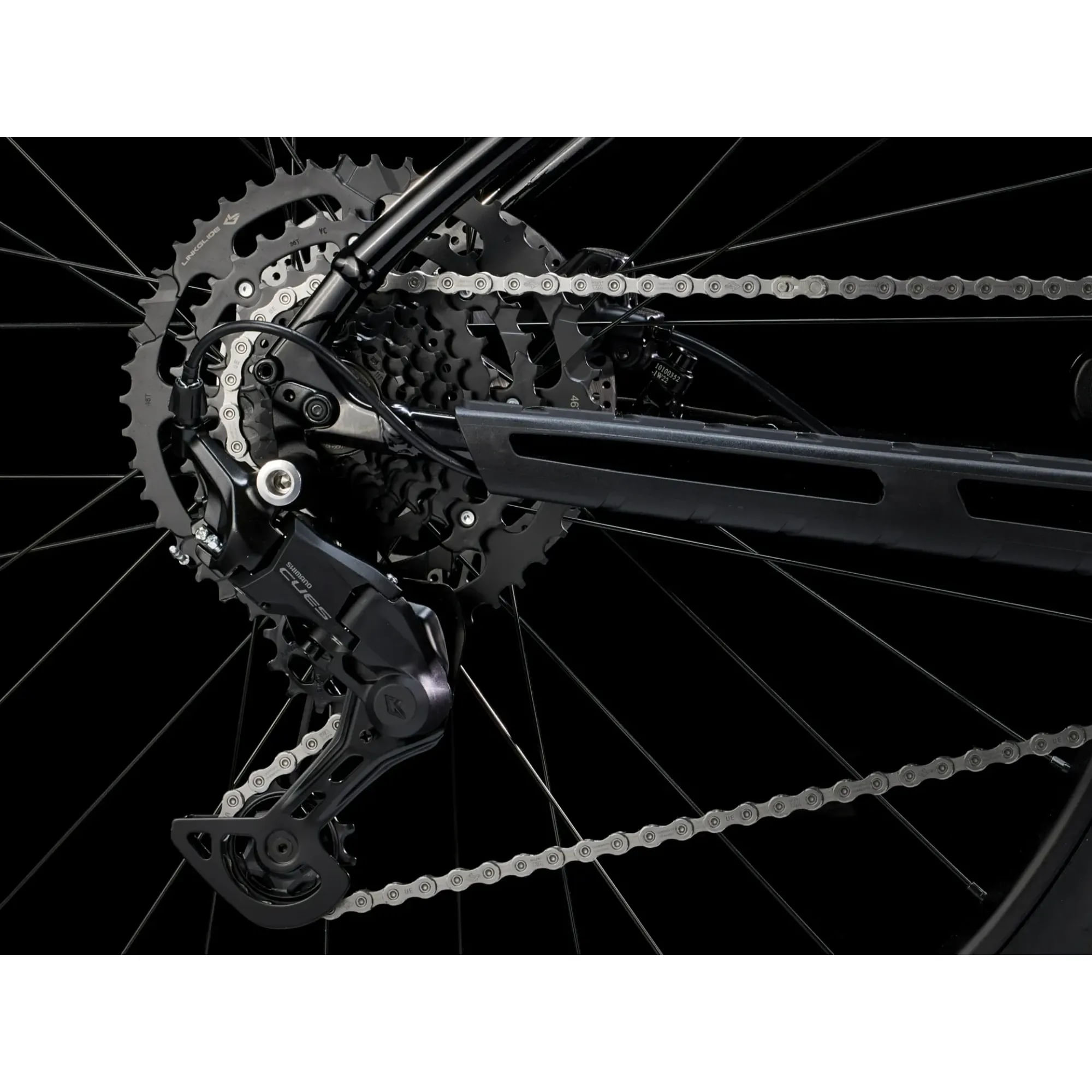

    • Rear derailleur
      Shimano CUES U4000
    • Cassette
      Shimano LINKGLIDE LG300, 11-46, 9 speed
    • Chain
      Shimano LG500, 9/10/11 speed
    • Shifter
      Shimano U4000, 9 speed
  • Wheels & Tires
    • Hub front
      Formula DC-20, alloy, 6-bolt, 5x100mm QR
    • Hub rear
      Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
    • Tire (XS, S)

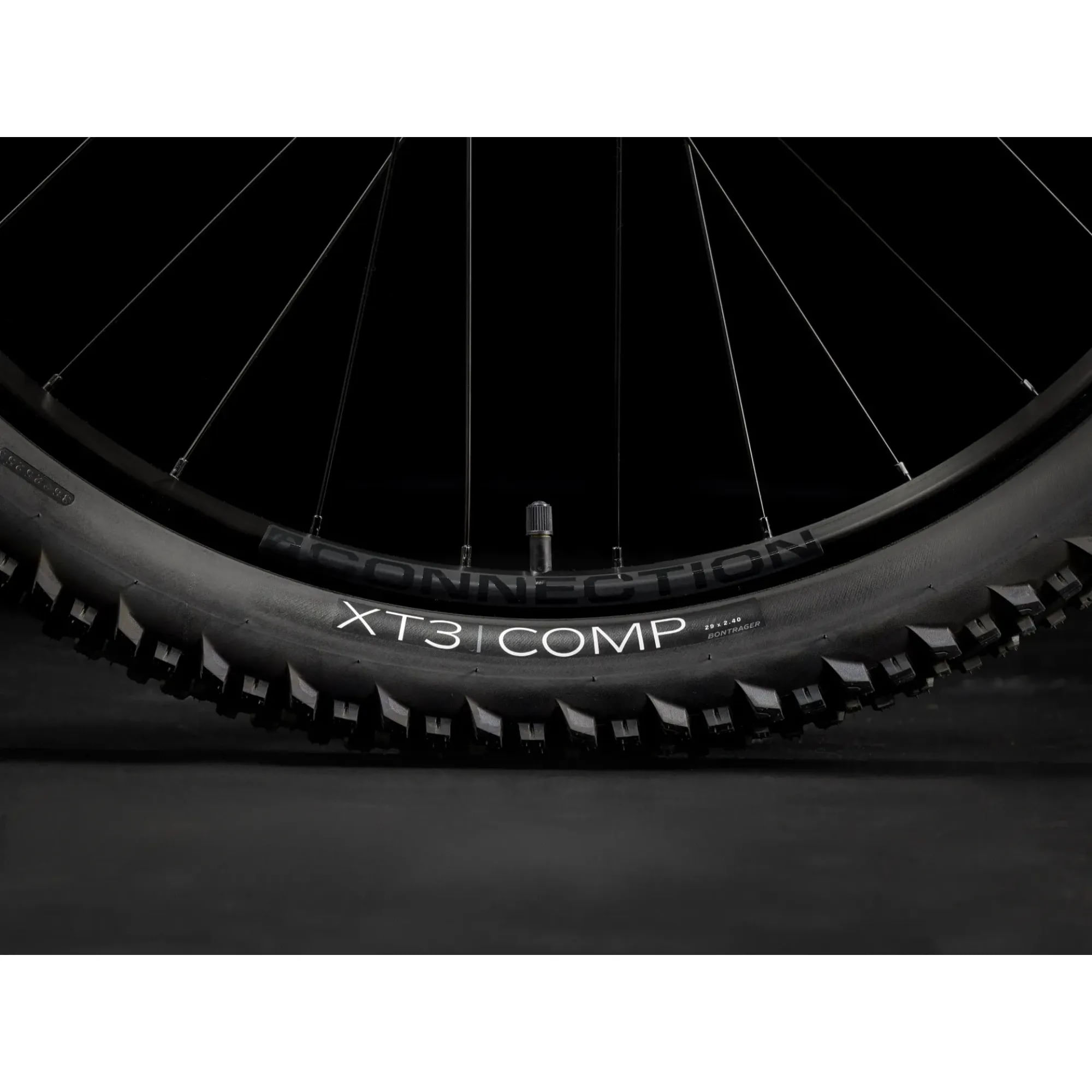

      Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
    • Tire (M, ML, L, XL)
      Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
    • Rim
      Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
    • Spokes
      14g stainless steel, black
  • Cockpit
    • Seatpost (XS, S, M)
      Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    • Seatpost (ML, L, XL)
      Bontrager alloy, 31.6mm, 12mm offset, 400mm length
    • Handlebar (XS)
      Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    • Handlebar (S)
      Bontrager alloy, 31.8mm, 15mm rise, 720mm width
    • Handlebar (M, ML, L, XL)
      Bontrager alloy, 31.8mm, 15mm rise, 750mm width
    • Stem (XS, S)
      Bontrager Comp, 31.8mm, 7 degree, 35mm length
    • Stem (M, ML, L)
      Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
    • Stem (XL)
      Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
    • Grips
      Bontrager XR Trail Comp, nylon lock-on
    • Headset
      Semi-integrated, 1-1/8"
