Als
Trek

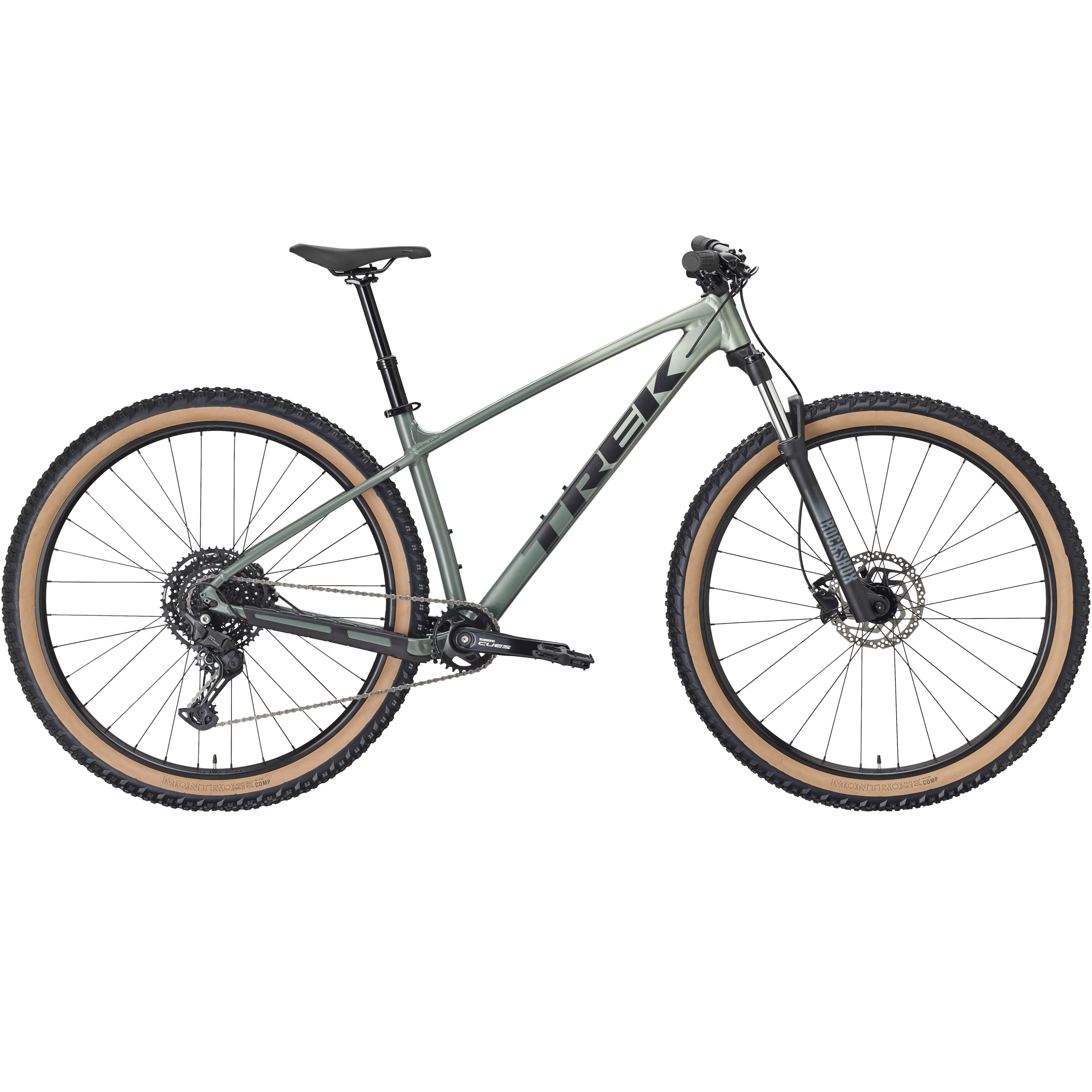

Marlin 6 Gen 3 Bike - 2026

0.0|reviews
ID:

3131862

$999.99$999.990% off
Color:Select Color* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Warehouse Liquidation UATC

Description

Conquer the most rugged terrains with ease on the Trek Marlin 6 Gen 3 Bike. This hardtail mountain bike is designed to provide superior control and comfort, no matter your size, thanks to its seven frame sizes and Smart Wheel Size technology. The stylish frame features internal shift cable and brake hose routing for durability, shielding your cables from the elements. What sets it apart is the Shimano CUES drivetrain, equipped with LINKGLIDE technology, ensuring smooth shifting and extended longevity.

  • Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control

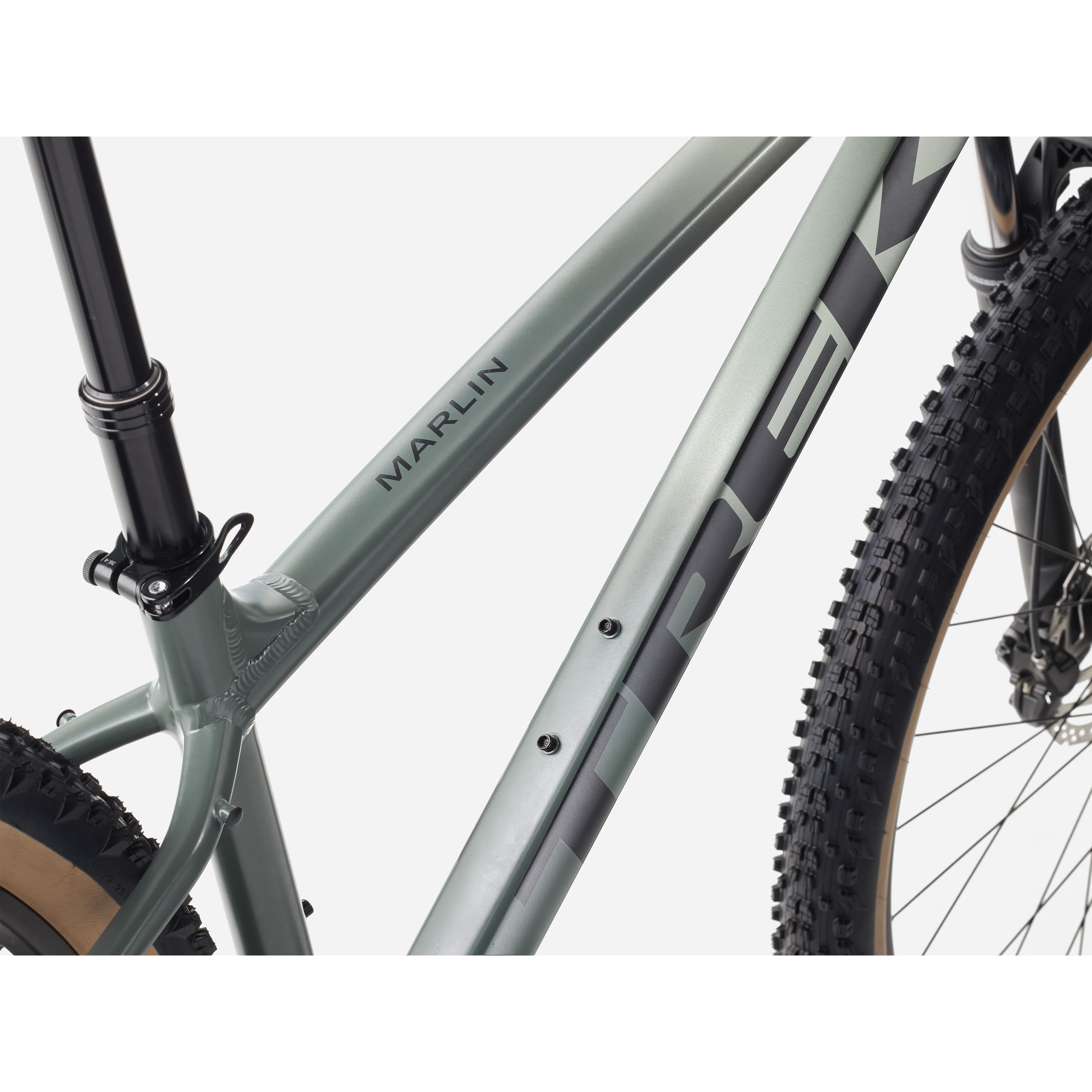

  • Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements

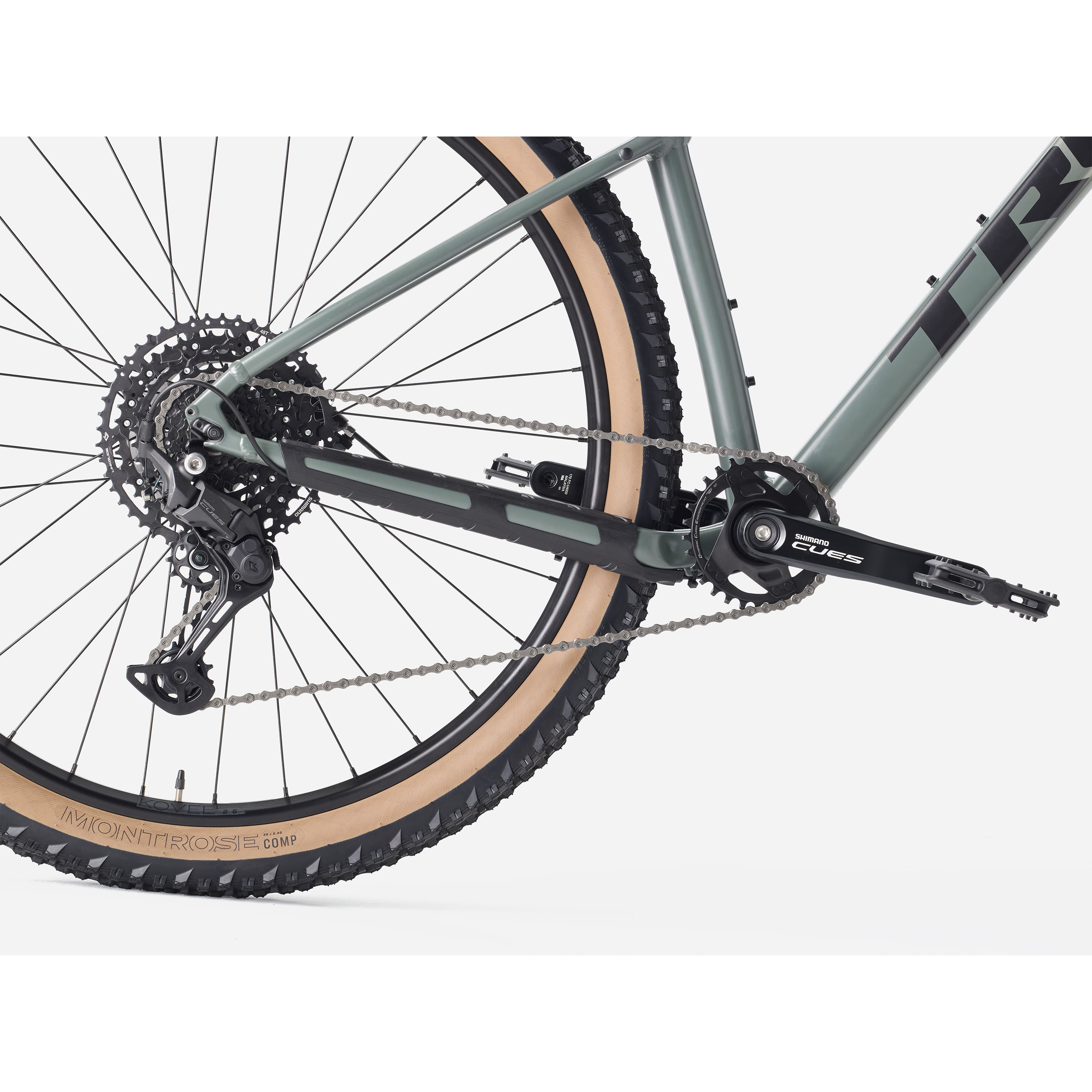

  • Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings
  • LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains

Tech Specs

  • Frameset
    • Frame
      (Size XS) Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
    • Frame
      (Size S, M, ML, L, XL) Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Suspension
    • Fork
      (Size XS, S) RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    • Fork
      (Size M , ML , L , XL) RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
  • Brakes
    • Brake Set
      Shimano MT200 hydraulic disc
    • Brake Rotor
      (Size XS , S , M , ML , L , XL) Shimano RT26, 6-bolt, 160mm
    • Brake Rotor
      (Size M , ML , L , XL) Shimano RT26, 6-bolt, 180mm
    • Brake
      Shimano MT200 hydraulic disc
  • Drivetrain
    • Rear Derailleur
      Shimano CUES U6000 GS
    • Cassette
      Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
    • Chain
      Shimano LG500, 9/10/11 speed
    • Pedal
      VP-536 nylon platform
    • Shifter
      Shimano U6000, 10 speed
    • Crank
      (Size XS , S , M , ML) Shimano U4000, 30T chainring, 170mm length
    • Crank
      (Size L , XL) Shimano U4000, 30T chainring, 175mm length
    • Bottom Bracket
      Shimano, 73mm, threaded cartridge, 122.5mm spindle
  • Wheels & Tires
    • Hub Front
      Formula DC-20, alloy, 6-bolt, 100mm
    • Hub Rear
      Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
    • Skewer Rear
      173x5mm QR
    • Rim Strip
      Bontrager TLR
    • Tire
      (Size XS, S) Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35''
    • Tire
      (Size M , ML , L , XL) Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35''
    • Rim
      (Size XS , S , M , ML , L , XL) Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
    • Rim
      (Size M , ML , L , XL) Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
  • Cockpit
    • Stem
      (Size XS, S) Bontrager Comp, 31.8mm, 7 degree, 35mm length
    • Stem
      (Size M , ML , L) Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
    • Stem
      (Size XL) Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
    • Handlebar
      (Size XS) Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    • Handlebar
      (Size S) Bontrager alloy, 31.8mm, 15mm rise, 720mm width
    • Handlebar
      (Size M , ML , L , XL) Bontrager alloy, 31.8mm, 15mm rise, 750mm width
    • Grips
      Trek Line Comp, nylon lock-on
    • Saddle
      Bontrager Verse Short, stainless steel rails
    • Seatpost
      (Size XS , S) TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
    • Seatpost
      (Size M) TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
    • Seatpost
      (Size ML , L , XL) TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
    • Headset
      Semi-integrated, 1-1/8"
  • Weight
    • Weight
      33.07 lbs
