Vortex Optics

Diamondback 2-7x35mm Rimfire Riflescope

0.0|reviews
ID:

16617

$239.99$239.990% off
Color:Black* Requires selection
  • Size* Requires selection

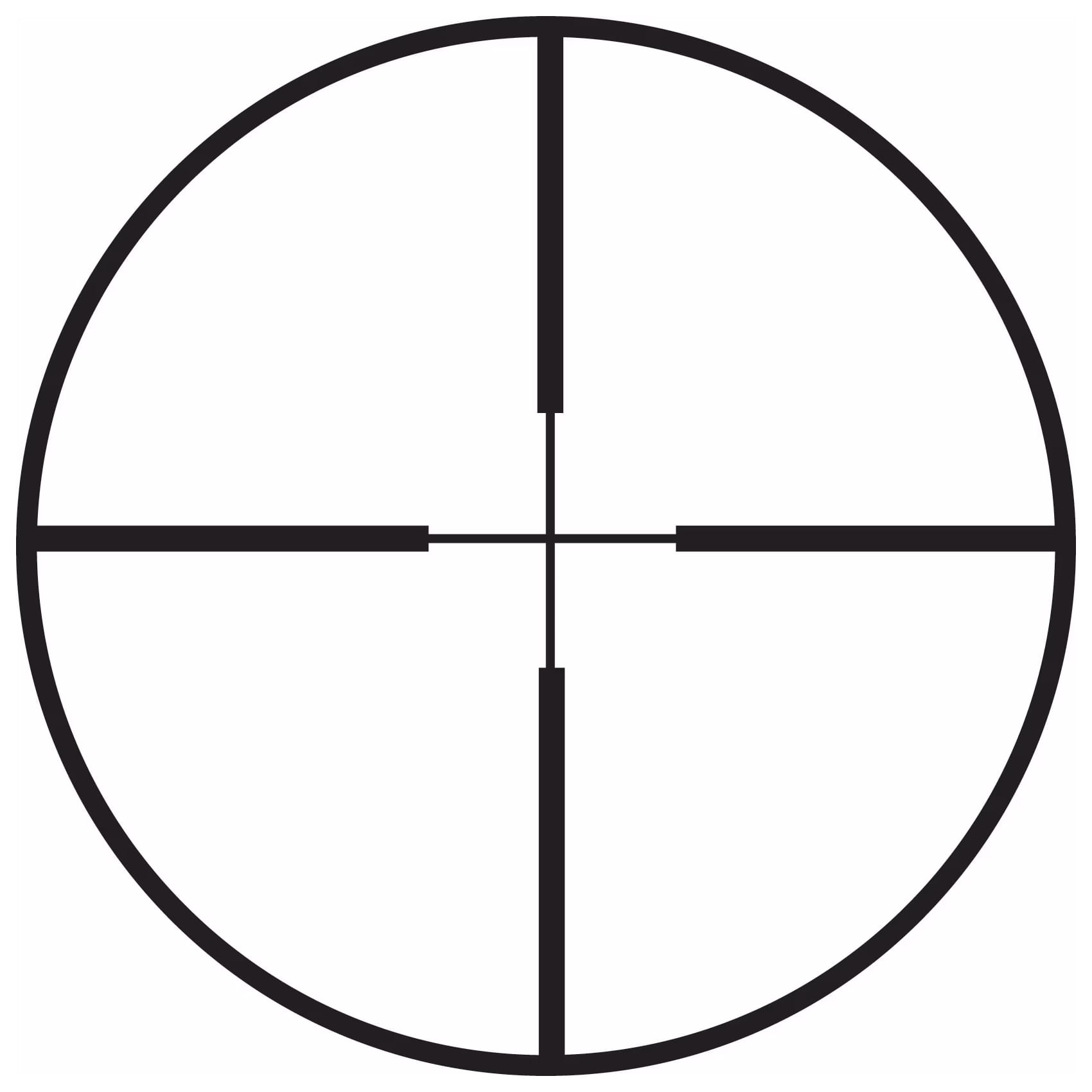

  • Reticle* Requires selection
Al's return policy

Description

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs.

Weight

Weight

13.7oz

Focal Plane

Focal Plane

Determines how the reticle behaves as you zoom.


  • First Focal Plane (FFP): Reticle grows/shrinks with zoom; holdovers stay accurate at all magnifications.

  • Second Focal Plane (SFP): Reticle size never changes; holdovers only accurate at one magnification.


First (FFP)
Second (SFP)
Max Windage Adjustment

Max Windage Adjustment

Maximum horizontal adjustment range for the reticle (left/right)

100 MOA

Max Elevation Adjustment

Max Elevation Adjustment

Maximum vertical adjustment range for the reticle (up/down).

100 MOA

Features

Features

Waterproof

Fogproof

Shockproof

  • Included in the Box: Removable lens covers, Lens cloth
  • Multi-Coated: Fully Multi-Coated
  • Aluminum Grade: Aircraft
  • Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
  • Capped Reset Turrets: Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
  • Fast Focus Eyepiece: Allows quick and easy reticle focusing.
  • Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
  • Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
  • Hard Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
  • Precision-Glide Erector System: This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
  • Second Focal Plane Reticle: Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
  • Shockproof: Rugged construction withstands recoil and impact.
  • Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
  • Tube Size: 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
  • Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Tech Specs

  • Weight
    13.7 oz
  • Length
    11.6"
  • Magnification
    2-7x
  • Eye Relief
    3.1"
  • Focal Plane
    Second
  • Adjustment Graduation
    0.25 MOA
  • Travel Per Rotation
    15 MOA
  • Max Elevation Adjustment
    100 MOA
  • Max Windage Adjustment
    100 MOA
  • Parallax Setting
    Fixed at 50yds
  • Objective Lens Diameter
    35mm
  • Features
    Waterproof, Fogproof, Shockproof
