Vortex Optics

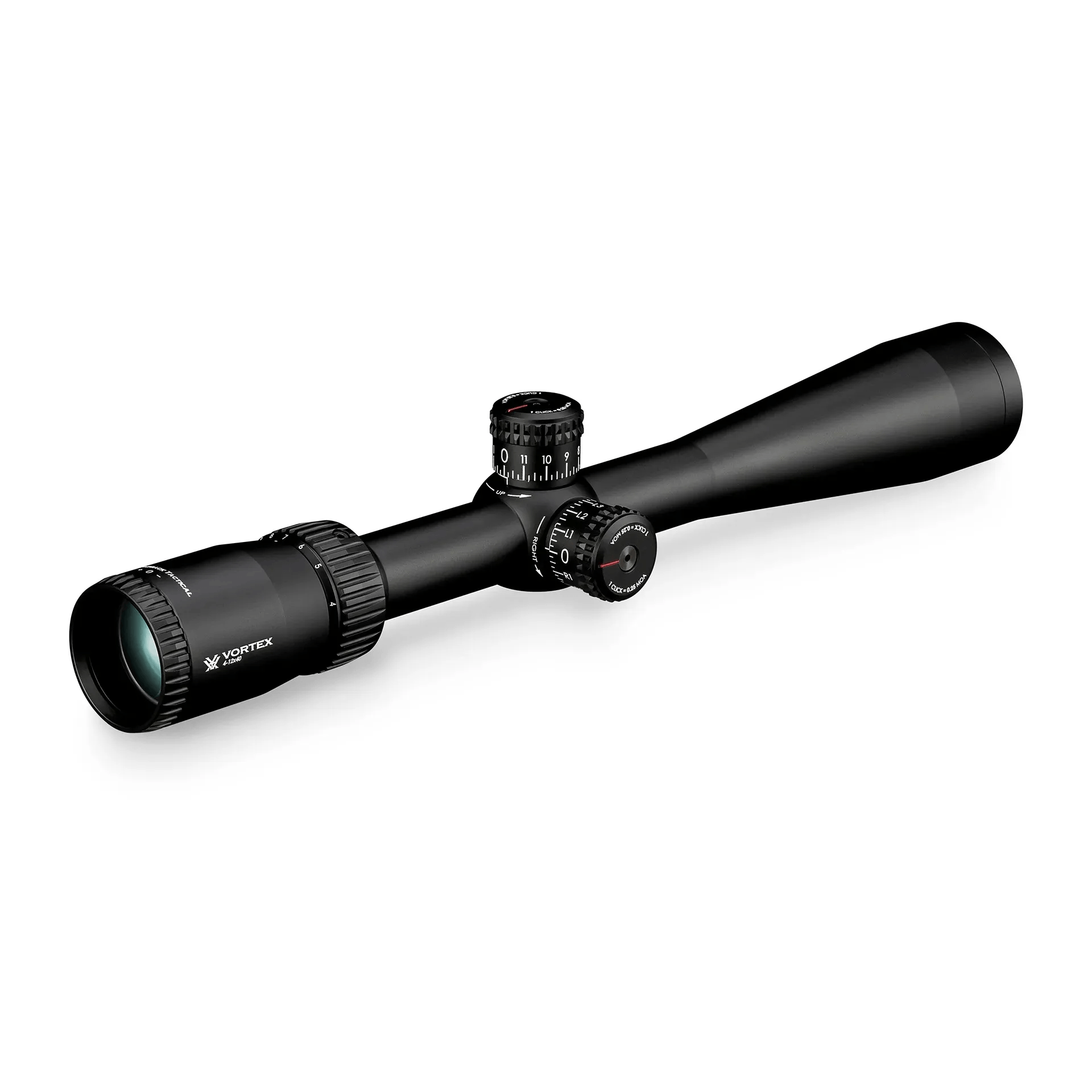

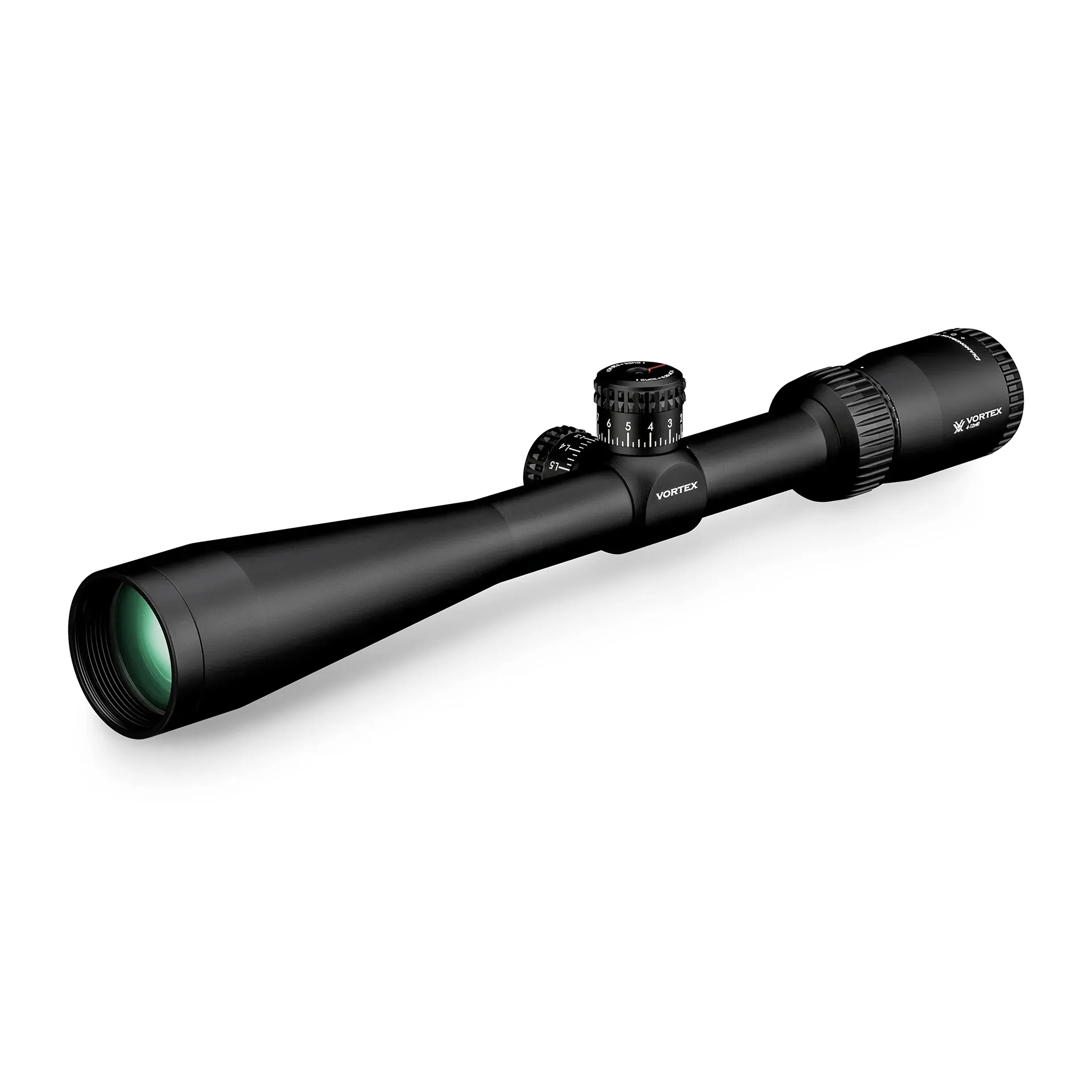

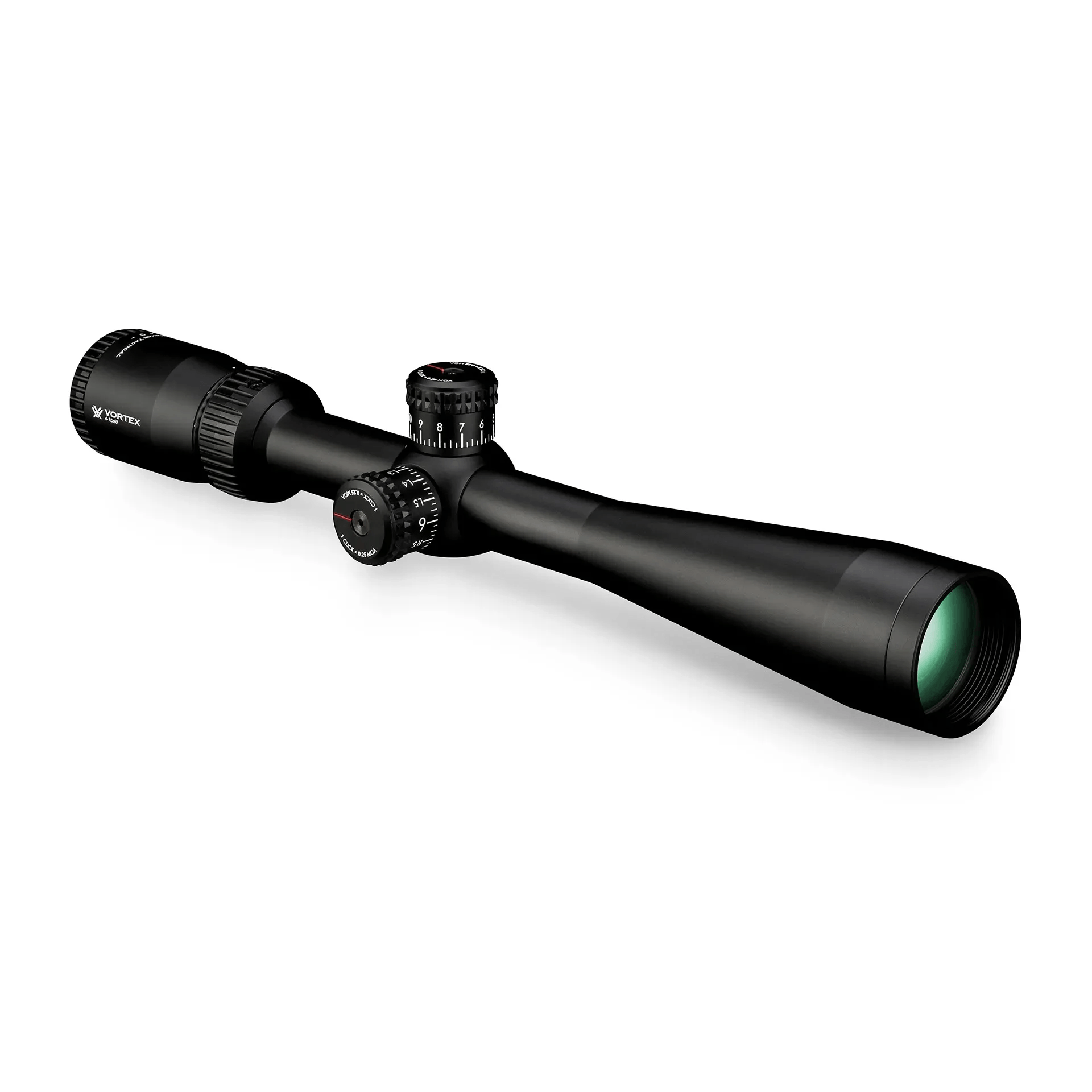

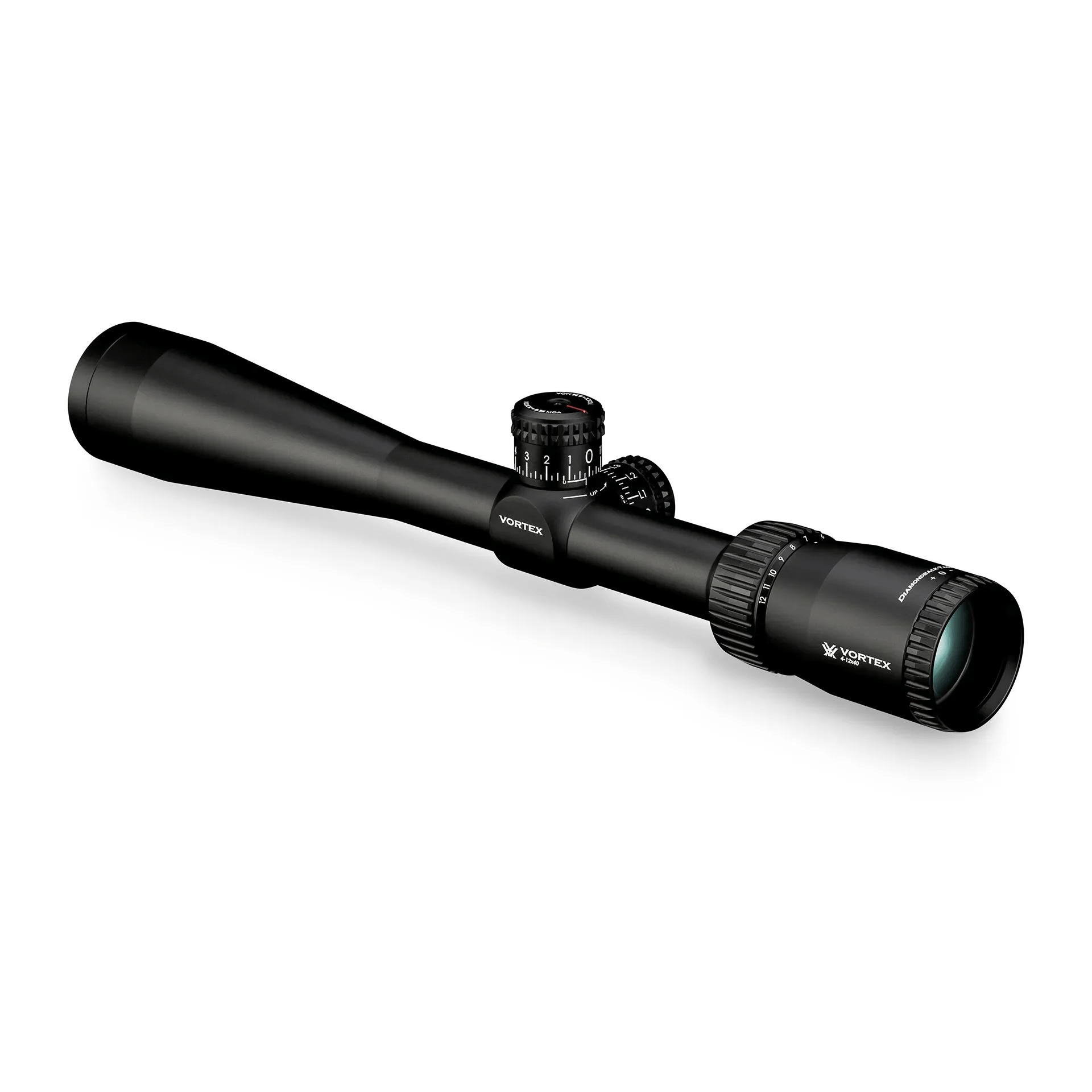

Diamondback Tactical 4-12x40mm Riflescope

0.0|0 Reviews
ID:

24437

$299.99$299.990% off
Color:Black* Requires selection
  • Size* Requires selection
  • Reticle* Requires selection

Description

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise - we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret's position.

Weight

Weight

17.5oz

Focal Plane

Focal Plane

Determines how the reticle behaves as you zoom.


  • First Focal Plane (FFP): Reticle grows/shrinks with zoom; holdovers stay accurate at all magnifications.

  • Second Focal Plane (SFP): Reticle size never changes; holdovers only accurate at one magnification.


First (FFP)
Second (SFP)
Max Windage Adjustment

Max Windage Adjustment

Maximum horizontal adjustment range for the reticle (left/right)

70 MOA

Max Elevation Adjustment

Max Elevation Adjustment

Maximum vertical adjustment range for the reticle (up/down).

70 MOA

  • Second focal plane reticle design maintains a consistent reticle appearance across all magnification levels for simple and reliable aiming reference
  • XD optical system enhances resolution and reduces chromatic aberration to deliver sharp edge to edge clarity with improved color accuracy
  • Fully multi coated lenses improve light transmission and reduce glare to produce bright high contrast images in low light environments
  • XR proprietary multi coating system increases overall optical performance by minimizing reflections on all air to glass surfaces
  • Aircraft grade aluminum construction provides a strong and rigid body that withstands recoil stress and harsh field conditions
  • Shockproof construction ensures durability by absorbing impact and recoil forces while maintaining internal optical alignment
  • Waterproof sealed design prevents moisture dust and debris from entering the optic for dependable performance in all weather conditions
  • Nitrogen purged internal system eliminates fogging and maintains clear visibility during temperature and environmental changes
  • Fast focus eyepiece allows quick and precise reticle focusing for improved target acquisition speed in dynamic shooting situations
  • Exposed tactical style turrets enable fast and accurate elevation and windage adjustments for precise field corrections
  • Precision glide erector system ensures smooth magnification transitions for stable tracking and consistent optical performance
  • Magnification rib design provides enhanced grip on the zoom ring for fast and controlled magnification changes during use
  • Radius bar turret indicator offers a clear visual and tactile reference for tracking elevation adjustments during shooting
  • Hard anodized matte finish reduces surface glare and improves durability while helping maintain a low visibility profile
  • Tube construction with one inch profile provides a balanced combination of strength weight and mounting versatility
  • Adjustable turret system supports precise point of impact corrections for improved shooting accuracy in varied conditions
  • Parallax control system reduces aiming error at distance for improved target clarity and focus consistency
  • Advanced optical engineering improves edge to edge sharpness for better visual detail and target identification
  • Wide field optical performance supports situational awareness and easier target tracking during shooting scenarios
  • Durable internal mechanism design ensures consistent performance and long term reliability under repeated use and recoil stress

Tech Specs

  • Adjustment Graduation
    0.25 MOA
  • Eye Relief
    3.9"
  • Features
    Waterproof, Fogproof, Shockproof
  • Focal Plane
    Second
  • Length
    14.1"
  • Magnification
    4-12x
  • Manufacturer Warranty
    Limited Lifetime
  • Max Elevation Adjustment
    70 MOA
  • Max Windage Adjustment
    70 MOA
  • Objective Lens Diameter
    40mm
  • Parallax Setting
    Fixed at 100yds
  • Travel Per Rotation
    12 MOA
  • Tube Diameter
    1"
  • Weight
    17.5 oz
