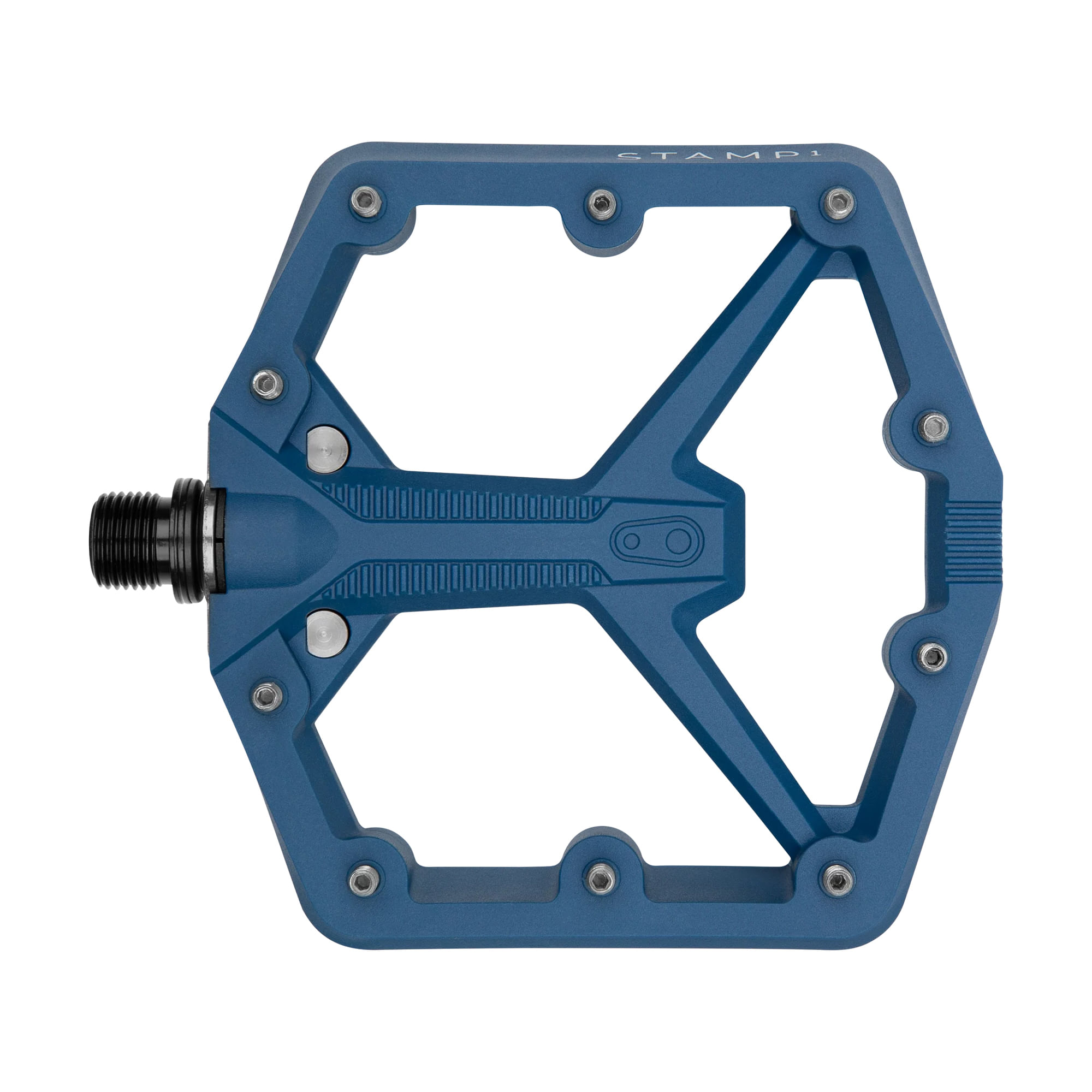

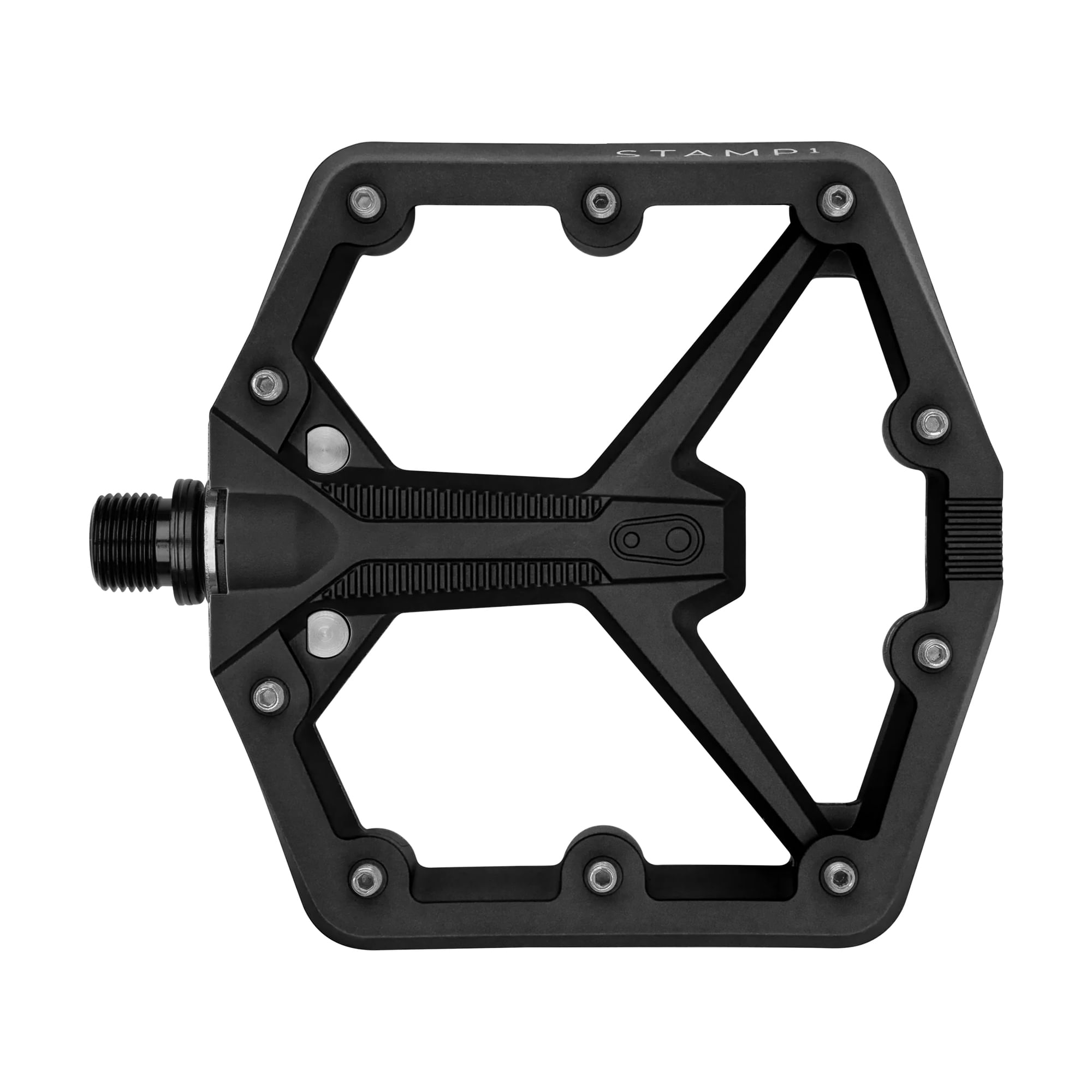

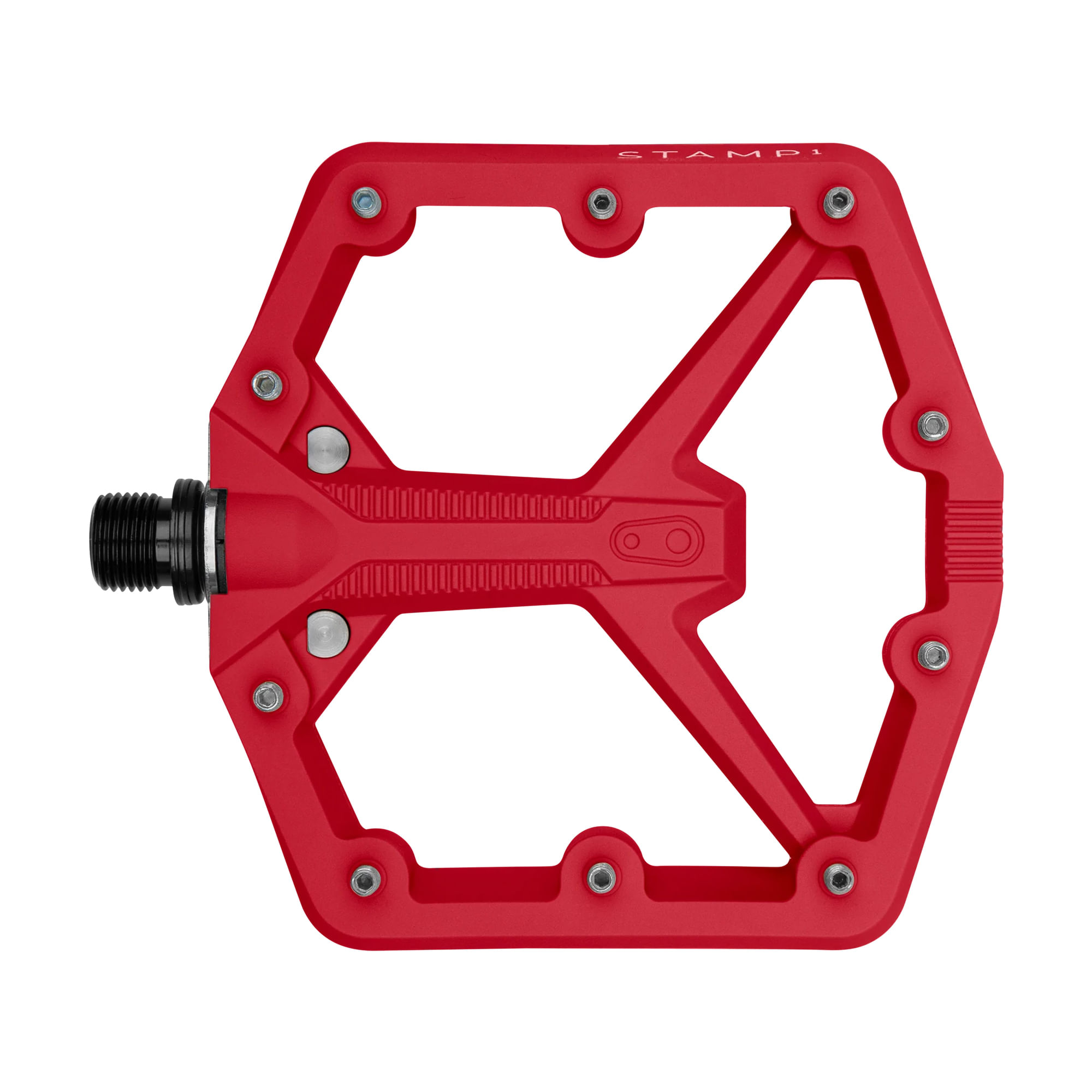

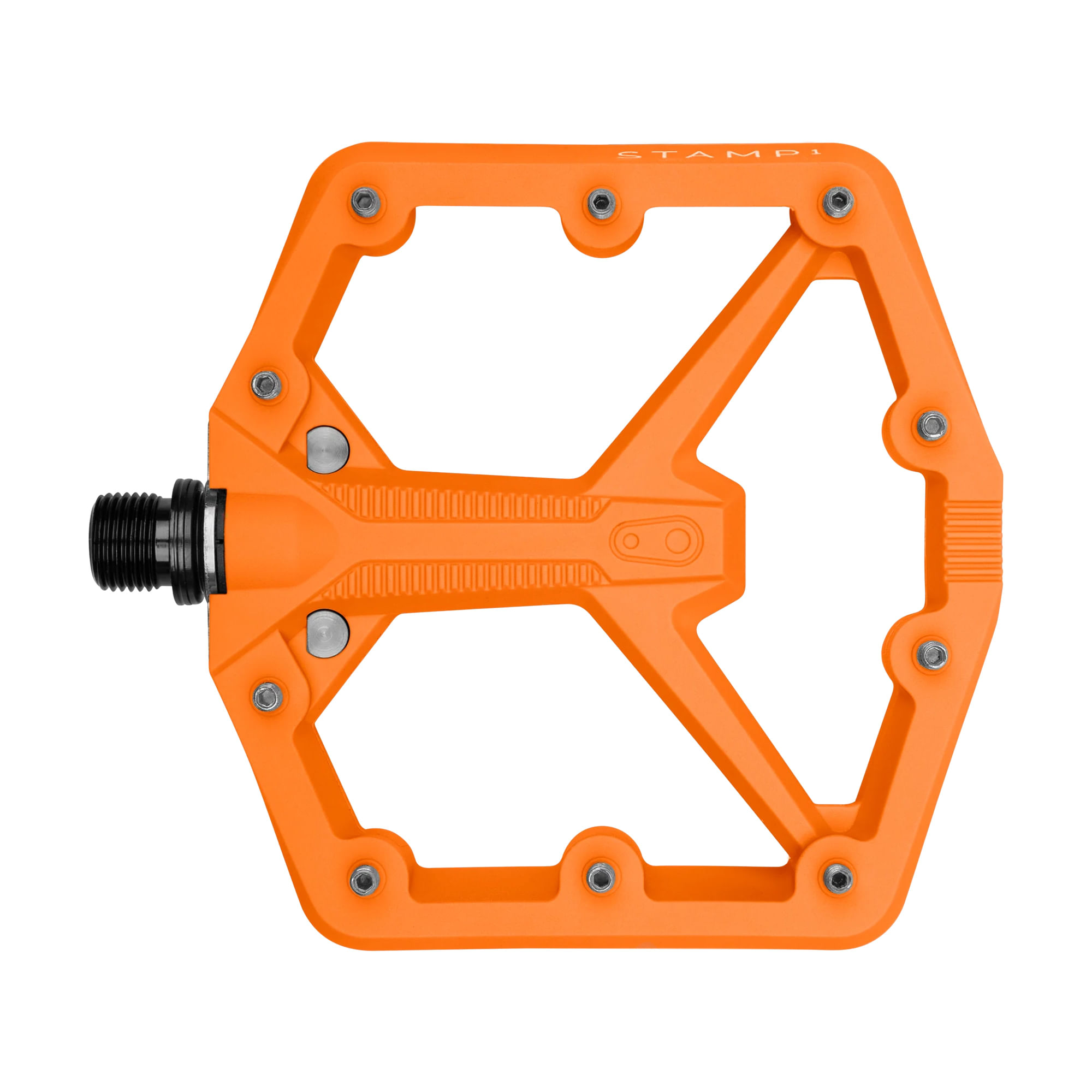

The new Stamp 1 Gen 2 builds upon the Stamp legacy with a true concave body design for enhanced on-trail confidence, trusted Igus internal components for durability, and a new one-piece pin design for maximum grip and easy pin replacement.
New one-piece replaceable traction pins, 10 per pedal
Optimal size-specific surface area
Thin, concave profile - 13.5mm to 15.5mm pedal body height
Upgraded, fully serviceable IGUS bearings & seal system
Outer Bearing Type: Igus LL-glide bearing
Pin Length: 23mm inner, 25mm outer
Spindle Material: Forged SCM 435 Chromoly Steel
Body Material: Composite
Traction Pins: 10 replaceable per pedal
Weight: 348g per pair
Footprint: 114mm x 111mm
Inner Bearing Type: Igus LL-glide bearing
Stamp Large recommended for shoe sizes: 10-15 (US M) // 43.5-49 (EU)
