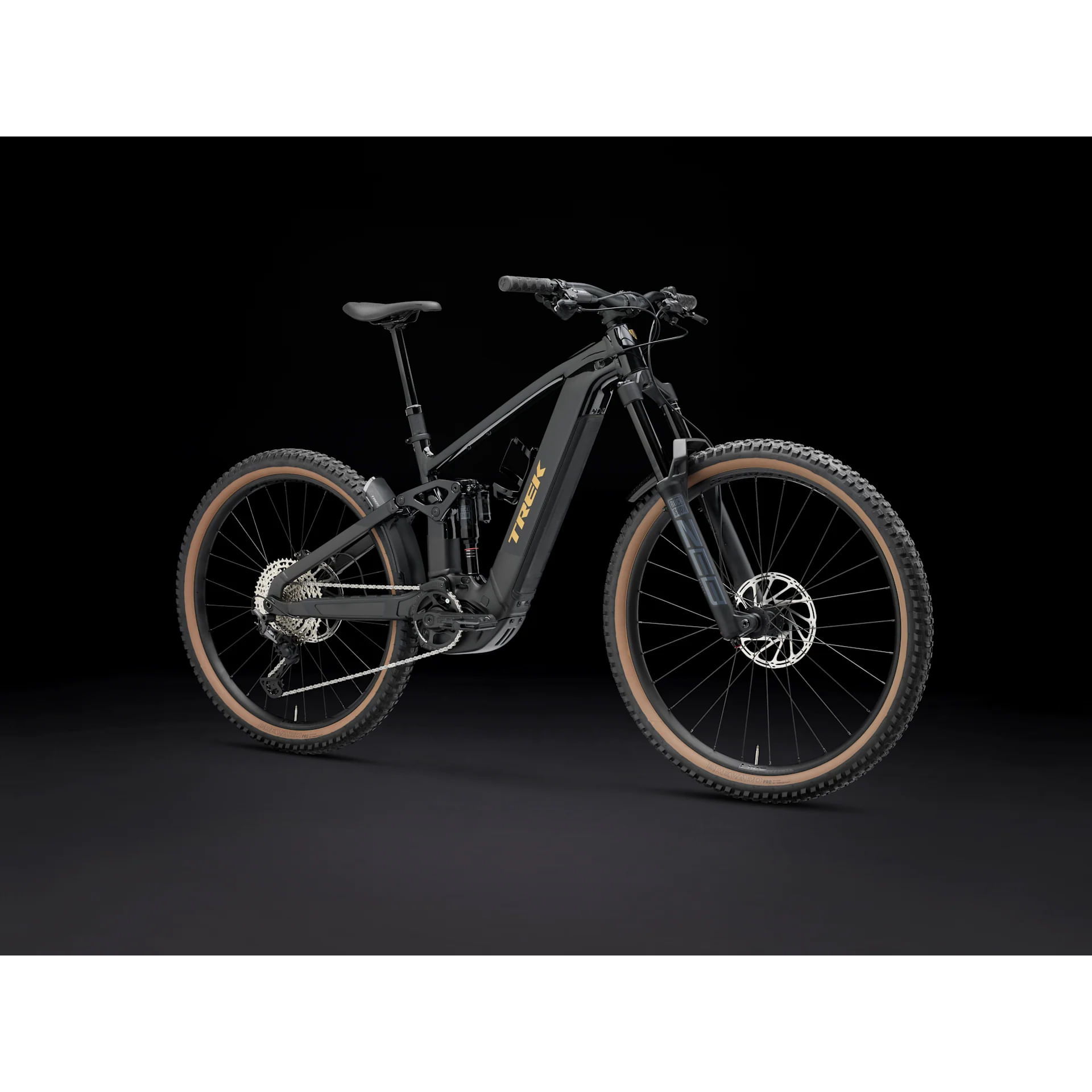

Rail+ 8 Gen 5 eBike - 2026

0.0|0 Reviews
ID:

3049438

$7,699.99$7,699.990% off
Color:Dark Star* Requires selection
  • Frame Size* Requires selection
  • Wheel Size* Requires selection
Memorial Day Sale UATC

Description

Rail+ 8 is an alloy enduro e-bike that packs in what you want most for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customize it for how and where you ride.

  • Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
  • The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
  • You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
  • The massive 800Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage
  • It's compatible with the Bosch PowerMore booster battery for going even further on epic adventures
  • Equipped with a 160mm RockShox ZEB Select fork with DebonAir spring, Motion Control damper and lockout, and a RockShox Deluxe Select+ RT shock

Tech Specs

  • E-Bike

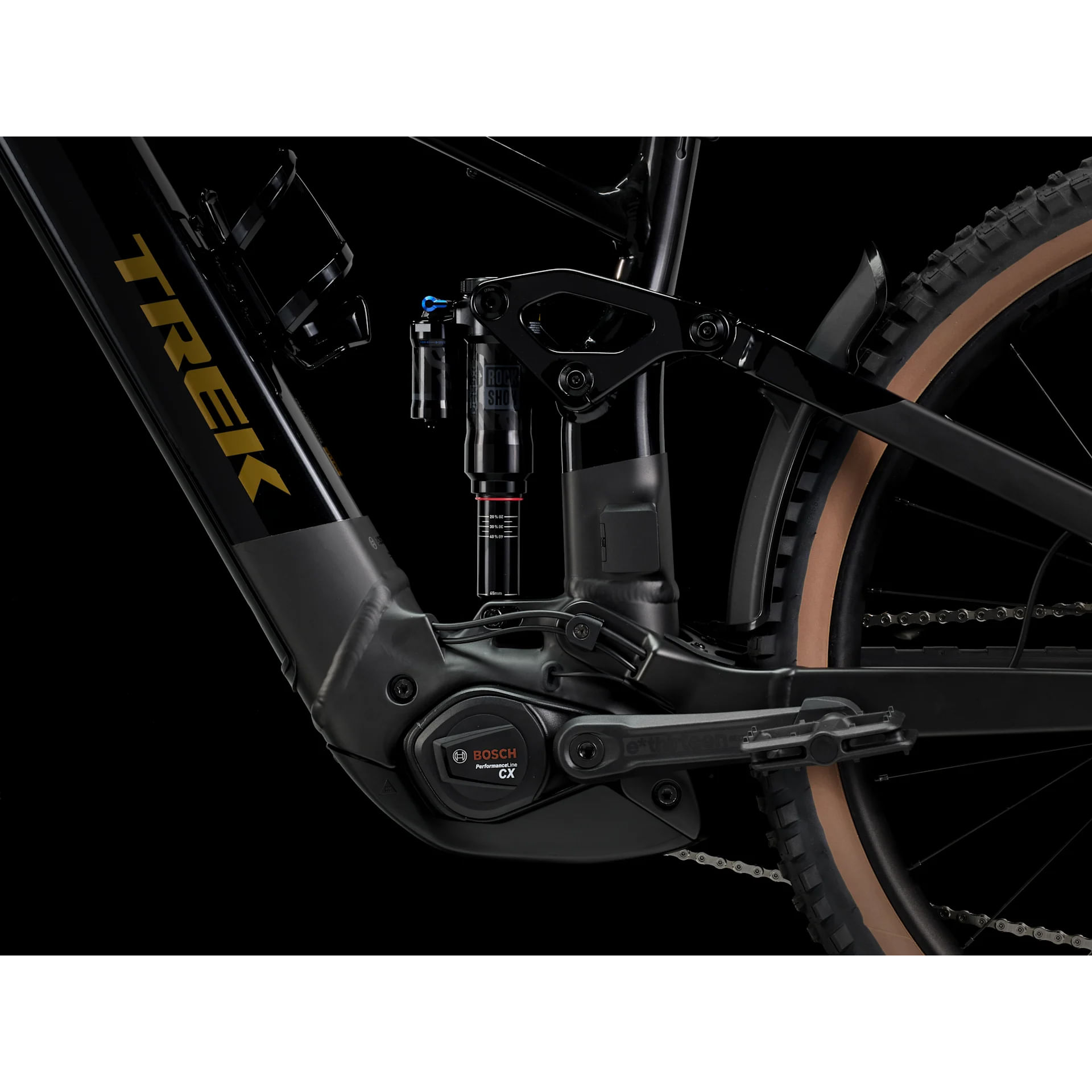

    • Motor
      Bosch Performance Line CX, 20 mph / 32 km/h max assist
    • Controller
      Bosch System Controller BRC3100, smart system
    • Charger
      Bosch standard 4A, 110V, smart system
  • Frameset
    • Frame
      Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
  • Suspension
    • Fork
      RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
    • Shock
      RockShox Super Deluxe Select+ RT, 205mm x 65mm
  • Brakes
    • Brake Rotor
      SRAM CenterLine, 6-bolt, round edge, 200mm
    • Brake
      SRAM DB 8 4-piston hydraulic disc

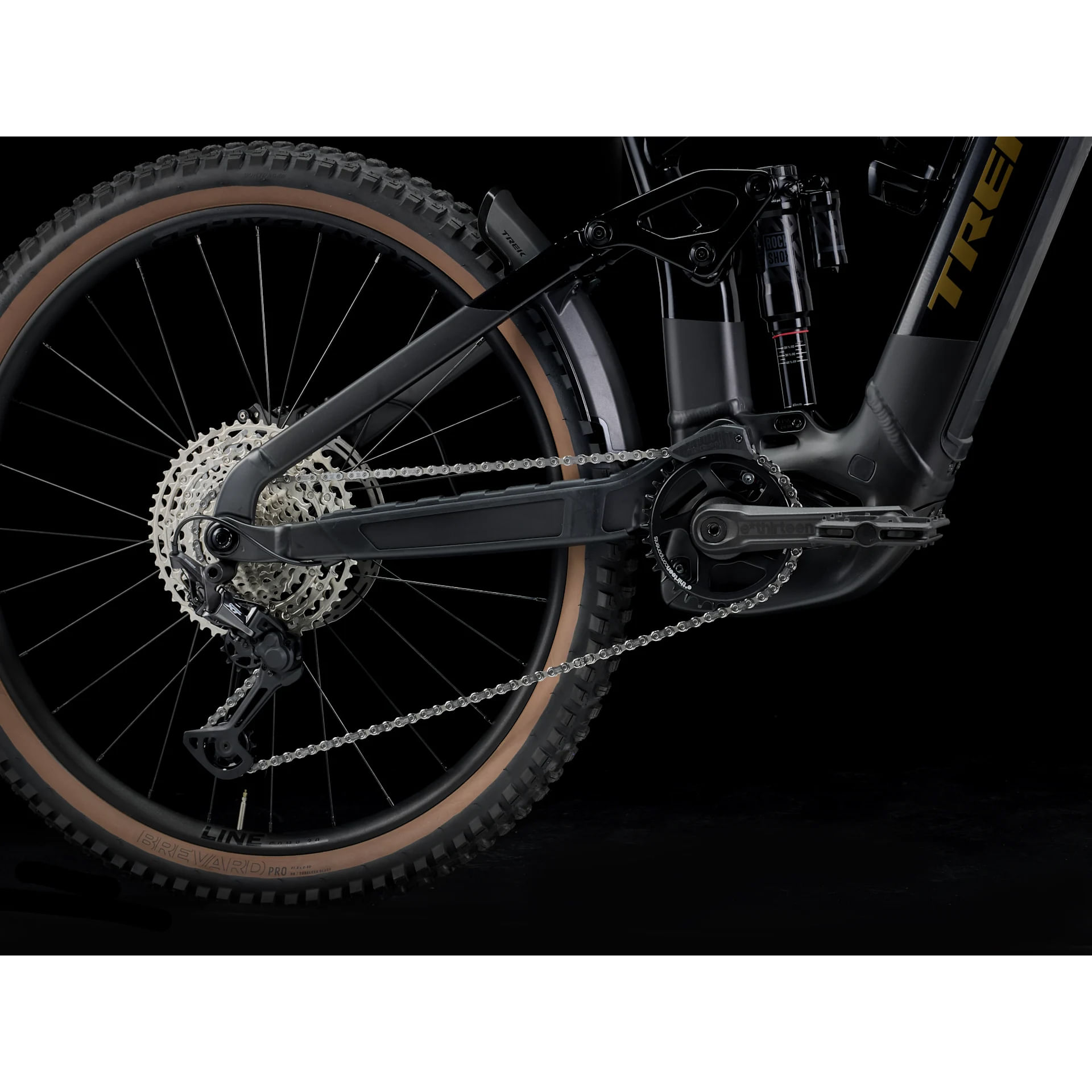

  • Drivetrain
    • Crank Arm
      E*thirteen E*spec Plus, 160mm length
    • Rear Derailleur
      Shimano XT M8100, long cage
    • Cassette
      Shimano Deore M6100, 10-51, 12 speed
    • Chain
      Shimano SLX M7100, 12 speed
    • Shifter
      Shimano SLX M7100, 12 speed
  • Wheels & Tires
    • Skewer Rear
      Bontrager Switch thru axle, removable lever
    • Tires
      Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50''
    • Tires
      Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50''
    • Wheel Rear
      Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5''

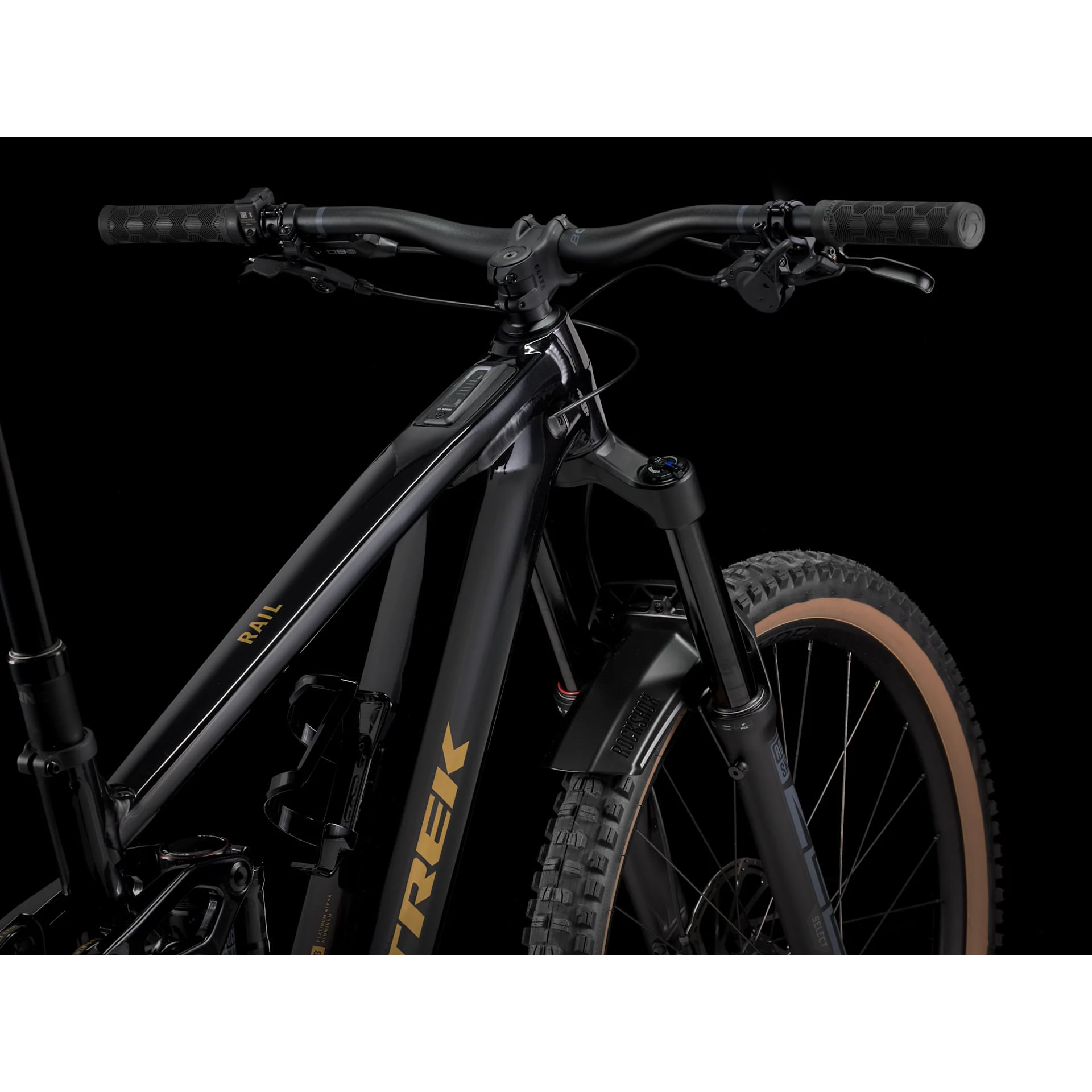

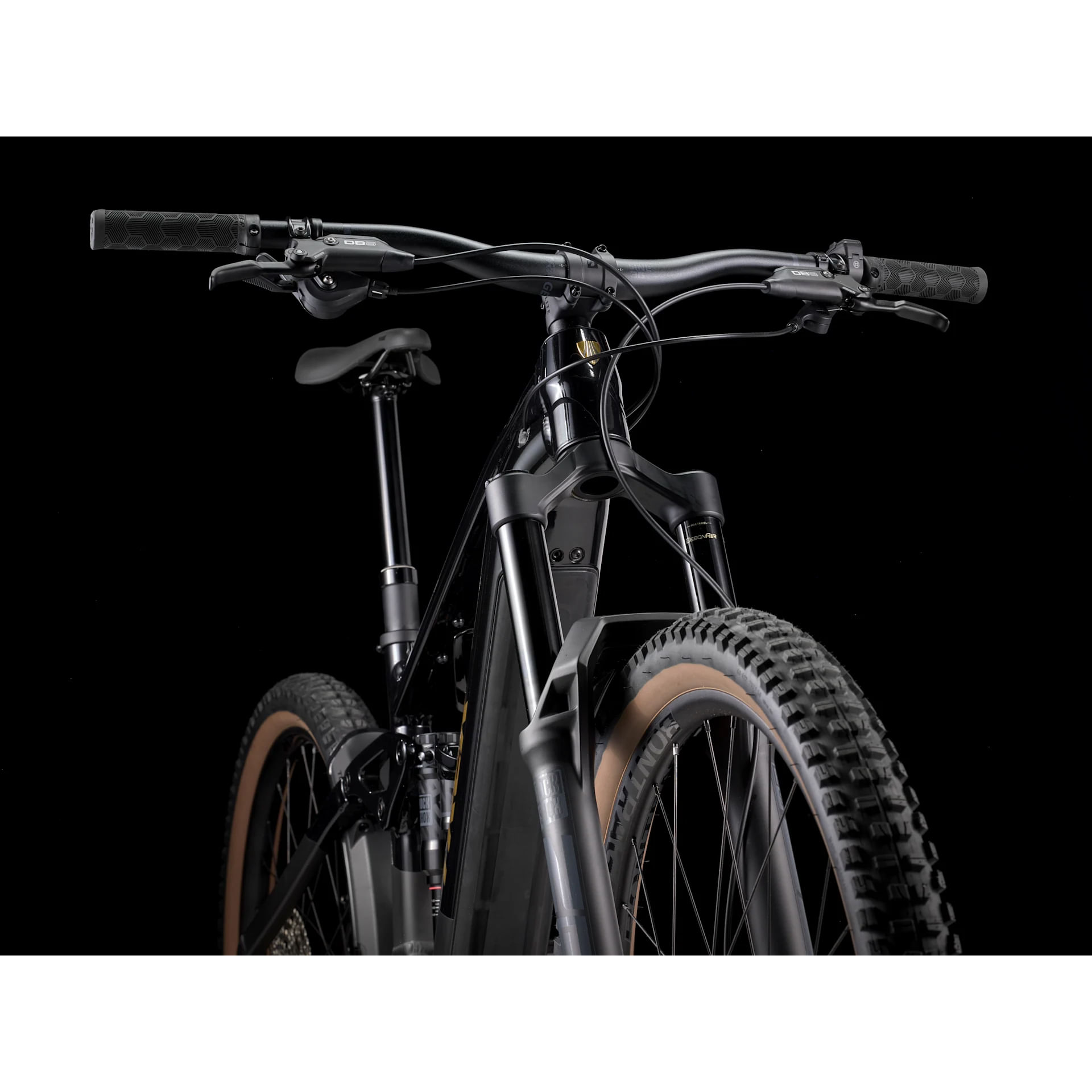

  • Cockpit
    • Seatpost (S)
      Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
    • Seatpost (M, L, XL)
      Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
    • Stem
      Bontrager Elite, 35mm, 0 degree, 45mm length
    • Handlebar
      Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
    • Grips
      Bontrager XR Trail Comp, nylon lock-on
    • Saddle
      Bontrager Verse P3, steel rails
    • Headset
      Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
  • Weight
    • Weight
      55.3 lbs
  • Other
    • Wheel Front (S)
      Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
    • Wheel Front (M, L, XL)
      Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
